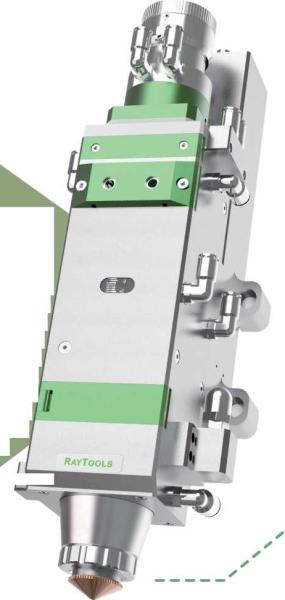

OEM Laser Processing Head For Fiber Laser Welding Machine 4000W 6000W
OEM Laser Processing Head For Fiber Laser Welding Machine 4000W 6000W
Specifications
Brand Name :
Raytool
Model Number :
BM114
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Can be negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Laser Power :
4000/6000W
Configuration :
100mm
Focus lens :
150mm ,200mm
Interface :
QBH,QD
Description

BM114 SERIES

Economical Medium and High Power Automatic Focusing Cutting Head

Power Rate:4000/6000W

♦High Efficiency Cooling

Collimation and focusing lenses are both water cooled. Increase air flow cooling for nozzle, effectively protect the nozzleand ceramic part and the lifetime.

♦Auto-focusing

Auto-focusing to reducing human intervention. MAX focusing speed lOm/min, Repeat accuracy 50 nm.

♦High-Speed Piercing & Cutting

Pierces up to 25 mm mild steel in 3 sec @3000W

♦Large Clear Aperture

35mm clear aperture, effectively reducing stray light interference, guarante cutting quality and working life.

♦Portable and Durable

5.6KG , compact structure, reduce the mechanical requirements.

♦High Power Rating

Rated to 6.0 kW , with D37 lens group, and more strength to cut thick plate.

Product specification

Auto focus
Range +10~-14mm
Acceleration Max 10 m/s2
Velocity Max 10 m/min
Accuracy 50μm
Fiber Interface QBH,QD
Clear 35mm
Cover glasses
Collimation side Φ38mm * 1.5 mm
Focusing side Φ37mm *4.1 mm
Collimator Focal length 100mm
Focusing Focal length Aperture 150mm, 200mm
Nozzle Styles

Single, Double, Custom

Diameter of Nozzle tip

0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,2.5mm,3.0mm,3.5mm,

4.0mm, 4.5mm, 5.0mm
Assist gas pressure ≤30 bar
Weight ~5.6kg
