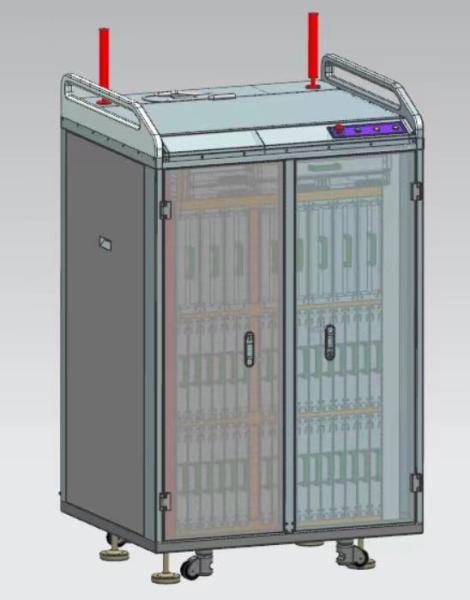

10kw OEM Laser Machine Single Mode CW Fiber Laser Source
10kw OEM Laser Machine Single Mode CW Fiber Laser Source
Specifications
Brand Name :
CS
Model Number :
CS-YTSM10kW
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Can be negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Laser model :
CS-YTSM10kW
Laser brand :
CS
The warranty time :
1 year
Central Wavelength :
1080nm
After-sales service :
Solve online
Description

Product introduction

DK-YTSM10Kw, quasi-single-mode fiber laser,adopts all-fiber structure, compact structure, no need maintenance, with long-term stable operation. Due to the use of the new pumping scheme, the DK-YTSM series can still maintain a quasi-single-mode output of M2≤2.5 under ultra-high power of 10-20kW. This series of lasers are featured in small size and light weight, can work normally in a wide voltage range, and can adapt to environments such as vehicle/airborne.

Product specification

Optical Parameters YTSM10kW
Operation Mode CW/Modulation
Polarization State Random
Beam Quality(M2) ≤ 2.5
Output Power ≥ 10000W
Output Fiber Diameter 30 µm
Power Range 10%~100%
(RMS) Output Power Instability ≤ 3 %
Center Wavelength 1080 ± 5nm
(RMS)Spectral Width ≤ 8nm @3dB
Indicated Light Wavelength 635nm
Indicated Light Power > 0.2mW
Operating Voltage 100 - 135 VDC
Laser Power Consumption ≤ 40kW
QBH Output Fiber Length 2.5 m
Cooling Water Cooling
Water flow ≥130 L/min
Dimensions 830mm×440mm×570mm
Weight ≤ 285 kg
Operating Temperature 10℃ ~ 40℃
Storage Temperature -15℃ ~ 60℃
Relative Humidity 20%-80%
