Specifications
Brand Name :
CS
Model Number :
CS-1500W
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Can be negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Laser model :
CS-1500W
Laser brand :
CS
The warranty time :
1 year
After-sales service :
Solve online
Description

Product introduction

The product has various compatibility and control modes, which can switch between pulse and continuous mode, and simultaneously handle the. processing tasks of two different lasers The pulse width waveform is flexible and adjustable, the heat dissipation is fast, and the electro-optical conversion rate is over 30%, which is another option for the long pulse width , high peak power applications.

Product features

♦High beam quality

♦Alternative lamp pump lasers

♦High photoelectric conversion efficiency

♦Pulse and continuous working modes

♦High pulse power, stable power, and high peak power

Product application

♦Alternative of Light-Pumped YAG Lasers

♦Spot/Seam Welding

♦Ceramics Cutting

♦Precision Welding /Cutting

♦Electronic Parts Processing

♦Power Battery Welding

♦Soldering

♦PCB Welding

Product specification

♦Optical characteristics

N Characteristics Value (Range) Unit
1 Central Wavelength 1070-1090 nm
2 Spectral width @ 3dB < 5 nm
3 Max. Avg Power CW Mode 300 W
Pulsed Mode 150 W
4 Max. Peak Power 1500 W
5 Max. Pulse Energy 15 J
6 Operation Mode Pulsed / CW /
7 Power Turning Range 10 - 100 %
8 Pulse Duration 0.02-50 ms
9 Operation Frequency ≤5 kHz
10 Duty Cycle ≤50 %
11 Laser switching ON/OFF time < 10 μs
12 Output Power Instability < 3 %
13 Beam Quality (M2) < 1.2 /
14 Polarization Random /
15 Red Guide Laser Power 1-2 mW

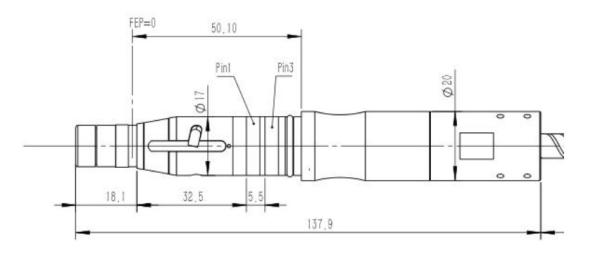

16 Output Fiber Termination QCS or QBH(Default) /
17 QBH Beam Divergence <120 mrad
18 QCS collimated beam diameter(4σ) 6±0.5 mm
19 Delivery Fiber Length 5 m
20 Output Fiber Core Diameter 14 μm
CS QCW OEM Laser Machine Fiber Laser CW Mode
Peak Power / %

♦Electrical characteristics

N Characteristics Value (Range) Unit
21 Analog Power Control 1-10 V
22 Input AC Voltage 220 VAC
23 Laser Operating Current < 10 A
24 Maximum Power Consumption <1680 W
♦Environmental requirements
N Characteristics Value (Range) Unit
25 Operating Ambient Temperature Range 0 - 40 ℃
26 Storage Temperature -10 ~ 60 ℃
27 Cooling Method Forced Air /

♦Structural characteristics

N Characteristics Value (Range) Unit
28 Laser Color Red /

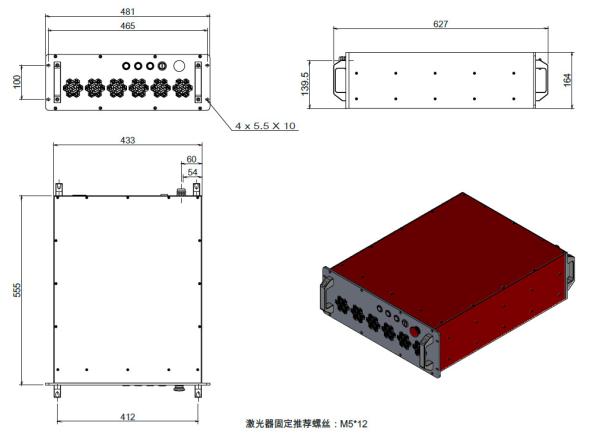

29 Laser Dimensions 555*433*164(not i nclude handle) mm
30 QBH Dimension Standard /

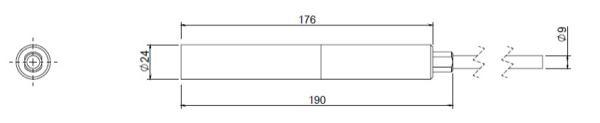

31 QCS Dimension Φ24*190(Optional) mm
32 Net Weight <40 kg
