500W High Power Fiber MOPA OEM Laser Machine Cleaning Series
500W High Power Fiber MOPA OEM Laser Machine Cleaning Series
500W High Power Fiber MOPA OEM Laser Machine Cleaning Series
500W High Power Fiber MOPA OEM Laser Machine Cleaning Series
500W High Power Fiber MOPA OEM Laser Machine Cleaning Series
500W High Power Fiber MOPA OEM Laser Machine Cleaning Series
500W High Power Fiber MOPA OEM Laser Machine Cleaning Series
500W High Power Fiber MOPA OEM Laser Machine Cleaning Series
Specifications
Brand Name :
CS
Model Number :
CS-500W
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Can be negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Laser model :
CS-500W
Laser brand :
CS
The warranty time :
1 year
After-sales service :
Solve online
Description

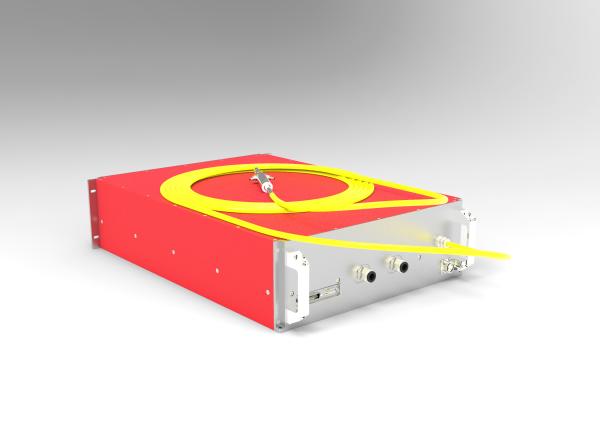

Product introduction

500W high power MOPA laser cleaning series have a built-in isolator and small QBH/QCS output, which greatly reduces the size and weight of the cleaning head, while maintaining the excellent anti-high-reflection performance of the laser, and has outstanding advantages in laser rust removal, paint removal and other cleaning applications.

Product features

♦Large pulse energy

♦Main application: laser cleaning

Product specification

♦Optical characteristics

N Characteristics Parameter value Unit
1 Center wavelength 1060-1080 nm
2 Spectral width(FWHM) < 30 nm
3 Maximum pulse energy 12.0 mJ
4 Output Power 500 W
5 Power adjustment range 0-100 %
6 Frequency adjustment range 1-3000 kHz
7 On/off light response time < 100 μs
8 Pulse Width 10-500 ns
9 Output power stability < 3 %
10 BPP <5 mm mrad
11 Polarization direction Random /
12 Resist high reaction yes /
13 Indicator light 1-3 mW
14 Divergence angle (full width) ＜200 mrad
15 Delivery cable length 10 m

♦Electrical characteristics

N Characteristics Parameter value Unit
16 Power supply voltage 220 VAC
17 Working current < 8 A
18 Power consumption <1760 W

♦Environmental requirements

N Characteristics Parameter value Unit
19 Operating temperature 0 - 40 ℃
20 Storage temperature -10 - 60 ℃
21 Cooling Method Water cooling /
22 Water chiller set temperature 28 ℃
23 Water chiller flow ≥8 L/min
24 Water pipe diameter 10 mm
25 Water chiller cooling capacity ＞1.5 kW

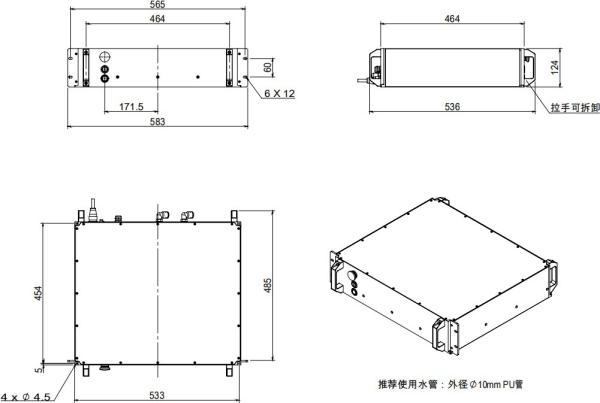

♦​Structural characteristics

N Characteristics Parameter value Unit
26 Laser dimension 583*454*124 mm3
27 Output QBH /
28 Net weight <35 kg

♦The pulse width corresponds to the power reduction frequency point and the maximum single pulse energy

N

 Pulse width (ns) Power reduction frequency (kHz) Upper frequency limit (kHz) Max single pulse energy (mJ)
1 10 800

3000


 0.63
2 30 300 1.67
3 60 150

2000



 3.33
4 80 120 4.17
5 100 80 6.25
6 150 60

1000


 8.33
7 200 55 9.00
8 300 50

400


 10.00
9 400 50 10.00
10 500 41 12.00

500W High Power Fiber MOPA OEM Laser Machine Cleaning Series

The definition of threshold frequency in the pulsed fiber laser
