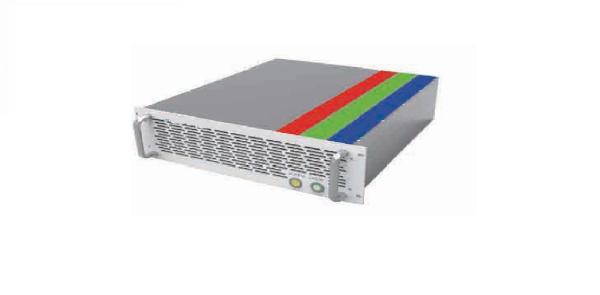

EB-DDLM-100A CW Pulsed Fiber Laser for Brazing
EB-DDLM-100A CW Pulsed Fiber Laser for Brazing
Specifications
Brand Name :
CS
Model Number :
EB-DDLM-100A
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Can be negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Product name :
Pulsed Fiber Laser
Laser Brand :
CS
After Warranty Service :
Online support, Field maintenance and repair service
Local Service Location :
None
Description

EB-DDLM-100A

Product Features

♦ High Efficiency

♦ Red Indicator

♦ Long lifetim

♦ Compact Size

Product application

♦ Plastic Welding

♦ Brazing

Product specification

Optical
Center Wavelength nm 915/976
Wavelength Tolerance nm ±20
Output Power W 100
Output Power Unstability % 2
Power Tunability % 10-100
Fiber Core μm 200
Numerical Aperture NA 0.22
Fiber Connector - SMA 905
Fiber Length m 5
Aming Beam
Indicator Wavelength nm 650
Output Power mW ≤2
Eletrical
Modulate Frequency - CW/Modulate
Operation Mode Hz 1~10k
Input Voltage - 220VAC±10%,50/60HZ
Input Current A ＜10
Thermal
Operating Temperature ℃ 5-40
Storage Temperature ℃ -25-55
Environmental Humidity - Max70%@25℃
Cooling System - Air Cooling(TEC)
Others
Dimension mm 490X484X133
