Plastic Mould Surface Dust Laser Cleaning Metal 200w 500w Machine Long Life
Plastic Mould Surface Dust Laser Cleaning Metal 200w 500w Machine Long Life
Plastic Mould Surface Dust Laser Cleaning Metal 200w 500w Machine Long Life
Plastic Mould Surface Dust Laser Cleaning Metal 200w 500w Machine Long Life
Specifications
Brand Name :
Keyi
Model Number :
KY-LCR
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Supply Ability :
200 sets per month
Packaging Details :
standard wooden box
Product :
laser high speed descaling machine
Laser wavelength :
1064 nm
Cleaning Type :
Burn-Off / Thermal System
Laser head :
Galvonometer
Scan Width :
10-80mm
Type :
handheld
Description

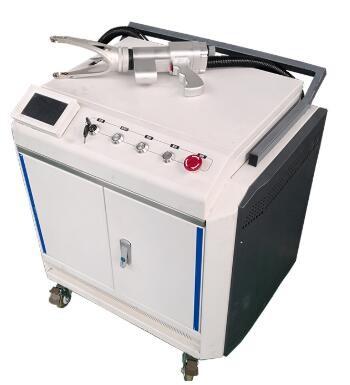

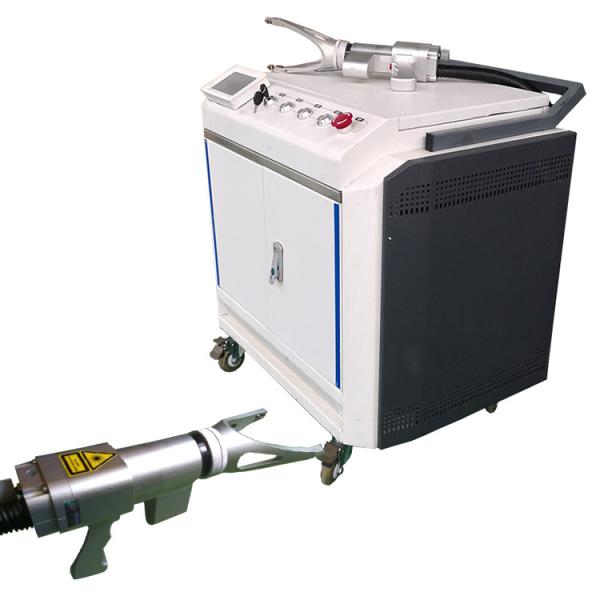

Plastic mould surface dust 200w 500w laser cleaning machine

Machine introduction

Laser cleaning Machine is a new generation of industrial surface cleaning laser system. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.

Contaminant

The bonding force between the contaminant and the surface is mainly covalent bond, double dipole, capillary action, hydrogen bond, adsorption force and electrostatic force. Among them, capillary force, adsorption force and electrostatic force (Figure 1) are the most difficult to destroy. Note: capillary force from a thin liquid layer (such as atmospheric humidity) in the particle and the surface of the primary layer and the small gap between the cohesion; adsorption force is the main adhesion of micron pollutants

Plastic Mould Surface Dust Laser Cleaning Metal 200w 500w Machine Long Life

Application industry:

Plastic Mould Surface Dust Laser Cleaning Metal 200w 500w Machine Long Life

Specification:

Model

60

100

200

500

Laser source

Fiber

Fiber

Fiber

Fiber

Laser Power

60W

100W

200W

500W

Fiber cable L

3 M

3 M

5 M

10M

Pulse Energy

1.5 mJ

1.5 mJ

10 mJ

50 mJ

Wavelength

1060nm

1060nm

1060nm

1060nm

Frequency

50-500KHz

50-200KHz

20-50KHz

10-50KHz

Clean speed

≤5 M²/Hour

≤10 M²/Hour

≤15 M²/Hour

≤50 M²/Hour

Scann speed

0-7000mm/s

0-7000mm/s

0-7000mm/s

0-7000mm/s

Cooling

Air cooling

Air cooling

Water cooling

Water cooling

Dimension

450*350*500

500*400*550

900*600*1100

1600*1100*1800

Weight

30Kg

40Kg

120Kg

300Kg

Beam width

10-100mm

10-100mm

10-100mm

10-100mm

Optional

Manual

Manual

Manual

Manual

Temperature

5-40 ℃

5-40 ℃

5-40 ℃

5-40 ℃

Voltage

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ

Single Phase 220V, 50HZ
