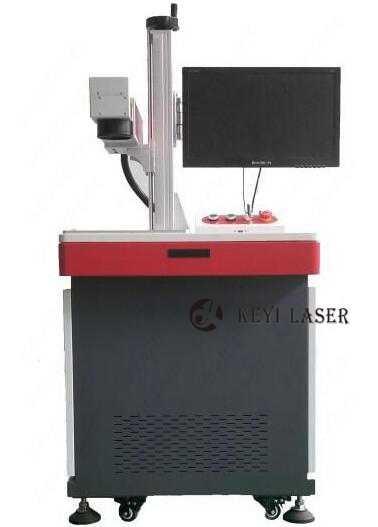

Destop Fiber Laser Metal Engraving Marking Machine 0.5mm for Stainless Steel Gold Silver
Destop Fiber Laser Metal Engraving Marking Machine 0.5mm for Stainless Steel Gold Silver
Specifications
Brand Name :
Keyi
Model Number :
KY-M-FB
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negptiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000 sets per month
Delivery Time :
5-7 working days
Packaging Details :
standard export wooden package
Wavelength :
1064nm
Laser Resource :
Raycus IPG
Marking Speed :
0-7000（mm/s）
Marking Size :
200*200mm(others for Optional
Warranty :
2 years
Color :
Red And Black
Description

Metal Fiber Laser Marking Machine Destop Engraving 0.5mm For Stainless Steel For Gold And Silver

Characteristc:

1 . High-tech,and it can make on both metal and non-metal

2 . Self-clean system

3 . Lifetime over 100000hours

4 . Accuracy and speed is very well

5 . This Fiber laser marking machine price is economic and reasonable

Applicable Material:

Laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminum, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.

Application:

1) Film Cutting;

2) Precission Marking;

3) Texturing Treatment;

4) Anodic Aluminum Etching;

5) Precesion Cleaning ;

6) Colorful Marking;

7) Surface Heat;

Technical Parameters:

Laser Characteristics
Model KY-M-FB20P-M
Laser Resource MOPA JPT M1
Beam Quality <1.3
Delivery Cable Length 2m
Maximum Pulse Energy 0.5mJ
Full Power Repetion Rate Range 40-2000kHz
Pulse Repetion Rate Range 1-2000KHZ
Pulse Width 6-250ns
Longtime Average Power Stability <5%
Cooling method Air cooled
Supply DC Voltage(VDC) 24V
Current Consumption <8A
Full Power Consumption 120W
Central Emission Wavelength 1064nm
Emission Bandwidth@3dB <15nm
polarization Random
Anti-Reflection Protection YES
Output Beam Diameter 7±0.5(mm)
Output Power Tuning Range 0-100%
Operation Temperature 0-40℃
Storage Temperature -10-60℃
Laser Safety Level ClassIV
System Protection Rating IP54
Marking Parameters
Marking Range 45～300(mm)＠EFL=80-450(mm)
Marking Speed 0-7000(mm/s)
Marking depth / Roman Type , Character Height 1mm 0.01-2(mm)depenging on the material
Marking Content/ Character Types Text/letters/numbers/symbols/graphics/design/logo, etc. Date/time/QR code / Barcode/ batch number/serial number, etc. real-time number coding
Minimum character 0.1(mm)
Marking Line width 0.01-0.2(mm) depending on the material
Repetion Precision ±0.003(mm)
Other Information
Delivery Cable Length 3(m)
Pump laser life >50000(hrs)
Interface Model DB25
Cooling Air cooling
Power 220±5%(V),50±5%(Hz)
Power Consumption <0.12(KW)
Waranty 2 years

Sample Pictures:

Destop Fiber Laser Metal Engraving Marking Machine 0.5mm for Stainless Steel Gold Silver

Destop Fiber Laser Metal Engraving Marking Machine 0.5mm for Stainless Steel Gold Silver
