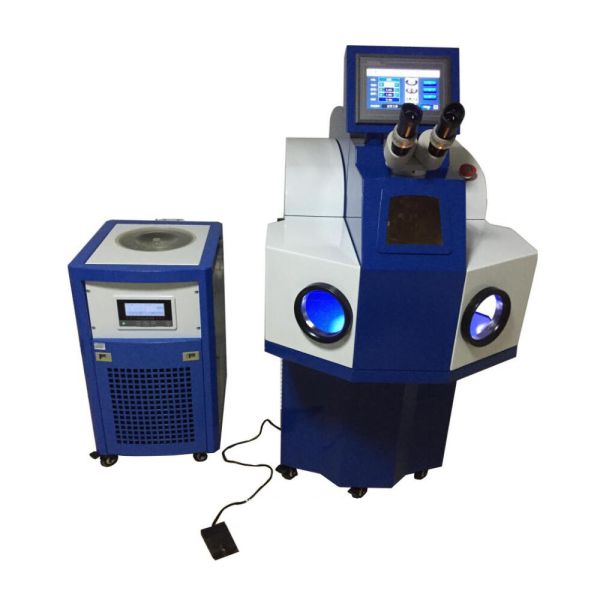

Industrial Small Laser Welding Machine / 200W Spot Jewelry Laser Welder
Industrial Small Laser Welding Machine / 200W Spot Jewelry Laser Welder
Specifications
Brand Name :
keyi
Model Number :
KY-M-SW200
Certification :
CE
Place of Origin :
Hubei
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000/set per month
Delivery Time :
5-7 working days
Packaging Details :
wooden packing
Weight :
55kg
laser welding depth :
0.1-3.0mm
Wavelength :
1064nm
Focal Spot Diameter: :
0.2-3mm
Pulse Widt :
0.1-20ms
Usage :
jewelry welding machine
Color :
Red
Description

200W Laser Spot Welder for Sale Jewelry Laser Welding Machine

Parameters:

Product name Laser welding machine
Maximum average power 200W
Laser wavelength 1064nm
Max Pulse energy 120J
Laser welding depth 0.1-3.3mm
Pulse width 0.3-20ms
Batter, laser welding frequency 0.5-20Hz
Adjustable range of spot size 0.2-3mm
Control systemIllumination Industrial computerLED Lighting inside chamber
Machine Power consumption ≤5.5 k w
The demand for electricity 110V±0%/60Hz/15A
Component Dimensions

Main Unit 110*125*65mm

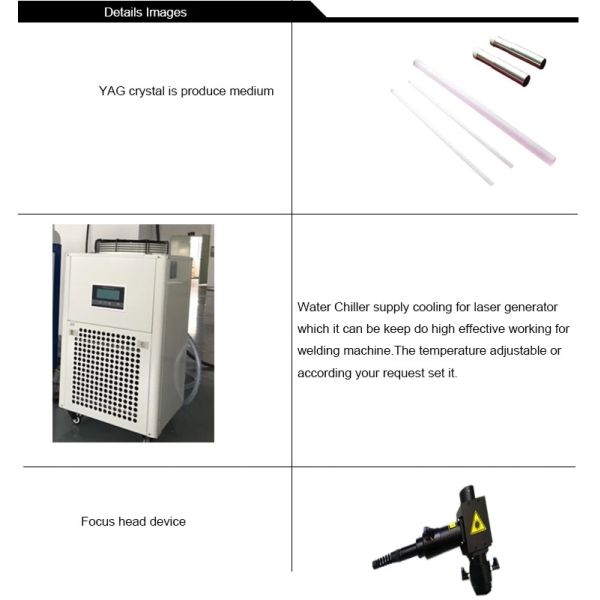

Water Chiller 60*45*70

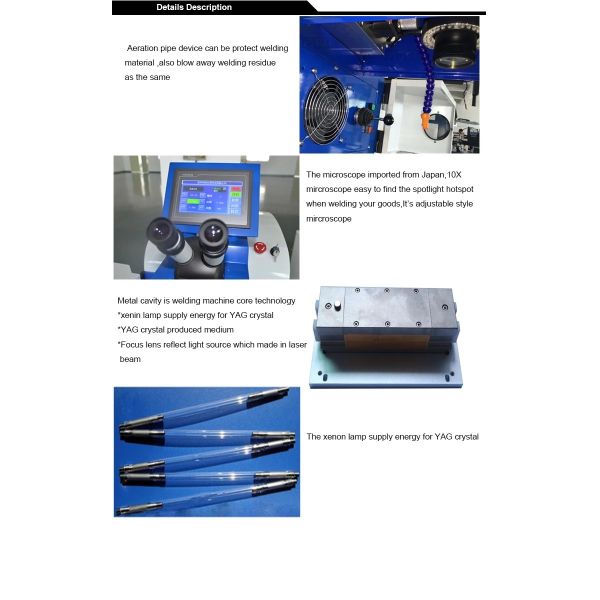

Supplies Xenon lamp, filter, protection lens, argon gas
Installation environment Installation Location 4 square meters
Environment clean, no dust or less dust
Temperature 55℉ (13℃) to 82℉(28℃)
Humidity 5% to 75%non-condensing
Power 110V 60HZ AC,.15A
Features:

Mainly used for gold and silver jewelry to fill holes and welding slag. Machine has a wide application of uses and highly efficient

1.Laser spot welding is one of laser welding technology application's most important aspects, spot welding process is heat conduction, the laser radiation heats the surface driven by the internal diffusion and heat transfer by controlling the laser pulse width, energy, peak power and repetition frequency and other parameters,so that the piece melts and forms a specific pool.

2.Laser spot welding machine has the character of high speed, high efficiency, depth, non-deformation quality ,and thermal impact on small area . High quality welding, weld formation, spot clean, efficient and environmentally friendly, without solder wire and so on.

3.The machine is mainly used for gold and silver ornaments of the fill hole and the spot trachoma, widely used in spot welding of micro precision parts, such as jewelry,batteries, IC lead, watch springs, tubes, electron gun assembly, and other areas.
Industrial Small Laser Welding Machine / 200W Spot Jewelry Laser Welder
Industrial Small Laser Welding Machine / 200W Spot Jewelry Laser Welder
Industrial Small Laser Welding Machine / 200W Spot Jewelry Laser Welder
