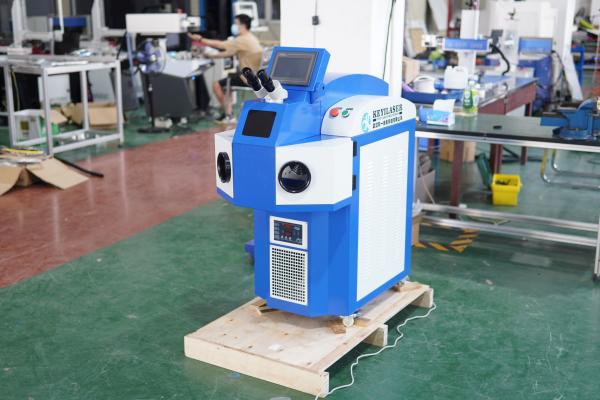

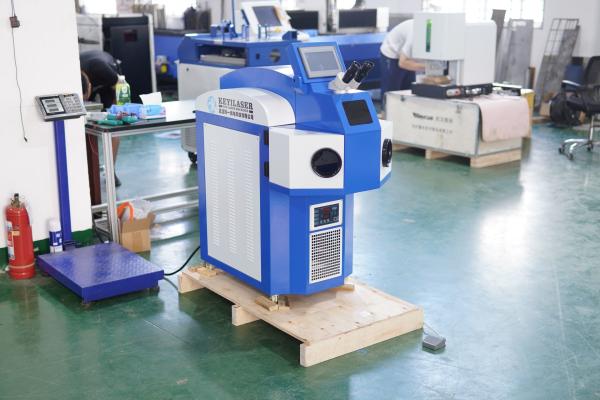

Integrated CW Pulsed Laser Jewelry Welding Machine
Integrated CW Pulsed Laser Jewelry Welding Machine
Integrated CW Pulsed Laser Jewelry Welding Machine
Integrated CW Pulsed Laser Jewelry Welding Machine
Integrated CW Pulsed Laser Jewelry Welding Machine
Integrated CW Pulsed Laser Jewelry Welding Machine
Integrated CW Pulsed Laser Jewelry Welding Machine
Integrated CW Pulsed Laser Jewelry Welding Machine
Specifications
Brand Name :
keyilaser
Place of Origin :
China
MOQ :
1
Price :
USD4000~6800
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2pieces/month
Delivery Time :
10~15 work days
Pulse width :
0.5ms-20ms
Single pulse energy :
40 J/50 J
Max. output power :
60W/100W
Spot size :
0.2mm~1mm
Welding depth :
0.8mm/≤1mm
Frequency :
1Hz-100Hz
Input power :
220V,Single phase/380V,tri-phase
Power consumption :
≤4KW/≤5KW
Description
Using The Scenario
Laser power
500W/1000W/1500W/2000W
Wavelength
1080±10nm
Working mode
CW / pulsed
Beam quality
M2＜1.1；M2,＜1.15；M2,＜1.2
Laser stable
±2%
power supply
AC220V±10% 50/60Hz ; AC380V±10%3P+PE
Power consumption
≤4KW；≤5KW；≤6KW
WeldingHead
KEYI Customized HD-X1 ; KEYI Customized HD-X2
Cooling system
Customized Industrial Double Temperature and Double Couble Chiller
Fible length
5-10m,can be customized
Working condition
15~35℃
Humidity environment
＜70%,no condensation
Welding thickness range
Max.1mm；Max.3mm；Max.5mm；
Application materials
Carbon steel,stainless steel,galvanized sheet etc.
Welding speed
0-150mm/s

Q1: I know nothing about this machine, what type of machine should I choose?
A: We will help you choose the suitable machine and share you the solution; you can share us the following information
1. what material will you weld
2. The welding material thickness
3. Is it joint welding or over-lay welding
4. What is the exact usage for the machine , for product welding or repair or other application

Q2: When I got this machine, but I don’t know how to use it. What should I do?
A: We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q3: If some problems happen to this machine, what should I do?
A: We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts,
just let us know, we will give you solutions.

Q4: What’s package, will it protect the products? A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q5: What’s delivery time? A: As per your requirement , we will suggest the suitable machine . The exact delivery time as per your machine.
Q6: What payment terms can you accept? A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q7: How is the shipping method? A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
