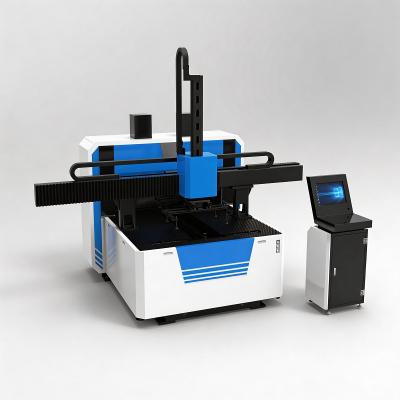

QH-3000 Flexible Bending Center Heavy Duty
QH-3000 Flexible Bending Center Heavy Duty
Specifications
Brand Name :
QIHAI
Model Number :
QH - 8025FD
Certification :
ISO, CE
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
50 days
Packaging Details :
wood, plastic
Graphic format supported :
DXF,AI,BMP,PLT,DWG
Cnc or not :
Yes
Cooling mode :
Water Cooling
After-sales service provided :
Engineers available to service machinery overseas
Cooling system :
water cooling,CW5200 waterchiller,Industry water chiller
Description
QH-3000 Flexible Bending Center Heavy Duty
Description
The QH-3000 Flexible Bending Center (Heavy Duty) is a high-performance, heavy-duty intelligent bending equipment, with its core advantages focusing on a maximum bending length of 3000mm and a groundbreaking solution to the pain point of "difficult processing of complex special-shaped parts" through multi-axis linkage precise control. Specifically designed for heavy-duty, high-precision processing scenarios such as complex curved sheet metal, multi-angle bent components (e.g., Z-shaped, arc-shaped parts), electrical enclosures with arc transitions, and medical equipment brackets with multiple bends, it breaks through the limitations of traditional bending machines that can only handle regular flat parts—requiring multiple adjustments or being unable to process complex special-shaped workpieces—realizing one-time forming of arbitrary complex special-shaped parts and fully meeting the heavy-duty, flexible and precise processing needs of modern sheet metal production.
Its core selling points perfectly address the industry’s key pain points: unlike traditional bending machines that are only capable of processing regular flat workpieces, the QH-3000 Heavy Duty is equipped with a multi-axis servo linkage system (such as X/Y/Z/R axis coordination), combined with intelligent algorithms to real-time correct bending angles and force. This advanced configuration ensures precise control during the bending process, enabling one-time forming of any complex special-shaped parts and covering more than 90% of sheet metal special-shaped processing needs. Equipped with a maximum bending length of 3000mm, it can easily handle large-size heavy-duty sheet metal bending tasks, while supporting different bending thicknesses for various materials: 0.3-1.5mm for iron plates, 0.3-2mm for aluminum plates, and 0.3-1.2mm for stainless steel plates. It features a minimum bending size of 220mm, a bending height of 150mm (up to 250mm), a feeding step accuracy of ±0.1mm, and a maximum table moving speed of 32m/min, ensuring high-precision and high-efficiency bending even for complex workpieces.
Quick details
Core Highlights: Maximum bending length of 3000mm for large-size heavy-duty workpiece processing; solves the pain point of "difficult processing of complex special-shaped parts" via multi-axis servo linkage precise control (X/Y/Z/R axis coordination + intelligent real-time angle/force correction), realizing one-time forming of arbitrary complex special-shaped parts (covering over 90% of sheet metal special-shaped needs).
Key Specifications: Maximum bending length 3000mm; bending thickness: 0.3-1.5mm (iron plate), 0.3-2mm (aluminum plate), 0.3-1.2mm (stainless steel plate); minimum bending size 220mm; bending height 150mm (250mm optional); feeding step accuracy ±0.1mm; maximum table moving speed 32m/min.
Application Scope: Heavy-duty, high-precision processing scenarios, such as complex curved sheet metal, Z-shaped/arc-shaped parts, arc-transition electrical enclosures, multi-bend medical equipment brackets, requiring large-length bending and one-time forming of complex special-shaped parts.


Technical Specification
Bending Thickness of Iron Plate/ 0.3-1.5mm
Bending Thickness of Aluminum Plate 0.3-2mm
Bending Thickness of Stainless Steel 0.3-1.2mm
Min Bending Size 220mm
Max Bending Length 3000mm
Bending Height 150(250)mm
Feeding Step Accuracy ±0.1mm
Maximum Moving Speed of Table 32m/min:
Voltage 380/220V
Power 60KW
Machine Weight 16T
Overall Dimension 450*380*280cm


Advantage

3000mm Maximum Bending Length Expands Heavy-Duty Processing Scope: With a maximum bending length of 3000mm, the QH-3000 Heavy Duty can directly process large-size heavy-duty sheet metal workpieces in one pass, avoiding the inefficiency and precision loss caused by splicing small-length bending. This expands the application scope of the equipment, enabling it to meet the bending needs of large-size complex components in industries such as machinery, electronics, medical equipment and construction, and reducing processing steps and time.
Multi-Axis Linkage Precise Control Solves Core Pain Point of Complex Special-Shaped Parts Processing: Equipped with a multi-axis servo linkage system (X/Y/Z/R axis coordination) and intelligent algorithms, the machine can real-time correct bending angles and force during processing. This solves the problem that traditional bending machines can only handle regular flat parts and require multiple adjustments or cannot process complex curved, multi-angle bent parts (e.g., Z-shaped, arc-shaped). It realizes one-time forming of arbitrary complex special-shaped parts, covering more than 90% of sheet metal special-shaped processing needs, greatly improving processing efficiency and reducing scrap rate caused by multiple adjustments.
High Precision Ensures Consistent Quality of Complex Workpieces: The feeding step accuracy of ±0.1mm, stable table movement (32m/min maximum speed), and real-time angle/force correction of the multi-axis linkage system ensure precise positioning and uniform bending force during the bending process. This avoids bending deviations, uneven angles and arc transition defects, ensuring consistent quality of each complex special-shaped workpiece—critical for high-precision processing of components such as medical equipment brackets and precision electrical enclosures.
Versatile Material Compatibility Enhances Heavy-Duty Adaptability: The machine supports bending of three common materials (iron, aluminum, stainless steel) with expanded thickness ranges (0.3-1.5mm for iron, 0.3-2mm for aluminum, 0.3-1.2mm for stainless steel), covering most common heavy-duty sheet metal materials in industrial production. It does not require complicated adjustments for different materials or thicknesses, further improving processing efficiency and operational convenience, and reducing equipment investment costs for enterprises.
Heavy-Duty Structure & Efficient Operation Reduce Cost and Improve Efficiency: The 16T heavy-duty structure ensures stable operation even when processing large-size, thick-gauge complex workpieces, avoiding vibration-induced precision errors and ensuring long-term continuous operation. The one-time forming of complex special-shaped parts eliminates multiple processing steps, while the high table moving speed and precise control significantly improve production efficiency. The equipment’s intelligent operation simplifies the process, reducing dependence on skilled operators and human errors, and achieving comprehensive cost reduction and efficiency improvement for heavy-duty sheet metal processing.
