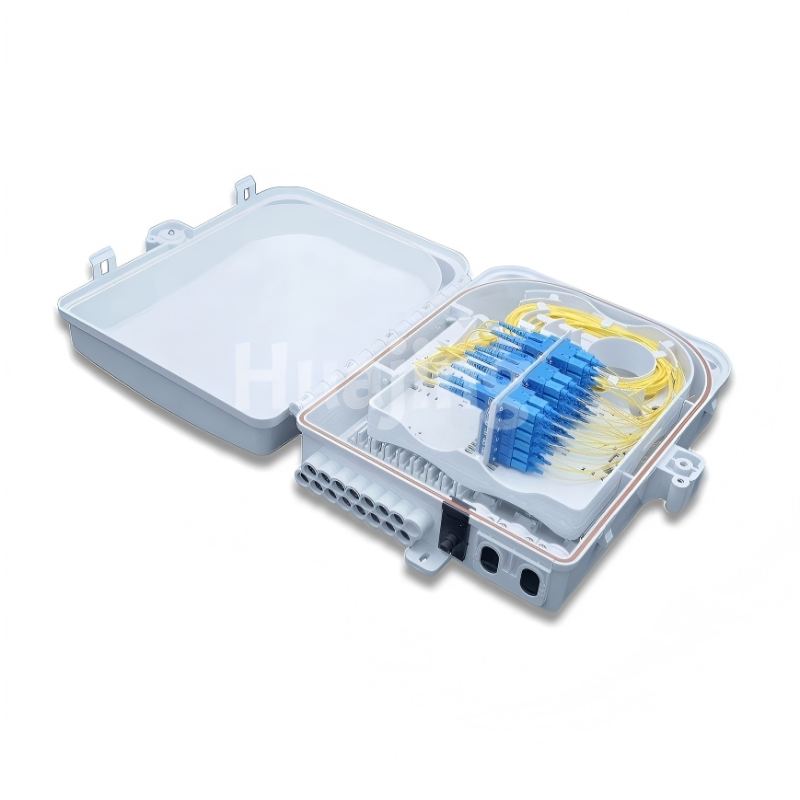

24 Cores Fiber Optic Distribution Box 1:16 Splitting Non Breaking Cable Entrance Wall Pole Mounting IP65
24 Cores Fiber Optic Distribution Box 1:16 Splitting Non Breaking Cable Entrance Wall Pole Mounting IP65
24 Cores Fiber Optic Distribution Box 1:16 Splitting Non Breaking Cable Entrance Wall Pole Mounting IP65
24 Cores Fiber Optic Distribution Box 1:16 Splitting Non Breaking Cable Entrance Wall Pole Mounting IP65
24 Cores Fiber Optic Distribution Box 1:16 Splitting Non Breaking Cable Entrance Wall Pole Mounting IP65
24 Cores Fiber Optic Distribution Box 1:16 Splitting Non Breaking Cable Entrance Wall Pole Mounting IP65
Specifications
Brand Name :
Huajing
Price :
10.73-16.88
Capacity :
24 cores
Model Number :
FDB0324
Model. :
FDB0324
Material :
ABS or ABS/PC
Cable diameter :
Φ6~Φ12mm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Cable entrance :
Support cable non-breaking style
Max splitting :
1 : 16
Place of Origin :
China, Chengdu
Delivery Time :
1-4weeks
Size :
295*335*117mm
Cable in/out :
3/24
MOQ :
100
Description
Application:

This integrated optical distribution solution combines welding, splitting, and wiring functions for direct fusion and branching of optical cables. Ideal for terminal access at user endpoints and connections with optical communication equipment, while supporting protective connections between optical cables and patch cords.

Product Features:
  1. Industry Standard User interface, is made of high impact plastics;
  2. Anti-UV, high impact resistant and waterproof, with special ddor key;
  3. Light and handy with easy maintenance, has special key-operated switches;
  4. Cable entrance support cable loopthrough;
  5. Splicing tray is divided into 2 parts, which is bi-level and can be flipped, larger space for fiber coil, more obvious division of fusion splicing area and wiring area, reducing line crossing;
  6. Can accommodate pipe type or insert style splitter. Max splitting 1:16;
  7. Wall-mounting or pole mounting.

Performance Index:
  • Fiber curvature radius: ≥30mm
  • Additional loss of optical fiber: ≤ 0.01dB
  • Temperature range: -40℃ ~ +60℃
  • Anti-side pressure: ≥2000N / 10cm
  • Impact resistance: 20N.m or more
  • Protection class: IP65

Technical Specifications
Parameter Packing Detail
Model FDB0324 Carton Size (mm) 650×370×580/8pcs
Size (mm) 295*335*117 CBM (m³) 0.14
Weight (Kg) 2.1 Gross Weight (Kg) 18.3
Cable In/Out 3/24 Installation Wall mounting (standard)
Pole mounting (optional)
Cable Diameter(mm) Φ6~Φ12
Core Capacity 24 (single core)
Adapter SC single x (24 pcs)
Max Splitting PLC 1:16 (1 pc)
