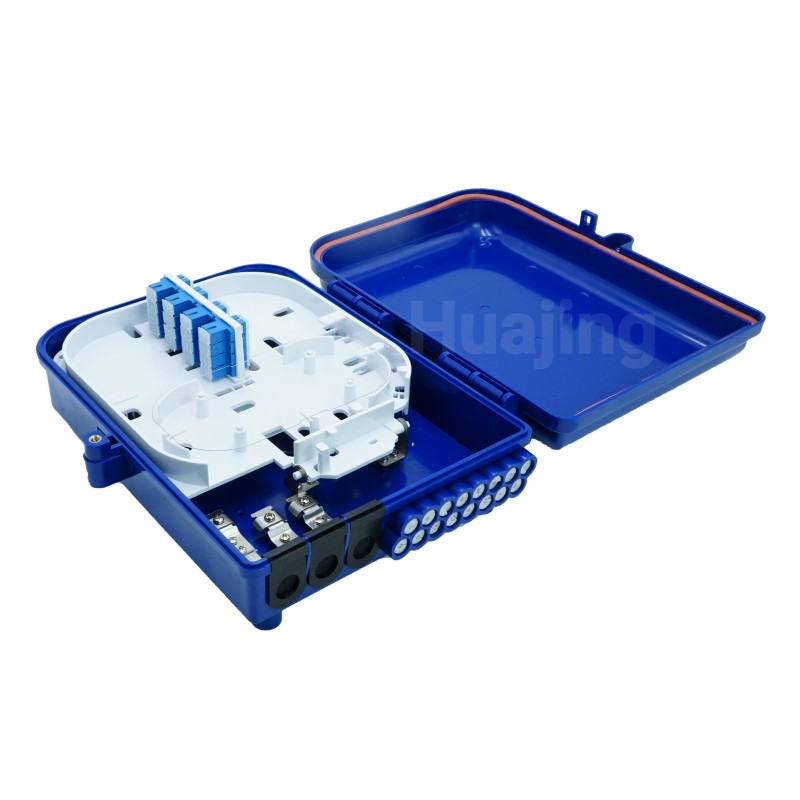

IP65 Outdoor 1:16 3 Cable Inlets Fiber Optic Splitting Box Wall Pole Mounting Weatherproof Protection
IP65 Outdoor 1:16 3 Cable Inlets Fiber Optic Splitting Box Wall Pole Mounting Weatherproof Protection
IP65 Outdoor 1:16 3 Cable Inlets Fiber Optic Splitting Box Wall Pole Mounting Weatherproof Protection
IP65 Outdoor 1:16 3 Cable Inlets Fiber Optic Splitting Box Wall Pole Mounting Weatherproof Protection
IP65 Outdoor 1:16 3 Cable Inlets Fiber Optic Splitting Box Wall Pole Mounting Weatherproof Protection
IP65 Outdoor 1:16 3 Cable Inlets Fiber Optic Splitting Box Wall Pole Mounting Weatherproof Protection
IP65 Outdoor 1:16 3 Cable Inlets Fiber Optic Splitting Box Wall Pole Mounting Weatherproof Protection
IP65 Outdoor 1:16 3 Cable Inlets Fiber Optic Splitting Box Wall Pole Mounting Weatherproof Protection
Specifications
Model Number :
FDB0316B
Cable in/out :
3 / 16
Size (mm) :
300*260*105
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Cable diameter (mm) :
Φ6~Φ16
Material :
ABS or ABS/PC
Cable entrance :
Support cable unbroken
Price :
11.2-22.8
Max splitting :
1 : 16
Delivery Time :
1-4weeks
MOQ :
100
Brand Name :
Huajing
Place of Origin :
China, Chengdu
Model. :
FDB0316B
Capacity :
32 cores
Description

Application:

This integrated optical distribution box combines welding, splitting, and wiring functions for direct fusion and branching of optical cables. Ideal for terminal access at user endpoints and connections with optical communication equipment, while supporting protective connections between optical cables and patch cords.

Product Features:

  1. The products is made of high-quality plastics and has excellent impact resistance and anti-aging capabilities;
  2. It equips an independent flip-over core, ensuring clearer wiring and reducing the lines crossing;
  3. 3 cable entrance (suitable for cable loop-through) and 16 independent pigtail exits;
  4. Accommondates 1:8 (2pcs) or 1:16(1 pc) PLC splitter
  5. The box body adopts anti-theft screws and is equipped with a dedicated key;
  6. Wall or pole mounting.

Performance Index:

  • Fiber curvature radius: ≥40mm

  • Additional loss of optical fiber: ≤ 0.01dB

  • Temperature range: -10℃ ~ +70℃

  • Anti-side pressure: ≥2000N / 10cm

  • Impact resistance: 20N.m or more

  • Protection class: IP65

Technical Specifications:

Parameter
Packing Detail
Model
FDB0316B
Carton Size (mm)
560×360×620/10pcs
Size (mm)
300×260×105
CBM (m³)
0.125
Weight (Kg)
 1.5
Gross Weight (Kg)
Cable In/Out
3 / 16
Installation
Wall mounting (standard)
Pole mounting (optional)
Cable Diameter(mm)
Φ6~Φ16
Core Capacity
32 (single core)
Adapter
SC simplex (16 pcs)
Max Splitting
PLC 1:16 (1 pc) 1:8(2 pcs)
