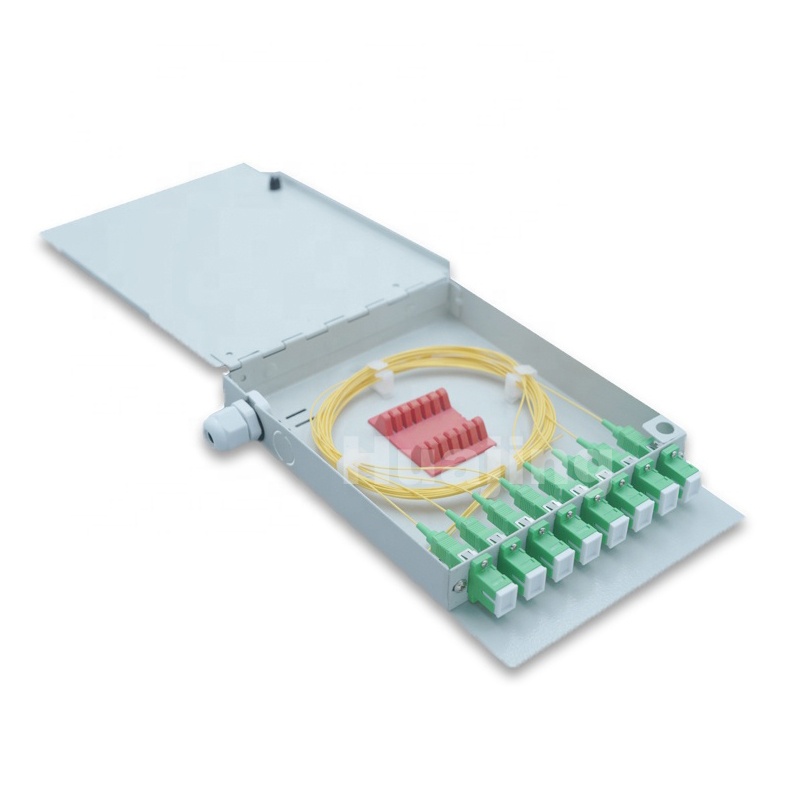

Wall Mounted Metal FTTH Terminal Box 4 To 16 Cores with FC SC ST Adapter
Wall Mounted Metal FTTH Terminal Box 4 To 16 Cores with FC SC ST Adapter
Wall Mounted Metal FTTH Terminal Box 4 To 16 Cores with FC SC ST Adapter
Wall Mounted Metal FTTH Terminal Box 4 To 16 Cores with FC SC ST Adapter
Specifications
Material :
cold rolled steel
Model. :
FTB104 FTB108 FTB116
Capacity :
4～16 cores
Brand Name :
Huajing
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Application :
indoor on the wall
Place of Origin :
China
MOQ :
200
Model Number :
FTB108 FTB104 FTB116
Price :
6.6-10.5USD/PC
Adapter :
FC SC ST
Cover :
hinged
Delivery Time :
1-4weeks
Cable in/out :
1 / 8
Description

Application:
This product is suitable for the indoor cable's termination, fixing and fiber pigtail splicing in building and villas.

Features:

  1. Box hinge connection, snap-on design;
  2. Small size, light weight, good appearance;
  3. Indoor wall mounting with mechanical protection;
  4. Adapter outputs, applicable to FC, SC, ST adapter.

Technical index

  • Fiber radius of curvature: ≥30mm
  • Optical disk additional loss: ≤ 0.01dB
  • Temperature Range: - 10°C ~ + 70°C
  • Anti lateral pressure: ≥2000N / 10 cm
  • Shock resistance: ≥20N.m

Specification:

Model. FTB104 FTB108 FTB116
Size (mm): L×W×H 140*105*28 200*148*30 245*200*48
Cable diameter (mm) ￠5 ~￠10 ￠5 ~￠10 ￠5 ~￠10
Inlet / outlet: 1 / 4 1 / 8 1 / 16
Capacity (core): 4 8 16
Net weight (kg) 0.38 0.68 1.24
