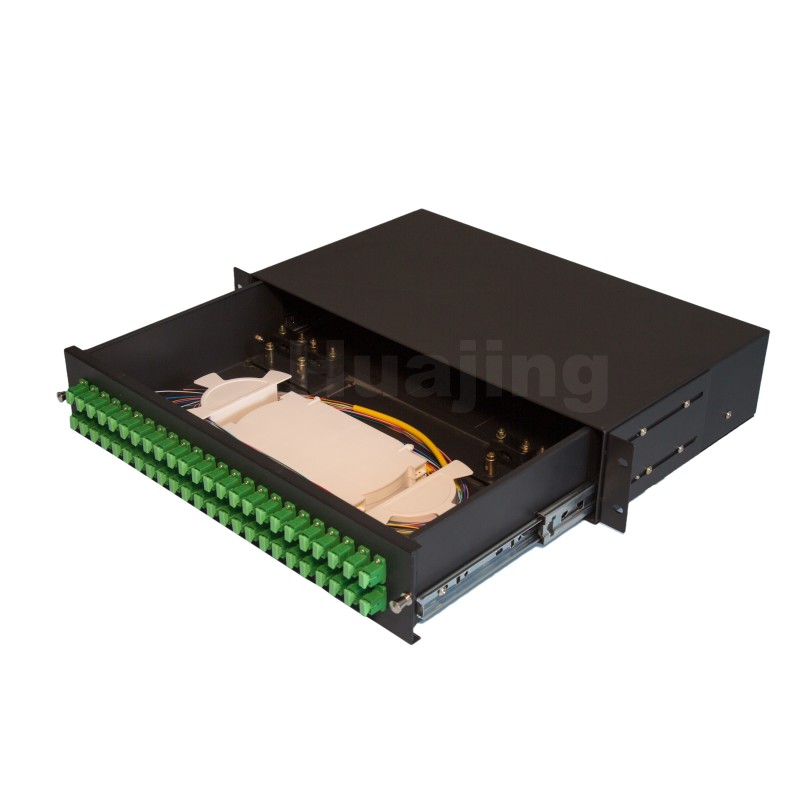

Drawer Type Optical Fiber Terminal Box 19 Inch 144 Cores With 4 Cable Entrance
Drawer Type Optical Fiber Terminal Box 19 Inch 144 Cores With 4 Cable Entrance
Drawer Type Optical Fiber Terminal Box 19 Inch 144 Cores With 4 Cable Entrance
Drawer Type Optical Fiber Terminal Box 19 Inch 144 Cores With 4 Cable Entrance
Specifications
Material :
Cold Rolled Steel
Model. :
GPZ/JJ-CLA
Capacity :
144（single core）
Mounting Type :
rack mount
Delivery Time :
1-4weeks
structural feature :
drawer type
Price :
16.2-28.9USD/PC
Place of Origin :
China
MOQ :
100
Model Number :
GPZ/JJ-CLA
Brand Name :
Huajing
Dimensions (mm) :
482*240*1U~4U
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Cable Management :
4 Rear cable entry
Description

Applixcation:

This product can be used for optical cable terminal branch connection inside building.

Feature:

  1. 19 "standard structure, drawer type.
  2. The body is made of high-quality cold-rolled steel, and the surface is treated with matt spray plastics, which has strong adhesive force, artistic and durable.
  3. 4 cable entrance are sealed with oil resistance NBR to increase the flexibility. Users can choose to prick the entrance and exit.
  4. Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.
  5. Customized SC, FC, ST, LC adapter panels.

Technical Index:

  • optical fiber winding radius: ≥40mm
  • extra loss of fiber tray: none
  • fiber length left in tray: ≥1.6m
  • fiber capacity: 24 ~ 144 cores (single core);
  • working temperature: - 400C ~ + 600C
  • lateral pressure-resistance: 500N
  • shock-resistance:750N

Specification:

Parameter Packing Detail
Model. GPZ/JJ-CLA Carton Size(mm) 530×290×295/5pcs
Size(mm) 482*240*1U CBM(m³) 0.045
Weight(Kg) 3.6 Gross weight(Kg) 19.5
Cable in/out 4/24(adapter) Adapter
Cable diameter Φ6~Φ16 SC/SC/FC/ST 24 pcs
Core capacity 12(single core)
main body material cold-rolled steel

Model

Maximum Capacity

(single core)

Inner Package

Weight (kg)

Outer Package Size

(mm)

 Outer Package Weight(kg) Outer Package Quantity
GPZ/JJ-CLA- 1U 24 3.8 485*425*305 20 5 pcs
GPZ/JJ-CLA-2U 48 6.2 485*425*305 25.8 4 pcs
GPZ/JJ-CLA-4U 144 8.7 485*425*305 18.9 2 pcs
