Application:
GXF(04)E is mainly used for outdoor cable connection, distribution and scheduling.


Feature:

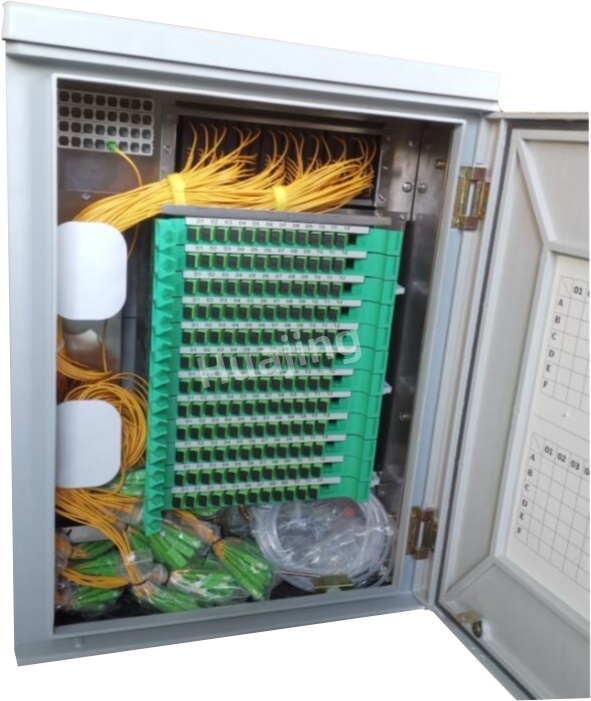

1. This product consists of cabinet body, a fusion integrated unit frame, a fusion integrated module, an optical cable fixing and grounding protection device, a winding unit assembly, a wiring trough assembly, etc.

2. The shell is made of high-strength, special synthetic materials with heat insulation, water vapor condensation, anti-corrosion and other characteristics.

3. The structural design is reasonable, the cabinet adopts single-sided door opening, full-front operation, and the wiring space in the box is large.

4. The fusion part adopts an integrated fiber splice tray with fiber fusion, connection and storage in integration; which is convenient for fiber splice operation. It’s available for different adapters such as FC, SC, LC. 30° angle installation of adapters ensures fiber pigtail bending radius and to avoiding the light direct the eyes when operating.

Technical index:

• Temperature resistance: After being placed in an environment of (-55 ℃ ~ 55 ℃) ± 2 ℃ for 16 hours, it will recover for 1 hour under normal conditions, and the performance will not be affected.
• Sealing performance: Dustproof, superior GB4208 requirements.
• Waterproof performance: 80Kpa water pressure, ± 60 ° angle swing flushing pipe angle, sprinkling water for 15 minutes, water droplets cannot enter the box.
• Connector attenuation (insert, interchange, repeat): ≤ 0.5 dB.
• Return loss: APC type movable connector ≥ 60 dB; UPC type movable connector ≥ 50 dB; PC type movable connector ≥ 40dB.
• Insulation resistance: ≥ 1000MΩ/500V (DC).
• Withstand voltage: ≥ 3000V (DC)/1min, no breakdown, no flying fox.

Specification:
