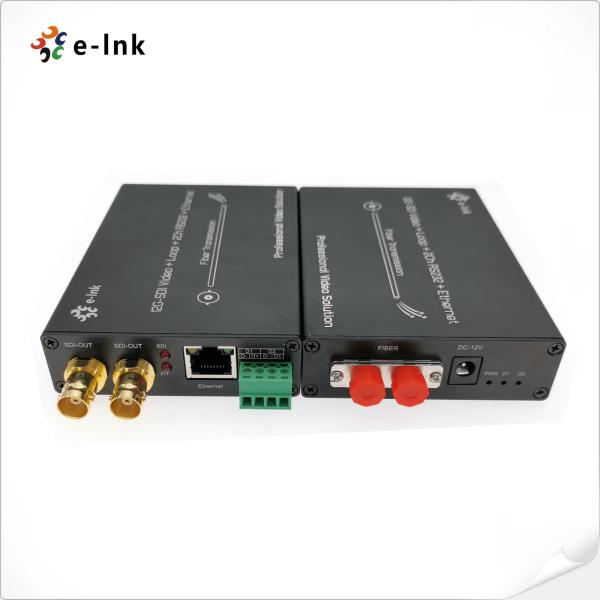

12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485 for HDTV
12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485 for HDTV
12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485 for HDTV
12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485 for HDTV
12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485 for HDTV
12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485 for HDTV
12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485 for HDTV
12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485 for HDTV
Specifications
Brand Name :
E-link
Model Number :
LNK-12GSDI-1V2R1GE
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 pair
Price :
Negotiation
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Delivery Time :
3~5 working days
Packaging Details :
SDI Over Fiber Optic Extender Standard Export Package
Product Name :
SDI To Fiber Optic Converter
Power :
12 VDC
Power consumption :
6 W (Max.)
Dimension :
117 x 80 x 24 (mm)
Fiber interface :
Simplex LC
Operating Temperature :
-10℃～70℃
Description

2G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485

Overview

LNK-12GSDI-1V2R1GE Series 12G-SDI Fiber Converter

This high-performance fiber optic converter supports:
- 1 Channel 12G-SDI video (with embedded audio)
- 1 Channel Gigabit Ethernet
- 2 Channels bidirectional RS485 data

All signals are transmitted over a single fiber optic cable, with local monitoring via a 12G loop output.

The E-link 12G Video over Fiber Converters set includes one transmitter and one receiver, compatible

with high-resolution video formats, including:
- 4K/UltraHD (3840×2160@60Hz)
- 1080p, 1080i, 720p

Ideal for professional broadcast, live production, and high-quality video transmission over long distances.

Features

Each SDI channel includes 8-channel audio embedded

Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or

Divide-by-1.001 Subrates and 270 Mbps

Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

Supports 1Ch 10/100/1000M Ethernet

Fiber optic WDM/CWDM/DWDM technique;

Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720P.

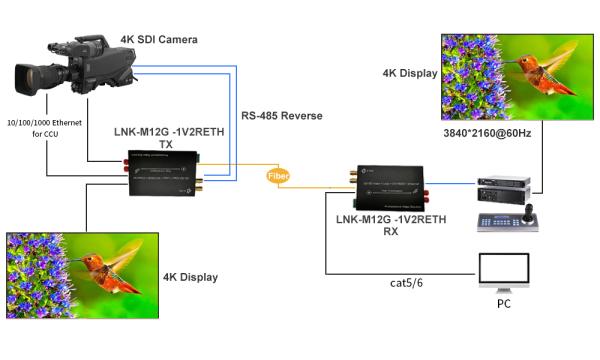

Application

12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485 for HDTV

Technical Indexes

Formats Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible Compatible With DVB-ASI and AES10 (MADI)
Input 1 x 12G-SDI on BNC
Output 2 x FC optical fiber
1 x 12G-SDI loop-out on BNC
Supported Resolution HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range 3840*2160@60Hz
Input cable specification ≤70m@12G SDI Belden 1694A
Output cable specification ≤60m@12G SDI Belden 1694A
Ethernet 10/100/1000Mbps
Data type 2Ch Backward RS485
Optical transmission bandwidth 270MHz～12GHz
Power 12 VDC
Power Consumption 6 W (Max.)
Dimensions (LxWxH) 117 x 80 x 24 (mm)
Operating Temperature -10℃～70℃
Storage Temperature -40℃～85℃

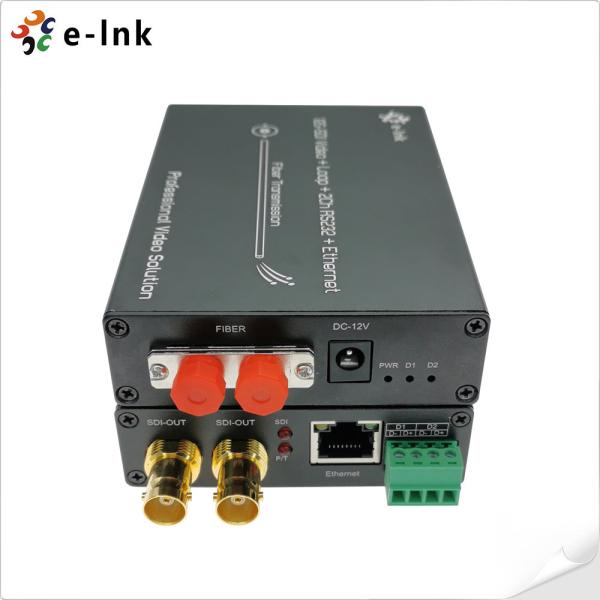

Panel

12G-SDI to Fiber Converter with Gigabit Ethernet plus 2Ch Backward RS485 for HDTV

RS485 Connection

Pin - +
RS485 D- D+
