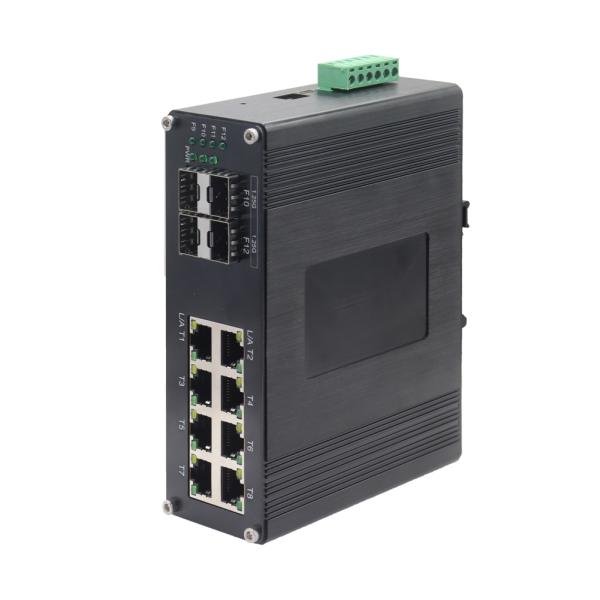

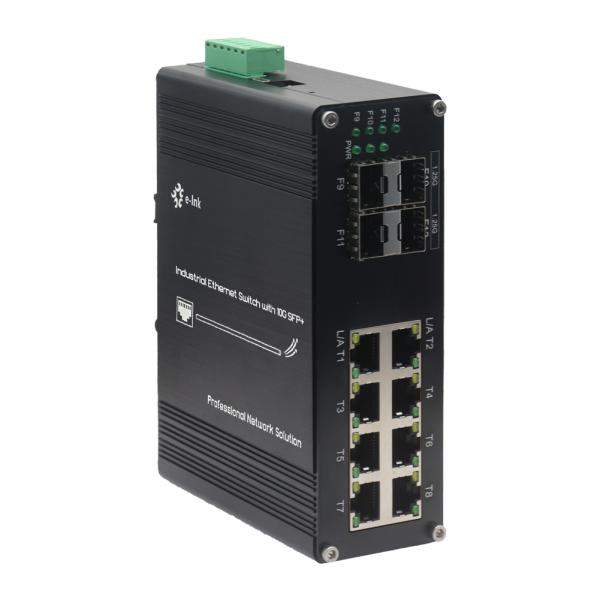

Industrial Managed Switch with 8x Gigabit RJ45 and 4x SFP Fiber Ports
Industrial Managed Switch with 8x Gigabit RJ45 and 4x SFP Fiber Ports
Industrial Managed Switch with 8x Gigabit RJ45 and 4x SFP Fiber Ports
Industrial Managed Switch with 8x Gigabit RJ45 and 4x SFP Fiber Ports
Industrial Managed Switch with 8x Gigabit RJ45 and 4x SFP Fiber Ports
Industrial Managed Switch with 8x Gigabit RJ45 and 4x SFP Fiber Ports
Industrial Managed Switch with 8x Gigabit RJ45 and 4x SFP Fiber Ports
Industrial Managed Switch with 8x Gigabit RJ45 and 4x SFP Fiber Ports
Industrial Managed Switch with 8x Gigabit RJ45 and 4x SFP Fiber Ports
Industrial Managed Switch with 8x Gigabit RJ45 and 4x SFP Fiber Ports
Industrial Managed Switch with 8x Gigabit RJ45 and 4x SFP Fiber Ports
Industrial Managed Switch with 8x Gigabit RJ45 and 4x SFP Fiber Ports
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC408M
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Delivery Time :
2~7 working days
Packaging Details :
Gigabit Managed PoE Switch Standard Export Package
Data Rate :
10/100/1000Mbps
Connector :
8 x RJ45
Optical Port :
4 x 1000Base-X SFP
Input Power :
48~57VDC, Redundant Power (6-pin Terminal Block)
Dimensions (WxDxH) :
149 x 114 x 50 mm
Weight :
0.55KG
Description

Industrial L2+ 8-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch

Overview

The L2+ Managed Hardened Ethernet Switch is designed for industrial-grade networking, featuring 8 Gigabit 10/100/1000Base-T ports and 4 1000Base-X SFP fiber ports. RJ45 interfaces support auto MDI/MDI-X, full/half-duplex, while the SFP slots work with single-mode or multi-mode fiber for long-distance transmission. Built for harsh environments, this switch ensures high reliability and easy deployment, making it ideal for connecting IP cameras, wireless access points, and other devices across remote sites.

Features

► Support 8x10/100/1000Base-T + 4x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► 9K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards: IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-X
IEEE802.3p QoS
IEEE802.1d Spanning Tree
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory: 12M bits
Processing Type: Store-and-Forward
Backplane bandwidth 110Gbps
Max Packet Length: 9K Bytes Jumbo Frame
Address Table Size: 8K MAC Addresses
Interface
Connector: 8 x RJ45
RS485: 1 x RS485 (Optional)
Optical Port: 4 x 1000Base-X SFP
USB-C: 1 x USB-C (for Management)
RS485 Serial Interface (Optional)
Physical interface Industrial standard 3-pin screw terminal
Data type 1Ch RS485 Bi-Direction
RS-485 signals Data +, Data-, GND
Serial port line distance (copper) 1000 meters
Baud rate 0 ~ 800kbps
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption: 8W Max.
Protection:
Power Input Overload: Automatic Resettable
Reverse Polarity: Present

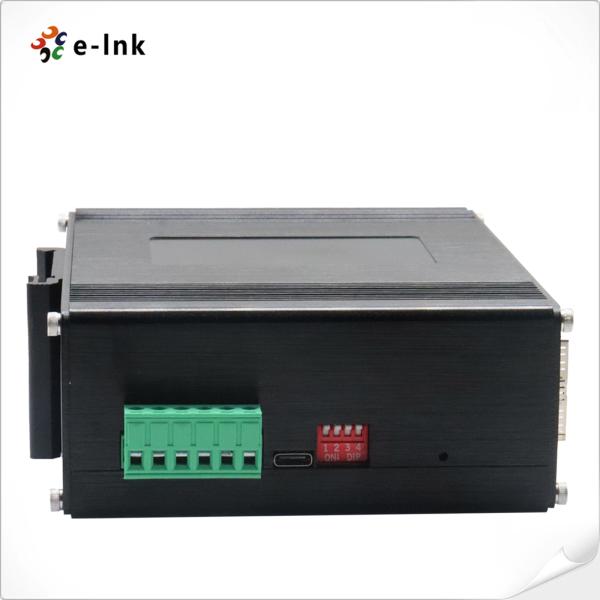

DIP Switch
4-digit DIP switch functionIndustrial Managed Switch with 8x Gigabit RJ45 and 4x SFP Fiber Ports DIP Function Settings
SW 1 VLAN ON - Enabled OFF - Disabled
SW 2 Ring Management ON - Enabled OFF - Disabled
SW 3 (to be upgraded) 250m PoE Network ON - Enabled OFF - Disabled
SW 4 (to be upgraded) PoE Reset ON - Enabled OFF - Disabled
LED Indicators:
PWR Power Status
Ethernet (Per Port) Link/Activity
Fiber: Gigabit SFP Port: F9~F12
Dimensions (WxDxH): 149 x 114 x 50 mm
Weight: 0.55Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail mount
Software Features
Redundancy Protocols Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
Multicast Support Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
VLAN Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
Time Management SNTP
QOS

Flow-based redirection

Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
ACL

Port-based Issuing ACL

ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
Diagnostic Maintenance Support port mirroring, Syslog, Ping
Management Function Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT
Alarm Management Support 1 way relay alarm output, RMON, TRAP
Security

Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0

Support DHCP Snooping, Option 82, 802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS, port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
Advance Layer 2+ Features

IPv4/IPv6 Management

Static Route
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model Description
ETH-IMC408M Industrial L2+ 8-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed
Power Options ► DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.

Application

Industrial Managed Switch with 8x Gigabit RJ45 and 4x SFP Fiber Ports
