Description

Mini-type 3G-SDI to Fiber Converter with Tally & Reverse RS485

Overview

Mini 3G/HD-SDI fiber converter supports 1 channel 3G/HD-SDI video (with audio embedded), Tally signal and reverse RS485 signal transmission via optical fiber, and can output local monitoring signal via 3G/HD-SDI loop. E-link 3G/HD-SDI video fiber converter includes a transmitter and a receiver, supporting the transmission of 1080P 3G/HD-SDI signals.

Features

► Each channel includes 8-channel audio embedded;

► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with SDI camera systems

► Long transmission capability up to 80 km

► Hot swap and hot plug;

► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;

► LED Status Indication to monitor the working conditions;

► super optic dynamic range and free of adjustment;

► 1470~1610nm CWDM wavelengths optional;

► industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

Technical Indexes

Fiber Optical interface
Fiber interfaceSimplex LC
Transmission distance550m-20Km
Wavelength1310nm/1550nm
Video
Video interfaceBNC
Video input/output impedance75Ω
Video input/output voltageTypical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits RateMax 3.2Gb/s
Differential gain (10%～90% APL)<1%
SDI format support625/25 PAL
525/29.97 NTSC, 525/23.98 NTSC
720p50, 720p59.94
1080i 23/24/30/50/59.94
1080P 23.98/24/30/50/60
Video SDI standard270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
Data
Physical interfaceIndustrial standard screw terminal
Data typeTally & Reverse RS485
Frequency/Rate support

Max. 115200bps for RS422
Max. 57600bps for RS485

BER<10ˉ9
Electrical
Power adaptorDC 5V
Power consumption<5W
LED Indicator
SDISDI video
P/TPower Supply
Mechanical
Dimensions (LxWxH)

73 x 44 x 17 mm (TX)
73 x 44 x 17 mm (RX)
185 x 132 x 100 mm (Package)

Weight

75g (TX)
75g (RX)
450g (Package)

CasingAluminum Case
Mounting OptionsDesktop
Environmental
Working Temperature-20℃～+70℃
Storage Temperature-40℃～+80℃
Working Humidity0~95%
MTBF≥100000 hours

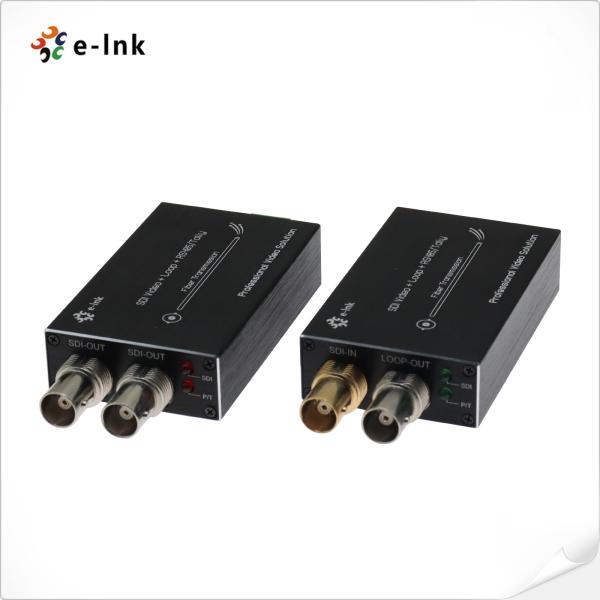

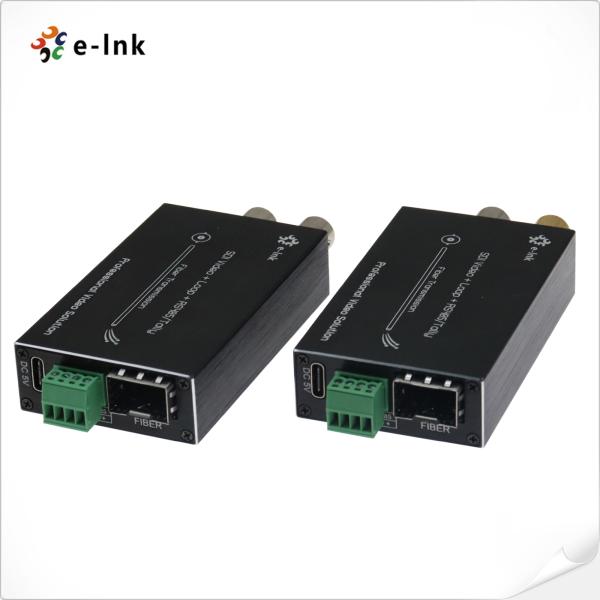

Interface & LED

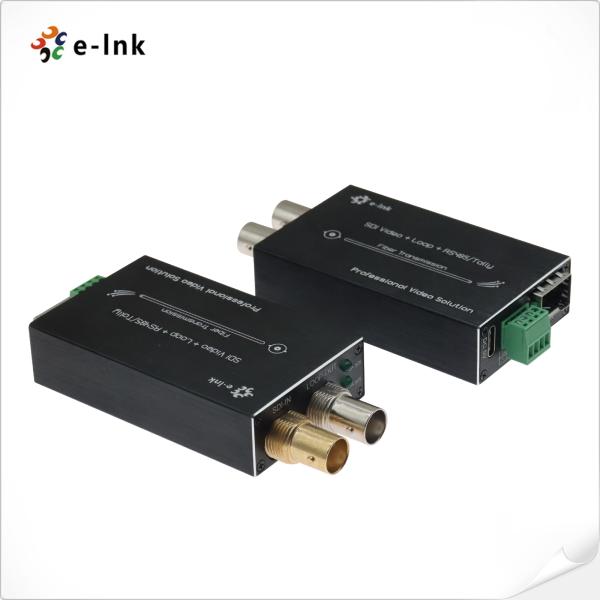

Multifunctional Mini 3G/HD-SDI Fiber Optic Converter, Supports Video, Audio and Reverse Signals
Ordering Information

ModelDescription
LNK-M3G-1V-MMMini-type 3G-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-M3G-1V-20Mini-type 3G-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-M3G-1V-40Mini-type 3G-SDI to Fiber Converter with Tally & Reverse RS485 and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs

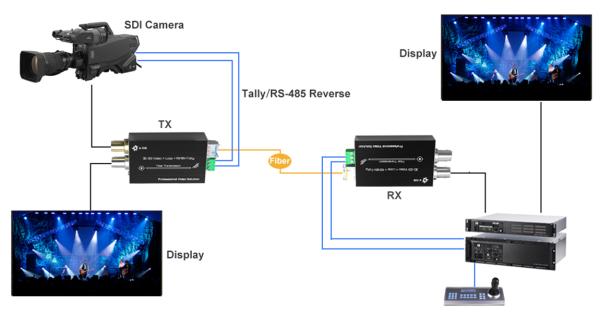

Application
