Specifications
Brand Name :
E-link
Model Number :
LNK-M12G-1V1T1D Series
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1 pair
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
2000 pairs/per month
Delivery Time :
7 working days
Packaging Details :
12G SDI Fiber Transmitter Receiver Standard Export Package
Input :
1 x 12G-SDI on BNC
Supported Resolution :
HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range :
3840*2160@60Hz
Data type :
Backward RS485
Power :
5-15 VDC
Dimensions (LxWxH) :
80 x 40 x 20 (mm)
Operating Temperature :
-40℃～85℃
Description

Mini 12G-SDI to Fiber Converter with Tally and RS485

Overview

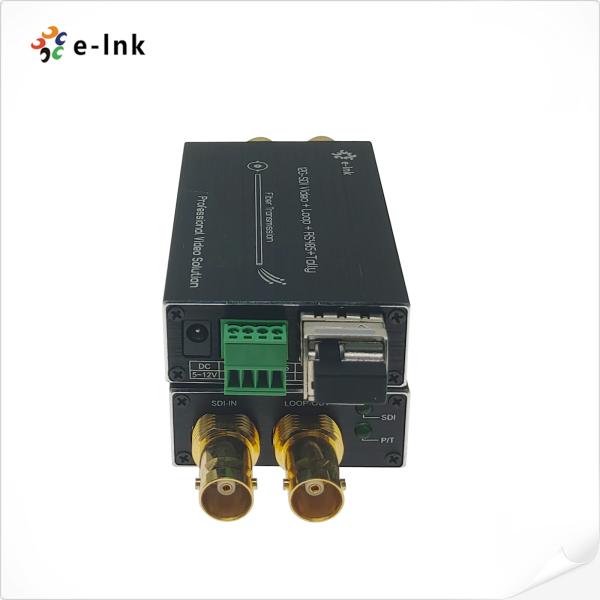

LNK-M12G-1V1T1D Series Mini 12G-SDI Fiber Optic Converter

This compact fiber converter supports:
- 1 Channel 12G-SDI video(with embedded audio)
- 1 Channel Tally signal (for camera control/intercom)
- 1 Channel bidirectional RS485 data

All signals are transmitted over a single fiber optic cable, with real-time monitoring via a 12G loop

output.

The E-link 12G Video over Fiber Converters set includes one transmitter and one receiver, compatible

with high-resolution video formats, including:
- 4K/UltraHD (3840×2160@60Hz)
- 1080p, 1080i, 720p

Designed for broadcast, live production, and professional AV systems, this mini converter ensures

reliable, long-distance signal transmission with low latency.

Features

Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

Directly compatible with 12G/6G/3G-SDI camera systems

Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or

Divide-by-1.001 Subrates and 270 Mbps

fiber optic WDM/CWDM/DWDM technique;

Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720P.

Supports Tally and Backward RS485

Supports hot swapping and hot plugging

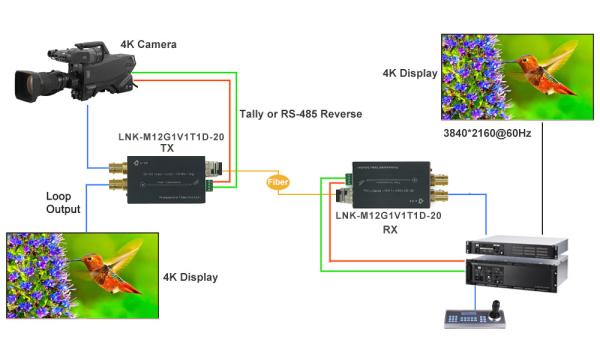

Application

Wholesale 12G SDI Video Over Fiber Converter With Tally RS485 and Loop Out SMF LC 20KM for HDTV

Technical Indexes

Formats Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible Compatible with DVB-ASI and AES10 (MADI)
Input 1 x 12G-SDI on BNC
Output 1 x LC optical fiber
1 x 12G-SDI loop-out on BNC
Supported Resolution HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range 3840*2160@60Hz
Input cable specification ≤70m@12G SDI Belden 1694A
Output cable specification ≤70m@12G SDI Belden 1694A
Data type Backward Tally
Data type Backward RS485
Optical transmission bandwidth 270MHz～12GHz
Power 5-15 VDC
Power Consumption 2 W (Max.)
Dimensions (LxWxH) 80 x 40 x 20 (mm)
Storage Temperature -40℃～80℃
Operating Temperature -40℃～85℃

Ordering Information

Model Description
LNK-M12G-1V1T1D-20 Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
