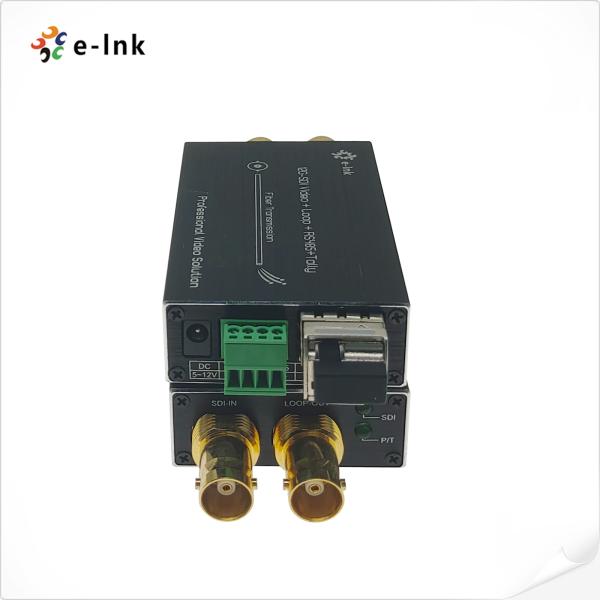

Compact 12G-SDI Fiber Converter with Loop-Out Tally RS485 Control
Compact 12G-SDI Fiber Converter with Loop-Out Tally RS485 Control
Compact 12G-SDI Fiber Converter with Loop-Out Tally RS485 Control
Compact 12G-SDI Fiber Converter with Loop-Out Tally RS485 Control
Specifications
Brand Name :
E-link
Model Number :
LNK-M12G-1V1T1D Series
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
Guangdong, China
MOQ :
1 pair
Price :
$359-$399
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
2000 pairs/per month
Delivery Time :
3-5 working days
Packaging Details :
12G SDI Fiber Transmitter Receiver Standard Export Package
Input :
1 x 12G-SDI on BNC
Supported Resolution :
HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range :
3840*2160@60Hz
Data type :
Backward RS485
Power :
5-15 VDC
Dimensions (LxWxH) :
80 x 40 x 20 (mm)
Description

Compact 12G-SDI Fiber Converter with Loop-Out Tally RS485 Control

Overview

The LNK-M12G-1V1T1D is a miniature 12G-SDI fiber converter built for broadcast, live

production, and OB vans. Supporting 12G/6G/3G/HD/SD-SDI, it enables real-time 4K UHD video

with embedded 8-channel audio to be transmitted over fiber up to 20km or more. With Tally signal

and RS485 backward channel, it ensures smooth studio-to-camera communication. Its palm-sized

design, low power (2W), and hot-plug support make it an ideal solution where space and reliability

are critical.

Features

Ultra-compact (80×40×20mm), lightweight mini converter

Supports 12G/6G/3G/HD/SD-SDI with embedded 8-channel audio

4K60 UHD transmission with broadcast-grade uncompressed quality

1× 12G-SDI loop-out for local monitoring

1× LC fiber port with up to 20km reach (80km optional)

Backward Tally & RS485 for camera return signals and control

Reclocking & cable equalization for stable signal integrity

Wide temperature tolerance: -40℃ to +85℃

Low power consumption, just 2W

Hot swap & plug-and-play ready

Technical Indexes

Formats Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible Compatible with DVB-ASI and AES10 (MADI)
Input 1 x 12G-SDI on BNC
Output 1 x LC optical fiber
1 x 12G-SDI loop-out on BNC
Supported Resolution HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range 3840*2160@60Hz
Input cable specification ≤70m@12G SDI Belden 1694A
Output cable specification ≤70m@12G SDI Belden 1694A
Data type Backward Tally
Data type Backward RS485
Optical transmission bandwidth 270MHz～12GHz
Power 5-15 VDC
Power Consumption 2 W (Max.)
Dimensions (LxWxH) 80 x 40 x 20 (mm)
Storage Temperature -40℃～80℃
Operating Temperature -40℃～85℃

Ordering Information

Model Description
LNK-M12G-1V1T1D-20 Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

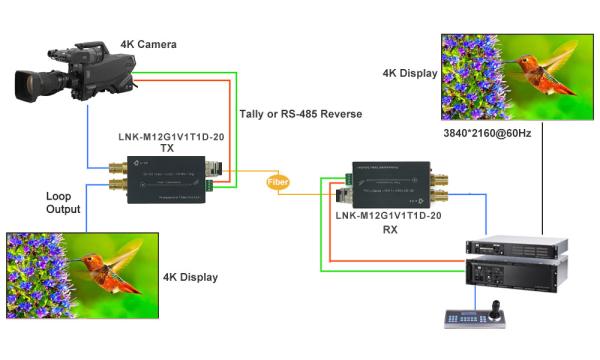

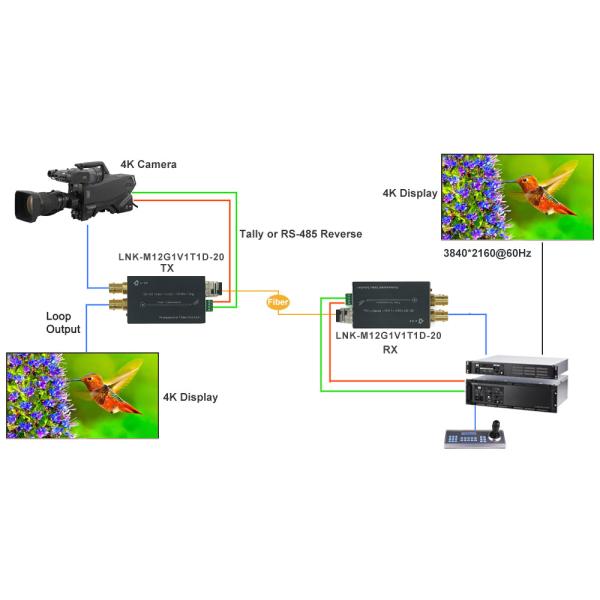

Application
