Specifications
Brand Name :
E-link
Model Number :
LNK-IMC2X4S8GP Series
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiation
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Delivery Time :
2~7 working days
Packaging Details :
SFP Ethernet Switch Standard Export Package
Processing Type :
Store-and-Forward
Optical Port: :
4 x 1000Base-X SFP/2 x 10G Base-SR/LR SFP+
Input Power :
48~57VDC, Redundant Power (6-pin Terminal Block)
Dimensions (WxDxH) :
149 x 114x 50 mm
Connector :
8x RJ45
Weight :
0.55KG
Description

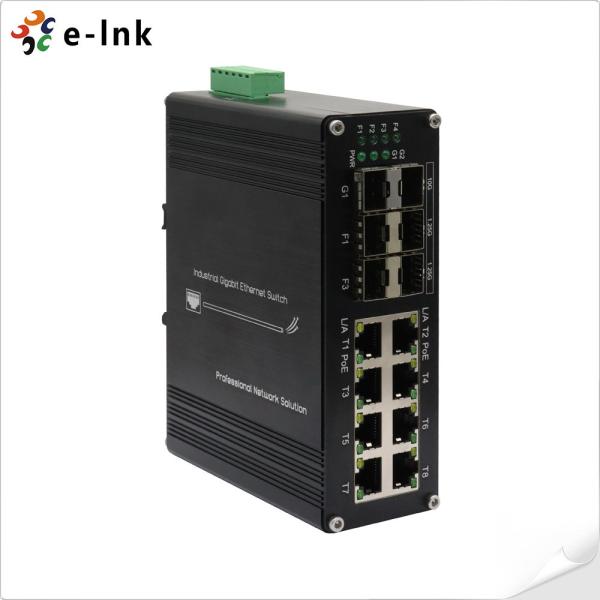

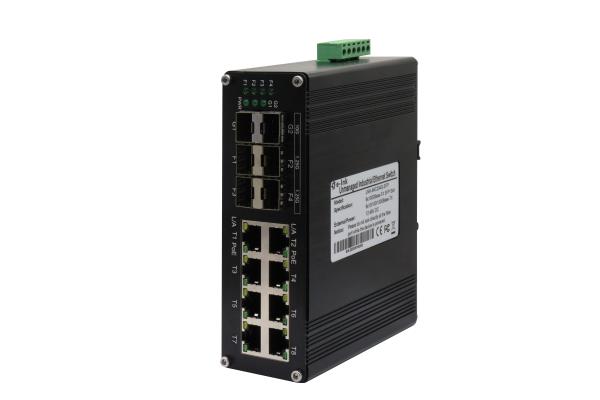

Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch

Overview

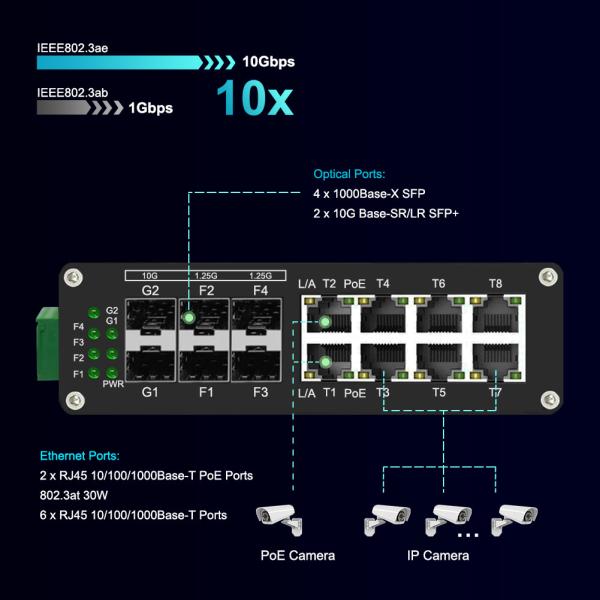

This industrial-grade Ethernet switch features 8× 10/100/1000Base-T PoE ports, 4× 1000Base-X SFP ports, and 2× 10G SFP+ ports. Each RJ45 port supports IEEE 802.3at PoE+, Full/Half duplex, and auto MDI/MDI-X.

The 4 Gigabit SFP ports support single-mode or multi-mode fiber (1-core or 2-core), and the 2 10GBase-SR/LR SFP+ ports support high-speed fiber uplinks, making it ideal for high-bandwidth remote applications.

With a rugged hardened design, it ensures stable performance in harsh environments, perfect for IP surveillance, wireless APs, and remote fiber networks.

Features

► 8x10/100/1000Base-T + 6x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► IEEE802.3af/at compliant

► Supports 802.3x Flow control

► 9K Bytes Jumbo Frame

► Redundant Power Inputs

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature


Technical Indexes

Ethernet
Standards: IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX/FX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-X
IEEE802.3p QoS
IEEE802.1d Spanning Tree
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory: 2.75M bits
Processing Type: Store-and-Forward
Max Packet Length: 9K Bytes Jumbo Frame
Address Table Size: 8K MAC Addresses
Interface
Connector: 8 x RJ45
Optical Port: 6 x 1000Base-X SFP
PoE (Power over Ethernet)
Standard: IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
ort: RJ45
Power Pin Assignment 4/5(+), 7/8(-)
PoE Budget: Up to 240-watt PoE budget
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption: 8W Max.(PoE in Use<240W)
Protection:
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
LED Indicators:
Power: Power Status
Ethernet(Per Port): Link/Activity
PoE (Optional) PoE Status

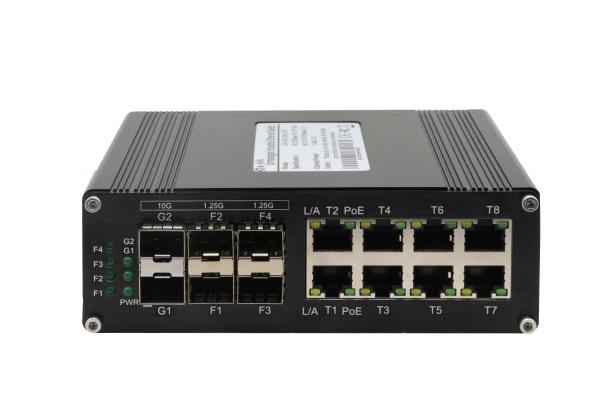

Fiber: Gigabit SFP Port: F1~F6

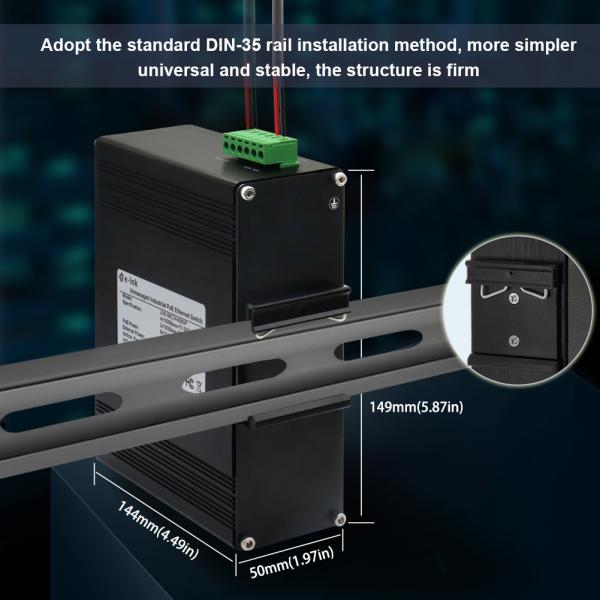

Dimensions (WxDxH): 149 x 114 x 50 mm
Weight: 0.55Kg
Casing: Aluminum Case

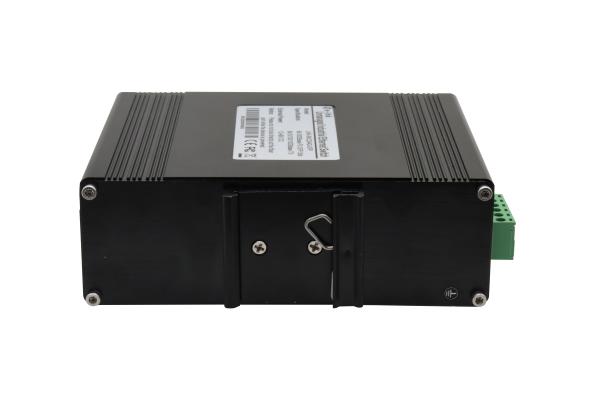

Mounting Options: DIN-Rail mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model Description

LNK-IMC2X4S8GP

Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed
Power Options ► DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.

Application

Industrial PoE Ethernet Switch 8× 10/100/1000Base-T PoE ports, 4× 1000Base-X SFP ports, and 2× 10G SFP+ ports
