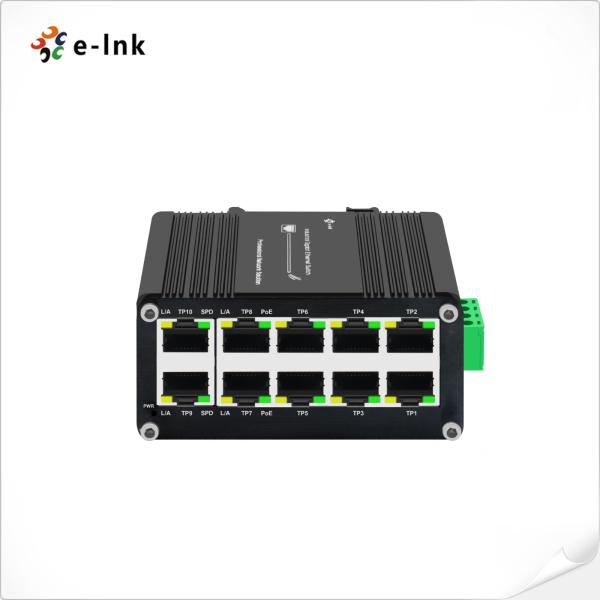

Micro Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Micro Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Micro Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Micro Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Micro Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Micro Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Micro Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Micro Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC010GP
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
US$39.9/pc
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Delivery Time :
3~5 working days
Packaging Details :
PoE Switch Standard Export Package
Product Name :
Industrial 10 Port PoE Switch
Data Rate :
10/100/1000Mbps
Connector :
10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 8 ports with 802.3at PoE+ injector function
Port :
RJ45
Input Power :
48~57VDC
Dimensions (WxDxH) :
95 x 88 x 46mm
Weight :
400g
Mounting Options :
DIN-Rail mount
Description

Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch

Overview

LNK-IMC010GP Industrial PoE+ Switch compact 10-port industrial switch combines
8×10/100/1000BASE-T PoE+ ports (802.3at, 30W/port) and 2×Gigabit uplinks in a space-saving design.
With 240W total PoE budget, 48-57V DC wide input, and -40~80°C operation, it delivers reliable power
and connectivity for harsh environments like factories and outdoor installations.
Key Features:
✓ 240W PoE+ output for high-power devices
✓ Fanless, noise-free IP40 metal housing
✓ Surge/EMI protection for industrial sites
Ideal for surveillance, ITS, and automation systems requiring rugged performance.
Micro Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch




































Features
Up to 8 ports of IEEE 802.3af/at devices powered
48~57V DC redundant power with reverse polarity protection
Supports DIN-Rail installation
10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
-40°C to 80°C (-40°F to 176°F) operating temperature
Industry standard design, dustproof and close design IP40, rugged high-strength metal case

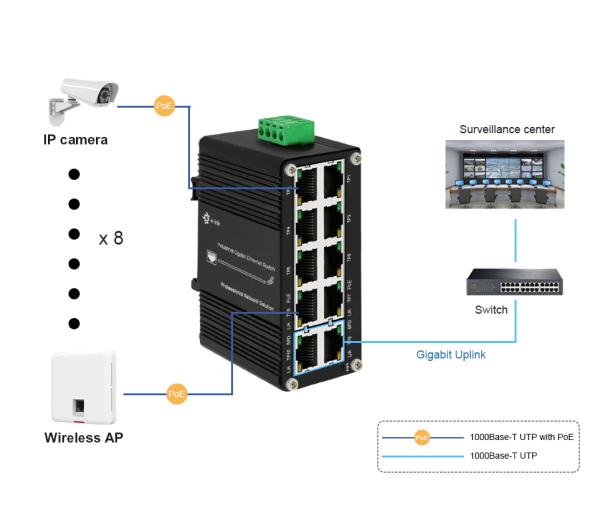

Application
Micro Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch






























Technical Indexes

Ethernet
Standards:IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer:2Mbits
Packet Length:9216bytes
MAC Address Table:4K entries
Switch Fabric:20Gbps/non-blocking
Switch Throughput (packet per second)14.88Mpps@64bytes
Interface
Connector:

10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
8 ports with 802.3at PoE+ injector function (Port 1 to 8)

PoE (Power over Ethernet)
Standard:

IEEE 802.3at Power over Ethernet Plus/PSE
IEEE 802.3af Power over Ethernet/PSE

Port:RJ45
Power Pin Assignment4/5(+), 7/8(-)
PoE Budget:Up to 240-watt PoE budget
Max. Number of Class 4 PDs8
Environmental
Operating Temperature:-40°C to 80°C (-40°F to 176°F)
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Relative Humidity:5% to 95% non-condensing
MTBF> 100,000 hrs
Electrical and Mechanical
Input Power:

48~57VDC
Redundant power with polarity reverses protection function

Power Consumption:<250W (Non-PoE<10W)
Power Input Overload:Automatic Resettable
Reverse Polarity:Present
Dimensions (WxDxH):95 x 88 x 46mm
Weight:400g
Casing:Aluminum Case
Mounting Options:DIN-Rail mount
LED Indicators:
PWRPower
L/ALink/Activity
SPDData Rate
PoEMax 30W per port
Regulatory Approvals
EMCCE (EN55032, EN55035)
EMIFCC Part 15 Subpart B
EMSEN61000-4-2 (ESD) EN61000-4-3 (RS)
EN61000-4-4 (EFT) EN61000-4-5 (Surge)
EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11
SafetyCE (EN60950-1)
Surge Protection8KV for PoE, RJ-45 and SFP ports
ShockIEC60068-2-27
FreefallIEC60068-2-32
VibrationIEC60068-2-6

























































Ordering Information

ModelDescription
LNK-IMC010GPMini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Mounting Options► Default DIN-Rail Bracket installed.
Power Options► Power Supply is to be purchased separately
Dimension&Size
