Specifications
Brand Name :
E-link
Model Number :
LNK-IMC005G Series
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1 PC
Price :
US$19.9/pc
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
2000 pcs/per month
Delivery Time :
2-7 working days
Packaging Details :
Industrial Ethernet PoE Switch Standard Export Package
Mounting Options :
DIN-Rail / Wall-mount
Dimensions (WxDxH) :
95 x 70x 29mm
Weight :
0.25Kg
Input Power :
12~48VDC (Terminal Block)
Power Consumption: :
<6W (PoE In Use: <125W)
Operating Temperature: :
-40°C to 80°C (-40°F to 176°F)
Description

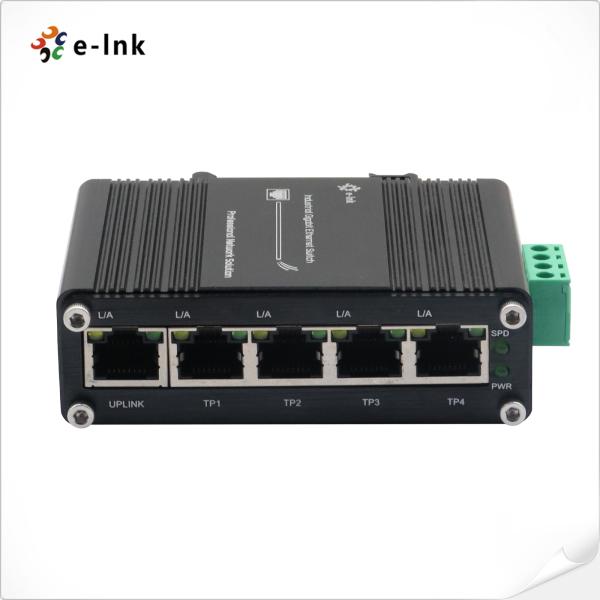

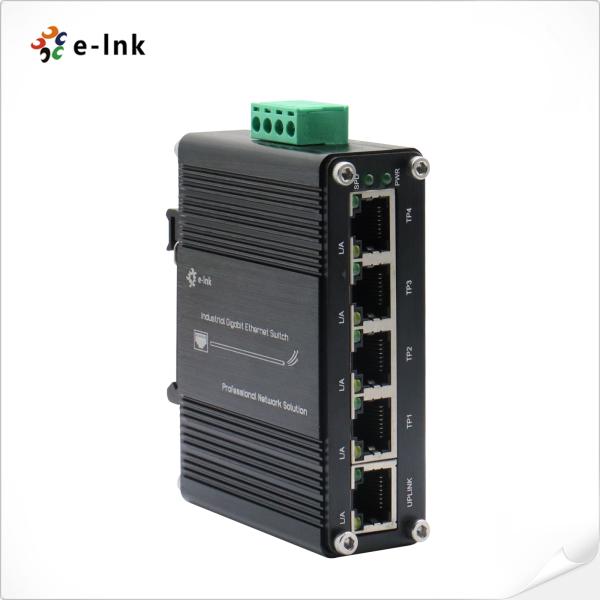

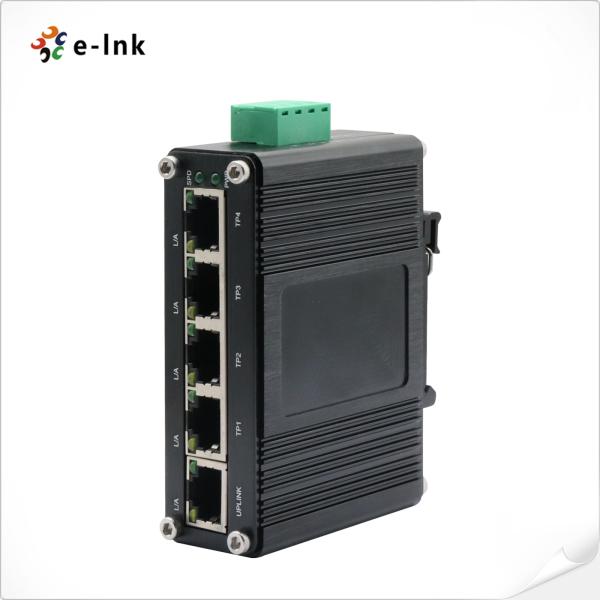

Mini Industrial 5-Port Gigabit (PoE) Ethernet Switch

Overview

The Mini Industrial 5-Port Gigabit Ethernet Switch is a compact, unmanaged switch designed for reliable performance in harsh industrial environments. Featuring 5 x 10/100/1000BASE-T ports and a 12~48V DC wide-range power input, this switch ensures stable operation against vibration, shock, and extreme temperatures.

Built to industrial-grade standards, it complies with CE and FCC certifications and has undergone a 100% burn-in test for guaranteed durability. With a wide operating temperature range, rugged design, and plug-and-play installation, it’s an ideal, cost-effective solution for industrial Ethernet connectivity in automation, transportation, and energy applications.


Features

► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48VDC wide range power input

► Supports 802.3x Flow control

► PoE Optional

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

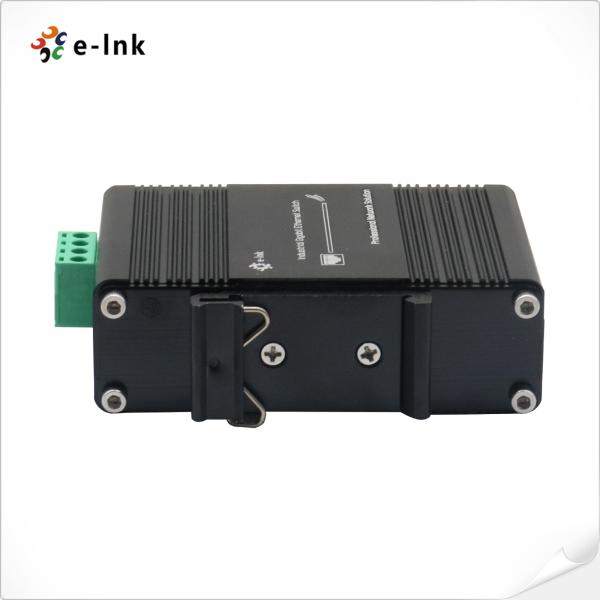

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3af/at Optional
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer: 1Mbits
Packet Length: 10Kbytes
MAC Address Table: 8K
Switch Fabric: 10Gbps/non-blocking
Exchange Property

Backplane bandwidth: 10Gbps;

Packet forwarding rate: 14.88Mpps
Connector: 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: <6W (PoE In Use: <125W)
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Dimensions (WxDxH): 95 x 70x 29m
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
LED Indicators:
PWR Power
L/A Link/Activity
SPD Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)


Ordeing Information

Model Description
LNK-IMC005G Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch
LNK-IMC005GP Mini Industrial 4-Port 10/100/1000T PoE + 1- Uplink Port Ethernet Switch
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately

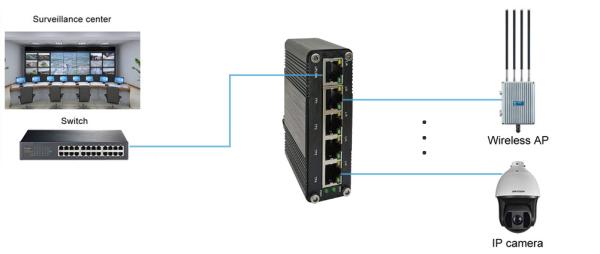

Application
Industrial 5-Port Gigabit Switch, Fanless, 12~48V DC, Plug-and-Play Design
