Specifications
Brand Name :
E-link
Model Number :
LNK-IMC010GPB
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PC
Price :
US$49.9/pc
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Delivery Time :
2~7 working days
Packaging Details :
Mini Industrial PoE Switch Standard Export Package
Product Name :
Industrial 10 Port PoE Switch
Input Power :
12~48VDC Redundant power with polarity reverses protection function
Dimensions (WxDxH) :
95 x 88 x 46mm
Weight :
400g
Mounting Options :
DIN-Rail mount
Power Consumption: :
<250W (Non-PoE<10W)
Description

Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch

Overview

The LNK-IMC010GPB Mini Compact Industrial 8-Port 10/100/1000T 802.3at PoE+ Switch is designed for narrow-space installations and harsh industrial environments. Offering 240W PoE+ output, this compact switch supports wire-speed Gigabit performance and is equipped with 8 IEEE 802.3at PoE+ ports and 2 10/100/1000BASE-T RJ45 uplink ports. It operates with a wide 12-48V DC input for power redundancy, making it ideal for power-sensitive industrial applications.

Built with a rugged IP40 metal housing, the switch offers immunity against electromagnetic interference and electrical surges, perfect for environments like factory floors or traffic control cabinets without air conditioning. Its fanless design ensures silent operation, while its operating temperature range from -40°C to 80°C guarantees reliability in even the toughest conditions. No software configuration is required, and it seamlessly supports both standard and high-powered devices.


Features

► 10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports

► Up to 8 ports of IEEE 802.3af/at devices powered

► Up to 240-watt PoE budget

► 12~48V DC redundant power with reverse polarity protection

► Supports 802.3x Flow control

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes

Ethernet
Standards:IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer:2Mbits
Packet Length:9216bytes
MAC Address Table:4K entries
Switch Fabric:20Gbps/non-blocking
Switch Throughput (packet per second)14.88Mpps@64bytes
Interface
Connector:

10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
8 ports with 802.3at PoE+ injector function (Port 1 to 8)

PoE (Power over Ethernet)
Standard:

IEEE 802.3at Power over Ethernet Plus/PSE
IEEE 802.3af Power over Ethernet/PSE

Port:RJ45
Power Pin Assignment4/5(+), 7/8(-)
PoE Budget:Up to 240-watt PoE budget
Max. Number of Class 4 PDs8
Environmental
Operating Temperature:-40°C to 80°C (-40°F to 176°F)
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Relative Humidity:5% to 95% non-condensing
MTBF> 100,000 hrs
Electrical and Mechanical
Input Power:

48~57VDC
Redundant power with polarity reverses protection function

Power Consumption:<250W (Non-PoE<10W)
Power Input Overload:Automatic Resettable
Reverse Polarity:Present

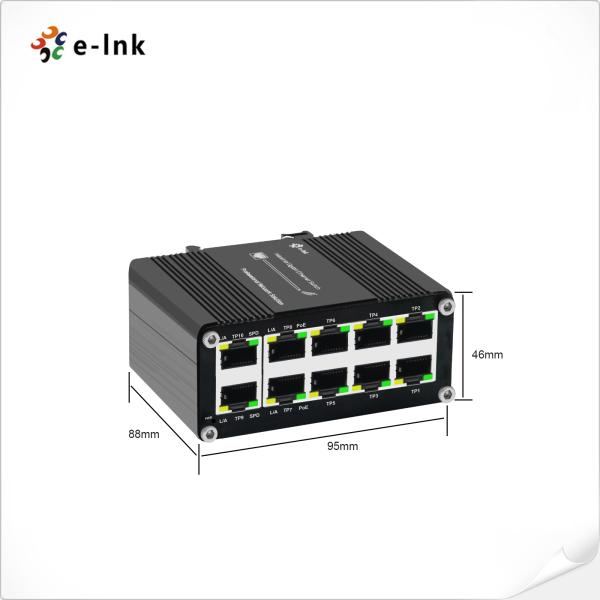

Dimensions (WxDxH):95 x 88 x 46mm
Weight:400g
Casing:Aluminum Case
Mounting Options:DIN-Rail mount
LED Indicators:
PWRPower
L/ALink/Activity
SPDData Rate
PoEMax 30W per port
Regulatory Approvals
EMCCE (EN55032, EN55035)
EMIFCC Part 15 Subpart B
EMSEN61000-4-2 (ESD) EN61000-4-3 (RS)
EN61000-4-4 (EFT) EN61000-4-5 (Surge)
EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11
SafetyCE (EN60950-1)
Surge Protection8KV for PoE, RJ-45 and SFP ports
ShockIEC60068-2-27
FreefallIEC60068-2-32
VibrationIEC60068-2-6































































Ordering Information

ModelDescription
LNK-IMC010GPBMini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Mounting Options► Default DIN-Rail Bracket installed.
Power Options► Power Supply is to be purchased separately
