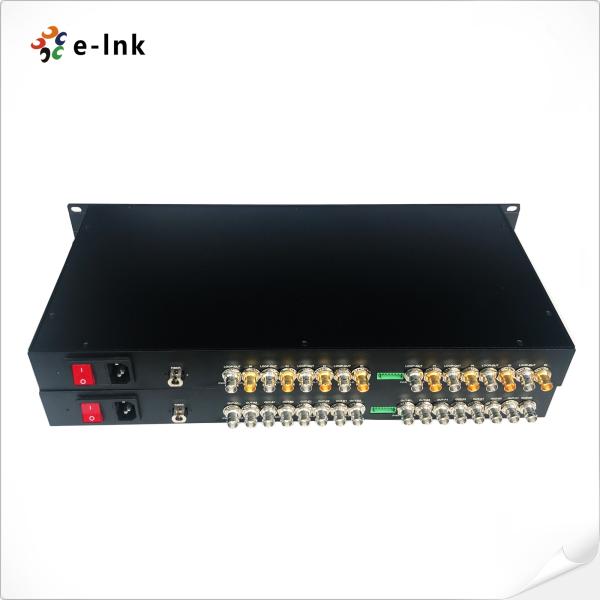

1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber WDM/CWDM/DWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber WDM/CWDM/DWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber WDM/CWDM/DWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber WDM/CWDM/DWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber WDM/CWDM/DWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber WDM/CWDM/DWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber WDM/CWDM/DWDM Uncompressed Extender
1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber WDM/CWDM/DWDM Uncompressed Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-SDI-8V
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 Pair
Price :
Negotiation
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Delivery Time :
3~5 working days
Packaging Details :
SDI Over Fiber Optic Extender Standard Export Package
Product Name :
SDI To Fiber Optic Converter
Power adaptor :
AC 110~220V
Power consumption :
<15W
Dimension :
483 x 270 x 45mm (19inch 1U)
Wavelength :
1310nm/1550nm
Operating Temperature :
-20℃～+70℃
Description

1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber CWDM Uncompressed Extender

Overview

LNK-SDI-8V Series is a high-performance 8-channel SD/HD/3G-SDI fiber optic transmission system,

capable of transmitting broadcast-quality video and CD-level audio over a single fiber cable. Each

unit includes a transmitter and receiver, supporting 1080P 3G-SDI signals with a local loop output

for real-time monitoring.

Key features include:
- 8-channel SD/HD/3G-SDI video transmission
- 1-channel reverse RS-485 data communication
- Single-fiber solution for efficient cabling
- High-quality video (up to 3G-SDI) and CD-grade audio

Ideal for broadcast, live production, and professional AV systems, this converter ensures reliable,

long-distance signal transmission with minimal latency.

Features

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Long transmission capability at least 10 km (6.2miles), up to 120 km

► super optic dynamic range and free of adjustment prior to use

► Real-time status LED indicators for troubleshooting and monitoring

► Directly compatible with 3G-SDI camera systems and support Reverse RS-485 data protocols

► Industry level ultra-broad temperature range, adaptable to various environments

Application

1U Rack-Mountable 8-Channel SD/HD/3G-SDI over Single Fiber WDM/CWDM/DWDM Uncompressed Extender

Technical Indexes

Fiber Optical interface
Fiber interface Simplex LC
Transmission distance 550m-20Km
Wavelength 1310nm/1550nm
Video
Video interface BNC
Video input/output impedance 75Ω
Video input/output voltage Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate Max 3.2Gb/s
Differential gain (10%～90% APL) <1%
SDI format support 625/25 PAL
525/29.97 NTSC, 525/23.98 NTSC
720p50, 720p59.94
1080i 23/24/30/50/59.94
1080P 23.98/24/30/50/60
Video SDI standard 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
Data
Physical interface Industrial standard screw terminal
Data type Reverse RS485
Frequency/Rate support Max. 57600bps for RS485
BER <10ˉ9
Electrical
Power adaptor AC 110~220V
Power consumption <15W
LED Indicator
SDI A/B/C/D/E/F/G/H SDI video
PWR Power Supply
Mechanical
Dimensions (LxWxH) 19inch 1U (483 x 220 x 44.45mm )
Weight 7KG/pair
Casing Aluminum Case
Mounting Options Rackmount
Environmental
Working Temperature -20℃～+70℃
Storage Temperature -40℃～+80℃
Working Humidity 0~95%
MTBF ≥100000 hours

Ordering Information

Model Description
LNK-SDI-8V 19" 1U 8-Ch HD-SDI Video with Loop-out, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs
LNK-SDI-8V1R 19" 1U 8-Ch HD-SDI Video with Loop-out + 1-Ch RS485 Reverse Data, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs
LNK-SDI-8V1A 19" 1U 8-Ch HD-SDI Video with Loop-out + 1-Ch Forward Audio, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs
LNK-3GSDI-8V 19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs
LNK-3GSDI-8V1R 19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out + 1-Ch RS485 Reverse Data, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs
LNK-3GSDI-8V1A 19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out + 1-Ch Forward Audio, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs
