Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m) HDCP 1.3
Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m) HDCP 1.3
Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m) HDCP 1.3
Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m) HDCP 1.3
Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m) HDCP 1.3
Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m) HDCP 1.3
Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m) HDCP 1.3
Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m) HDCP 1.3
Specifications
Brand Name :
E-link
Model Number :
LNK-MHDE-P50
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1 pair
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
2000 pairs/month
Delivery Time :
7 days
Packaging Details :
HDMI Extender Standard Export Package
Keywords :
Best HDMI extender over cat6
Resolution :
Max 1920X1080@60Hz
Standards :
HDMI 1.4; HDCP 1.3
Power Supply :
DC 5~12V
Housing Material :
Aluminum
Dimension :
51x45x18mm
Description

Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m)

Overview

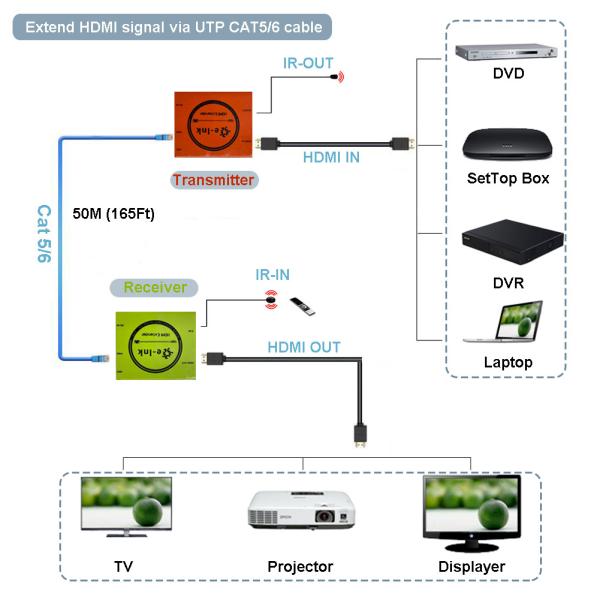

The LNK-MHDE-P50 Mini HDMI Extender enables full HD 1080p@60Hz signal transmission over

CAT5e/6 UTP cable up to 50 meters, providing a point-to-point extension solution. Featuring built-in

EDID for enhanced compatibility and stable performance, this compact TX & RX pair ensures

seamless HDMI signal transmission.

Ideal for HD conferencing, video production, digital signage, and multimedia education, this extender

offers long-distance transmission, cost-efficiency, easy installation, and reliable performance—making

it a practical choice for professional AV applications.

Features

Aluminum shell, ultra compact size and Slim design, more beautiful than other designs, strong

anti-interference

Support EDID pass-through

The highest resolutions supported is up to 1080P@60Hz

Support EDID pass-through

Application

Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m) HDCP 1.3

Technical Indexes

Parameter Description
Video Standards HDMI 1.4; HDCP 1.3
Maximum pixel clock 165MHz
Maximum data rate 6.75Gbps
Resolution Max: 1920X1080@60Hz
Connector HDMI-A
Impedance 100Ω
IR Interface 3.5mm earphone seat
Signal direction Unidirectional
Signal type Digital
IR frequency 38kHz
Ethernet Interface RJ45(568B)
Transmission distance 720P, UTP CAT6---80m
Transmission distance 1080P, UTP CAT6---50m
Other Power supply DC 5~12V
Power dissipation MAX 3W
Temperature Operating: -5℃ ~ +50℃
Humidity Operating: 5% ~ 90%
Dimension 51x45x18mm
Housing Material Aluminum
The warranty 1 year warranty

Ordering Information

Model Description of product
LNK-MHDE-P50 HDMI Over CAT5/CAT6 Extender with IR - 165 ft (50m), including 1 Transmitter & 1 Receiver, used by pairs
