Mini Industrial 10/100/1000Base-T with 60W PoE++ and 100/1000Base-X SFP Port Media Converter
Mini Industrial 10/100/1000Base-T with 60W PoE++ and 100/1000Base-X SFP Port Media Converter
Mini Industrial 10/100/1000Base-T with 60W PoE++ and 100/1000Base-X SFP Port Media Converter
Mini Industrial 10/100/1000Base-T with 60W PoE++ and 100/1000Base-X SFP Port Media Converter
Mini Industrial 10/100/1000Base-T with 60W PoE++ and 100/1000Base-X SFP Port Media Converter
Mini Industrial 10/100/1000Base-T with 60W PoE++ and 100/1000Base-X SFP Port Media Converter
Mini Industrial 10/100/1000Base-T with 60W PoE++ and 100/1000Base-X SFP Port Media Converter
Mini Industrial 10/100/1000Base-T with 60W PoE++ and 100/1000Base-X SFP Port Media Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC3012P60-SFP
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Delivery Time :
3~5 working days
Packaging Details :
Media Converter Standard Export Package
Product Name :
Industrial Ethernet Media Converter
Storage Temperature :
-40°C to 85°C (-40°F to 185°F)
Optical Port :
1 x SFP 1000Base-X or 100Base-FX (auto detection)
Dimensions :
95 x 70 x 30 mm
Input Power :
12~48VDC
Connector :
1x RJ45
Description

Mini Industrial 1-Port 100/1000X SFP to 1-Port 10/100/1000T 60W PoE++ Media Converter

Overview

The LNK-IMC3012P60-SFP is an industrial-grade DIN rail media converter that combines Gigabit Ethernet

conversion with 60W high-power PoE++ (IEEE 802.3at) capability. It features a 10/100/1000Base-T copper

port for network connectivity and a flexible 100/1000Base-X SFP slot, supporting various

single-mode/multi-mode fiber SFP modules (single/dual-core) for adaptable fiber deployment.

Designed for harsh environments, this hardened converter operates reliably across an extended

temperature range (-40°C to +75°C) and complies with EMC standards (EN55022) for industrial noise

immunity. The Ethernet port supports both half- and full-duplex modes, ensuring compatibility with diverse

network devices.

With its rugged DIN-rail design, 60W PoE++ power sourcing, and hot-swappable SFP flexibility, the

LNK-IMC3012P60-SFP is ideal for industrial automation, surveillance, and infrastructure projects requiring

robust media conversion with power delivery.

Features

► IEEE802.3af/at compliant

► Up to 60W of power over 4-pairs

► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant

► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

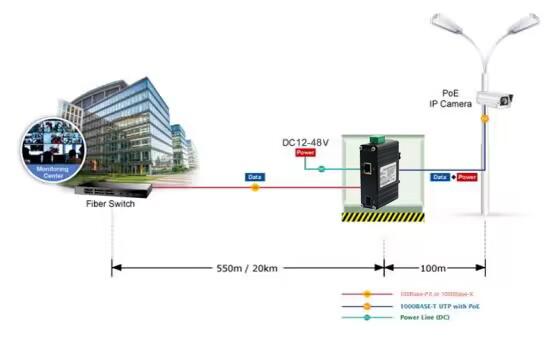

Application

Mini Industrial 10/100/1000Base-T with 60W PoE++ and 100/1000Base-X SFP Port Media Converter

Technical Indexes

Ethernet
Standards: IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
Processing Type: Store-and-Forward
Forward Filter Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory: 1 Mbit
Max Packet Length: 9K Bytes
Address Table Size 2048K MAC Addresses
Interface
Connector: 1x RJ45
Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power: 12~48VDC, 4-pin terminal block
Power Consumption: 65W Max.
LED Indicators:
PWR: Power Status
PoE: PD Plug Status
RJ45: LINK/Activity
SFP: LINK
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Environmental
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model Description
LNK-IMC3012P60-SFP Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter with 60W PoE++
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
