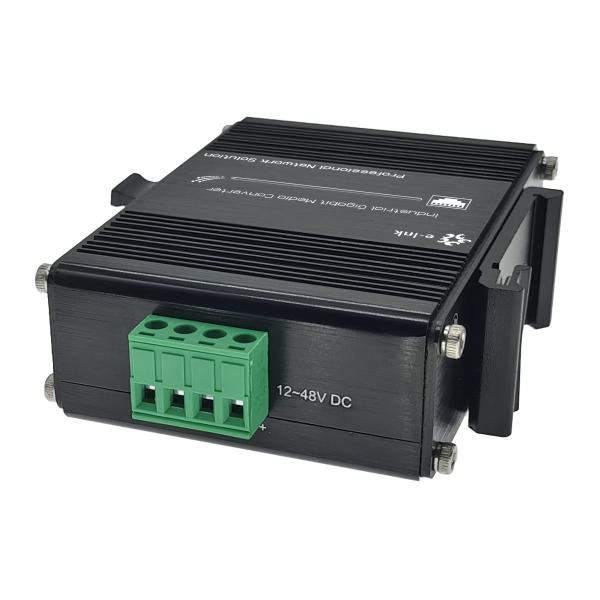

Aluminum RJ45 3W Mini Industrial Fiber Media Converter between 10/100BASE-T and 100BASE-FX Fiber.
Aluminum RJ45 3W Mini Industrial Fiber Media Converter between 10/100BASE-T and 100BASE-FX Fiber.
Aluminum RJ45 3W Mini Industrial Fiber Media Converter between 10/100BASE-T and 100BASE-FX Fiber.
Aluminum RJ45 3W Mini Industrial Fiber Media Converter between 10/100BASE-T and 100BASE-FX Fiber.
Aluminum RJ45 3W Mini Industrial Fiber Media Converter between 10/100BASE-T and 100BASE-FX Fiber.
Aluminum RJ45 3W Mini Industrial Fiber Media Converter between 10/100BASE-T and 100BASE-FX Fiber.
Aluminum RJ45 3W Mini Industrial Fiber Media Converter between 10/100BASE-T and 100BASE-FX Fiber.
Aluminum RJ45 3W Mini Industrial Fiber Media Converter between 10/100BASE-T and 100BASE-FX Fiber.
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1100 Series
Certification :
RoHS,CE,FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability :
Negotiation
Delivery Time :
5 days
Packaging Details :
Industrial Ethernet Media Converter Standard Export Package
Connector :
1x RJ45
Optical Port :
1 x SC 100Base-FX
Input Power :
12~48VDC, 2-pin terminal block
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25Kg
Casing :
Aluminum Case
Mounting Options :
DIN-Rail / Wall-mount
Operating Temperature :
-40°C to 75°C (-40°F to 167°F)
Description

Mini Industrial 10/100Base-T to 100Base-FX Media Converter

Overview

The LNK-IMC1100 Series is an industrial-grade media converter designed for reliable network

connectivity in harsh environments. It provides seamless conversion between 10/100BASE-T

copper Ethernet and 100BASE-FX fiber, ensuring stable data transmission across different media

types. Built to endure extreme conditions, this rugged device operates in a wide temperature range

(-40°C to 75°C) and features a durable aluminum housing for enhanced protection. The Ethernet port

supports both half- and full-duplex modes, offering flexible deployment options. With its hardened design,

the LNK-IMC1100 Series withstands demanding industrial applications while maintaining consistent

performance. For easy installation, it supports DIN rail mounting or placement in distribution boxes, making

it an ideal solution for industrial networking infrastructure.

Features

12~48VDC Terminal Block Power Input

Supports DIN-Rail & Wall-mount installation

Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

1-Port 10/100BASE-T RJ45 with auto MDI/MDI-X function

1-Port 100Base-FX SC

Extensive LED indicators for network diagnostics

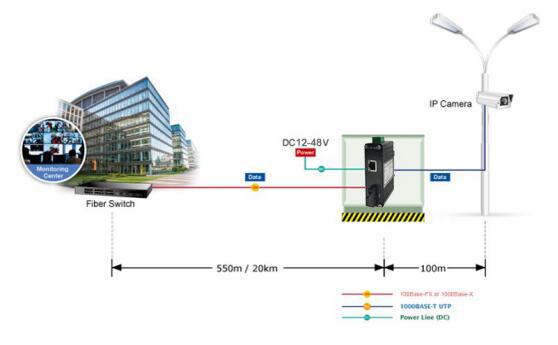

Application

Aluminum RJ45 3W Mini Industrial Fiber Media Converter between 10/100BASE-T and 100BASE-FX Fiber.

Technical Indexes

Ethernet
Standards: IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE802.3x Full duplex and flow control
Processing Type: Store-and-Forward
Forward Filter Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
Packet Buffer Memory: 128K bits
Max Packet Length: 1522 Bytes
Address Table Size 1K MAC Addresses
Interface
Connector: 1x RJ45
Optical Port: 1 x SC 100Base-FX
Electrical and Mechanical
Input Power: 12~48VDC, 2-pin terminal block
Power Consumption: 3W Max.
LED Indicators:
PWR: Power Status
L/A: Data LINK Status
SPD: Ethernet Status
100M/1000M: Fiber LINK Status
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Environmental
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model Description
LNK-IMC1100 Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Multi-mode, 2km, 1310nm, SC
LNK-IMC1100-20 Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, 20km, 1310nm, SC
LNK-IMC1100S-20 Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, Single Fiber, 20km, 1310/1550nm, SC
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
