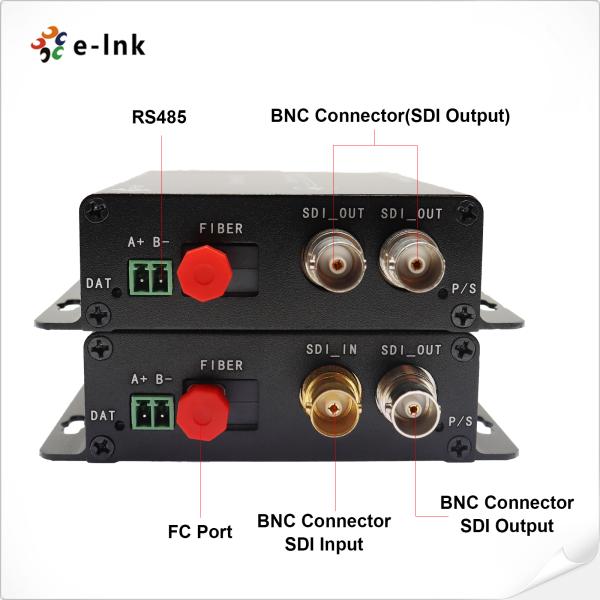

HD-SDI to Fiber Converter
Overview
The HD-SDI Fiber Converter enables transmission of 1-channel HD-SDI video (with embedded audio) and reversed RS422/485 data over a single fiber optic cable. It also supports local HD-SDI loop output for real-time monitoring. The solution includes one transmitter and one receiver, ensuring stable, high-quality signal transmission for broadcasting, security monitoring, and professional video applications.
Features
Technical Indexes
Fiber Optical interface | |
Fiber interface | Simplex FC |
Transmission distance | 550m-20Km |
Wavelength | 1310nm/1550nm |
Video | |
Video interface | BNC |
Video input/output impedance | 75Ω |
Video input/out put voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
Video Bits Rate | Max 3.2Gb/s |
Differential gain (10%~90% APL) | <1% |
Video SDI standard | 270Mbps(SD-SDI), SMPTE259M |
1.485Gbps/M(HD-SDI), SMPTE292M | |
Data | |
Physical interface | Industrial standard screw terminal |
Data type | RS422/RS485 Reverse Direction |
Frequency/Rate support | Max. 115200bps for RS422 |
BER | <10ˉ9 |
Electrical | |
Power adaptor | DC 5~25V |
Power consumption | <5W |
LED Indicator | |
P/S | Power Supply |
DAT | Data |
Mechanical | |
Dimensions (LxWxH) | 120 x 105 x 28 mm |
Weight | 0.43KG/pair |
Casing | Aluminum Case |
Mounting Options | Wall-mount |
Environmental | |
Working Temperature | -20℃~+70℃ |
Storage Temperature | -40℃~+80℃ |
Working Humidity | 0~95% |
MTBF | ≥100000 hours |
Ordering Information
Item | Description |
LNK-HD-110-20 | HD-SDI to Fiber Converter with RS422 reverse data and loop out, SMF, FC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |

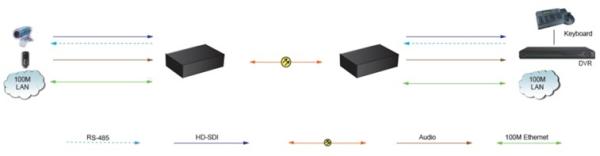

Application
