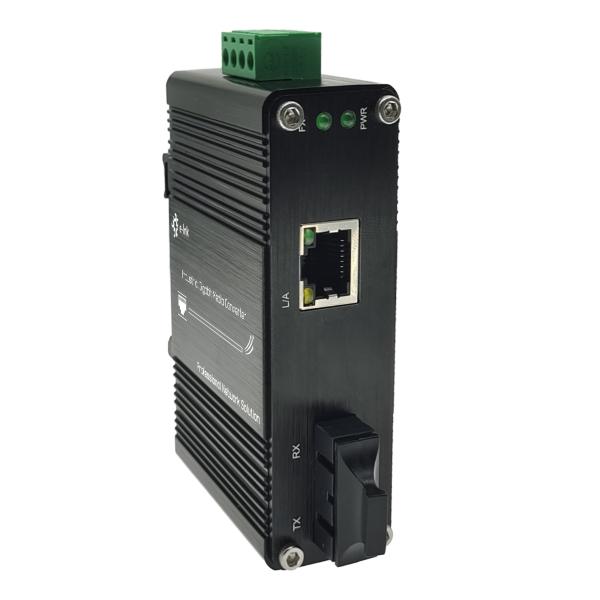

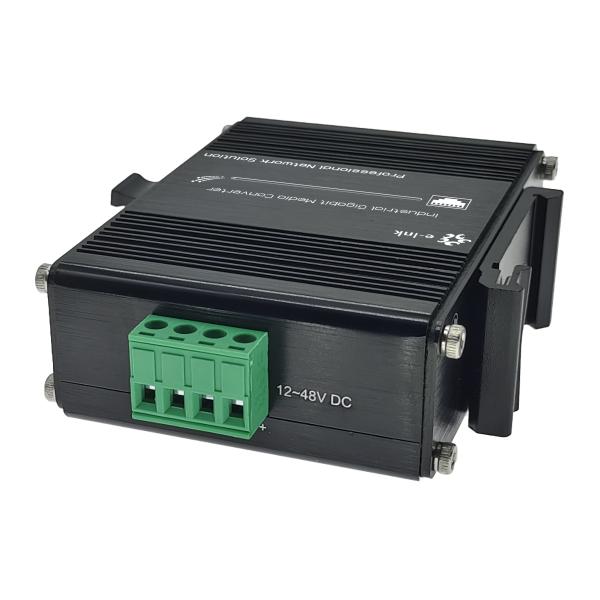

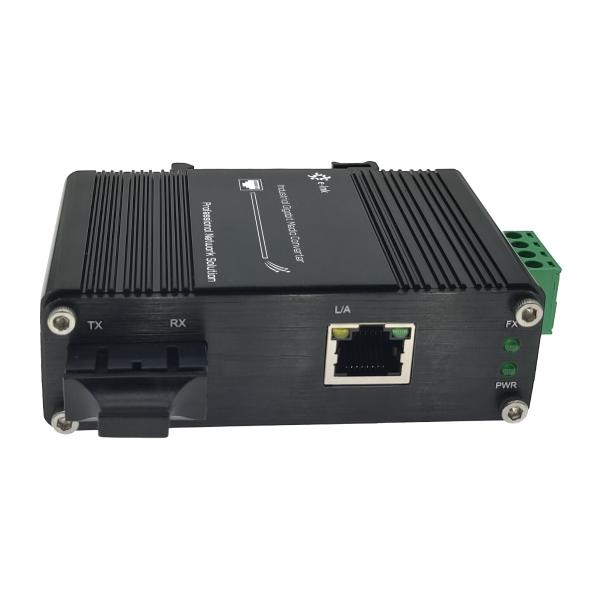

Industrial SFP Ethernet Fiber Converter with Wide Temperature Range DIN Rail Mount
Industrial SFP Ethernet Fiber Converter with Wide Temperature Range DIN Rail Mount
Industrial SFP Ethernet Fiber Converter with Wide Temperature Range DIN Rail Mount
Industrial SFP Ethernet Fiber Converter with Wide Temperature Range DIN Rail Mount
Industrial SFP Ethernet Fiber Converter with Wide Temperature Range DIN Rail Mount
Industrial SFP Ethernet Fiber Converter with Wide Temperature Range DIN Rail Mount
Industrial SFP Ethernet Fiber Converter with Wide Temperature Range DIN Rail Mount
Industrial SFP Ethernet Fiber Converter with Wide Temperature Range DIN Rail Mount
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC3012
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
USD $55-70
Payment Terms :
Paypal,TT,Western Union,MoneyGram,Alipay,L/C,D/A,D/P,T/T
Supply Ability :
2000pcs per month
Delivery Time :
2~7 working days
Packaging Details :
Industrial SFP Ethernet Media Converter Standard Export Package
Product Name :
Industrial Ethernet Media Converter
Optical Port :
1 x SC 1000Base-X
Input Power :
12~48VDC, 4-pin terminal block
Power Consumption :
3W Max
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25Kg
Description

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter


Mini Industrial Media Converter Overview

The LNK-IMC3012 Series Industrial Gigabit Media Converter is a reliable and efficient solution

for media conversion between 10/100/1000BASE-T copper ports and 1000BASE-X fibre ports.

This product has been designed to withstand challenging environmental conditions.

Its aluminium housing has been engineered to be highly durable, and it operates reliably in

a wide temperature range of -40°C to +75°C, making it suitable for a variety of industrial applications.

This hardened media converter supports both half-duplex and full-duplex modes,

and allows flexible fibre options (100M or 1000M) for greater compatibility with network devices.

The product's mounting options, which include a DIN rail and distribution box, ensure a simple

and secure installation process. This makes it ideal for use in industrial automation, transportation systems

and outdoor networking applications.


Mini Industrial Media Converter Features

The LNK-IMC3012 Series Industrial Gigabit Media Converter presents characteristics:


The device is equipped with one Gigabit Ethernet port, offering a connection speed of 10/100/1000BASE-T RJ45.

It features auto MDI/MDI-X for seamless connectivity.


The 1x Fiber SC Port – 1000Base-X facilitates high-speed fibre transmission and long-distance networking.

The product's flexible network performance supports full/half-duplex and auto-negotiation

for seamless data communication.


This product is energy-efficient and complies with the IEEE 802.3az Energy-Efficient Ethernet (EEE) standard,

which aims to reduce power consumption.


Comprehensive LED indicators provide real-time network status and diagnostics for easy monitoring.

This product boasts a wide power input range of 12~48VDC via terminal block, making it perfectly suited

to industrial power environments.


This product offers versatile mounting options, making it suitable for a range of installation types.

It is compatible with both DIN-Rail and wall-mount installation, ensuring a flexible deployment solution.


This product is characterised by its industrial-grade reliability, which is evidenced by its hardened design.


It has an extended operating temperature range of -40°C to +75°C (-40°F to +167°F), making it suitable

for harsh environments.


Mini Industrial Media Converter Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

1x RJ45

Optical Port:

1 x SC 1000Base-X

Electrical and Mechanical

Input Power:

12~48VDC, 4-pin terminal block

Power Consumption:

3W Max.

LED Indicators:

PWR:

Power Status

L/A:

Data LINK Status

SPD:

Ethernet Status

100M/1000M:

Fiber LINK Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)


Mini Industrial Media Converter Ordering Information

Model

Description

LNK-IMC3012

Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-SX, Multi-mode, 550m, 850nm, SC

LNK-IMC3012-20

Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-LX, Single-mode, 20km, 1310nm, SC

LNK-IMC3012-S20

Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-BX, Single-mode, Single Fiber, 20km, 1310/1550nm, SC

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.


Mini Industrial Media Converter Application Industrial SFP Ethernet Fiber Converter with Wide Temperature Range DIN Rail Mount
