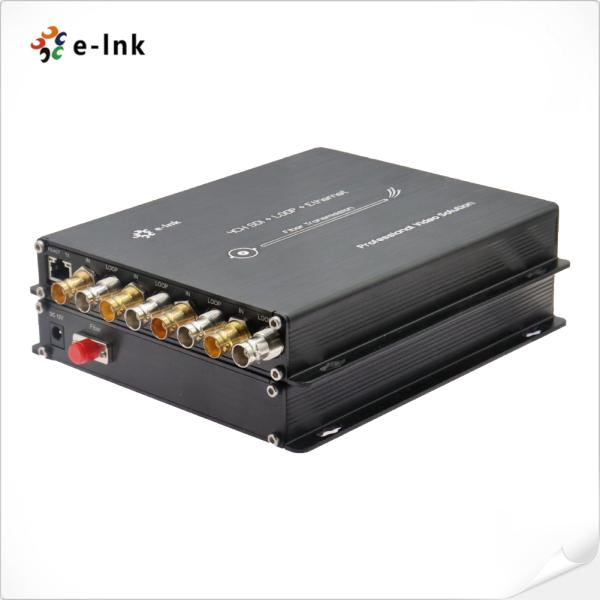

3G SDI Video Optical Converter 4 Channel Non Compressed Loop Out
3G SDI Video Optical Converter 4 Channel Non Compressed Loop Out
3G SDI Video Optical Converter 4 Channel Non Compressed Loop Out
3G SDI Video Optical Converter 4 Channel Non Compressed Loop Out
3G SDI Video Optical Converter 4 Channel Non Compressed Loop Out
3G SDI Video Optical Converter 4 Channel Non Compressed Loop Out
3G SDI Video Optical Converter 4 Channel Non Compressed Loop Out
3G SDI Video Optical Converter 4 Channel Non Compressed Loop Out
Specifications
Brand Name :
E-link
Model Number :
LNK-3GSDI-4V1N
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PC
Price :
USD $559-789
Payment Terms :
Paypal,TT,Western Union,MoneyGram,Alipay,T/T,D/P,D/A,L/C
Supply Ability :
1000pcs per month
Delivery Time :
3~5 working days
Packaging Details :
SDI Over Fiber Optic Extender Standard Export Package
Product Name :
SDI To Fiber Optic Converter
Power Input :
1A 12VDC
Ethernet :
10/100/1000Mbps
Transmission distance :
20km
Optics Type :
Single-mode
Operating Temperature :
-10℃～＋55℃
Description

4-Channel 3G-SDI Fiber Converter with Ethernet


4-Channel 3G-SDI Fiber Converter Overview


The LNK-3GSDI-4V1N Series is a professional-grade 4-Channel 3G-SDI Video over Fiber Converter designed

for HD/3G-SDI video, 1000Mbps Ethernet, and Tally signal transmission over a single optical fiber.

This solution includes one transmitter and one receiver unit, which enables high-quality 1080p video

to be delivered in real-time over long distances. The system has loop output, which means it can send

and receive signals while keeping them intact. This also allows you to check the system locally.

The video is broadcast-level, so it's perfect for live events, studio use, remote video and other professional applications.

The LNK-3GSDI-4V1N Series is small and strong. It is perfect for broadcasters, surveillance control centres,

and media production environments. It is reliable, has good signal quality, and can send signals over long distances.


4-Channel 3G-SDI Fiber Converter Features


The LNK-3GSDI-4V1N Series presents characteristics

► 4 channel 3G/HD-SDI video transmission over optic fiber

► Automatic cable equalization to ensure signal integrity

► Automatic reclocking 270Mbit/s -1.48Gbit/s-3Gbit/s

► Directly compatible with 3G/HD-SDI camera systems and support 4Ch Loop output

► Long transmission up to 20 km (12.5miles) (Other distance Optional)

► Full digital non-compression broadcast level transmission;

► Support 1000M Ethernet;

► Working temperature range (-10℃~+55℃)


4-Channel 3G-SDI Fiber Converter Technical Indexes


SDI Input

SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom

270Mbit/s - 1.48Gbit/s – 3Gbit/s

Input number: 4

Reflection loss: >15DB

Equilibrium: 0-150m @3Gb/s

Connector: BNC

Optics

Channel: 1

Type: single-mode

Transmission distance: 20km (Other distance Optional)

Reflection loss: > 15dB

Dithering: < 0.2UI

Connector: FC/UPC (SC, LC, ST optional)

SDI Output

Output number:4

Signal level: 800mV nominal

Rise/fall time: 200ps indication

Overshoot: < 10% amplitude

Reflection loss: >15dB

Dithering: < 0.2UI

Connector: 75Ω BNC

Ethernet

10/100/1000Mbps

Power and environmental indication

Operating temperature: -10℃～＋55℃

Power Input: 1A@12VDC

EMI/RFI: meet FCC Part 15 Class A, EU EMC standard

Average time trouble-free: >100000 hours

SDI video format supports

625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94;

1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;


4-Channel 3G-SDI Fiber Converter Ordering Information


LNK-HDSDI-4V1N

4-Ch HD-SDI Video with Loop output + 1 1000M Ethernet, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-3GSDI-4V1N

4-Ch 3G-SDI Video with Loop output + 1 1000M Ethernet , SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs
