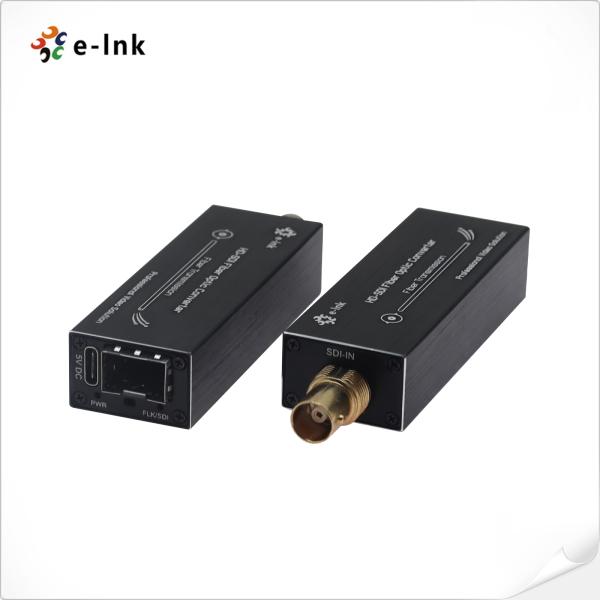

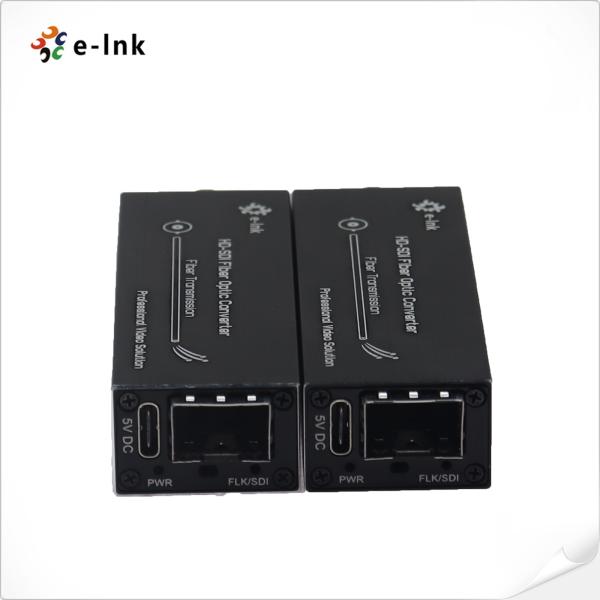

Mini HD-SDI to Fiber Converter Extender with Audio 20km Transmission
Mini HD-SDI to Fiber Converter Extender with Audio 20km Transmission
Mini HD-SDI to Fiber Converter Extender with Audio 20km Transmission
Mini HD-SDI to Fiber Converter Extender with Audio 20km Transmission
Specifications
Brand Name :
E-link
Model Number :
LNK-MHD
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pair
Price :
$28-$43
Payment Terms :
T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
SDI to Fiber Optic Extender Standard Export Package
Video Standard :
270Mbps SD-SDI, 1.485Gbps HD-SDI
Fiber Interface :
Simplex LC, SMF or MMF
Wavelength :
1310nm / 1550nm
Transmission Distance :
550m–20km
Power Supply :
DC 5V (Type-C), <3W
Dimensions :
79 × 27 × 18 mm
Description

Mini HD-SDI to Fiber Converter Extender with Audio, 20km Transmission

Overview

The LNK-MHD Series Mini HD-SDI Fiber Extender delivers uncompressed, broadcast-quality

HD-SDI video with embedded audio over a single LC fiber cable. Designed for professional

broadcasting, surveillance, and event production, it supports transmission distances up to

20km with automatic cable equalization and reclocking to ensure stable, high-quality signals.

Its compact aluminum housing, plug-and-play setup, and wide operating temperature range

make it ideal for both studio and field applications.

Features

Supports 1-channel HD-SDI video with embedded audio

Transmission distance up to 20km via LC fiber connector

Automatic cable equalization and reclocking for signal stability

Compact aluminum housing for durability and heat dissipation

Hot-swappable and plug-and-play for quick installation

Wide operating temperature range (-20℃ to +70℃) for harsh environments

Technical Indexes

Fiber Optical interface

Fiber interface

Simplex LC

Transmission distance

550m-20Km

Wavelength

1310nm/1550nm

Video

Video interface

BNC

Video input/output impedance

75Ω

Video input/output voltage

Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp

Video Bits Rate

Max 1.48Gb/s

Differential gain (10%～90% APL)

<1%

SDI format support

625/25 PAL

525/29.97 NTSC, 525/23.98 NTSC

720p50, 720p59.94

1080i 23/24/30/50/59.94

Video SDI standard

270Mbps (SD-SDI)

1.485Gbps (HD-SDI)

Electrical

Power adaptor

5V DC, Type-C Interface

Power consumption

<3W

LED Indicator

SDI

SDI video

P/T

Power Supply

Mechanical

Dimensions (LxWxH)

79 x 27 x 18 mm

Weight

0.5KG/pair

Casing

Aluminum Case

Mounting Options

Desktop

Environmental

Working Temperature

-20℃～+70℃

Storage Temperature

-40℃～+80℃

Operating humidity

5%~90% non-condensing

Storage humidity

5% ~ 90% non-condensing

MTBF

≥100000 hours

Ordering Information

Model

Description

LNK-MHD-MM

Mini HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs

LNK-MHD-20

Mini HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

Application

Mini HD-SDI to Fiber Converter Extender with Audio 20km Transmission
