Mini 12G-SDI to Fiber Converter with Tally, RS485, and 4K Signal Loop Output
Mini 12G-SDI to Fiber Converter with Tally, RS485, and 4K Signal Loop Output
Mini 12G-SDI to Fiber Converter with Tally, RS485, and 4K Signal Loop Output
Mini 12G-SDI to Fiber Converter with Tally, RS485, and 4K Signal Loop Output
Specifications
Brand Name :
E-link
Model Number :
LNK-M12G-1V1T1D
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pair
Price :
$365-$405
Payment Terms :
T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
SDI to Fiber Optic Extender Standard Export Package
Formats :
Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD), ST-259(SD)
Supported Resolution :
3840×2160@60Hz, 1080P, 1080I, 720P
Optical Transmission Bandwidth :
270MHz–12GHz
Power Supply :
5–15VDC, Max. 2W
Dimensions :
80×40×20mm
Operating Temperature :
-40℃ to 85℃
Description

Mini 12G-SDI to Fiber Converter with Tally, RS485, and 4K Signal Loop Output

Overview

This mini 12G-SDI to Fiber Converter delivers uncompressed, broadcast-quality video

transmission over long distances, supporting resolutions up to 3840×2160@60Hz. It

features embedded 8-channel audio, integrated reclocking, Tally signal support, and

backward RS485 data transmission. With a compact design, LC fiber connector, and

12G-SDI loop-out, it ensures stable, high-speed performance for professional broadcast,

live production, and video transport applications.

Features

Compact mini design with LC fiber connector for easy installation

Supports 12G/6G/3G/HD/SD-SDI formats and up to 4K×2K (3840×2160@60Hz) resolution

Integrated reclocking for stable, lossless signal transmission

Supports Tally signal and backward RS485 data communication

Long-distance optical transmission up to 80 km

Technical Indexes

Formats

Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)

Compatible

Compatible with DVB-ASI and AES10 (MADI)

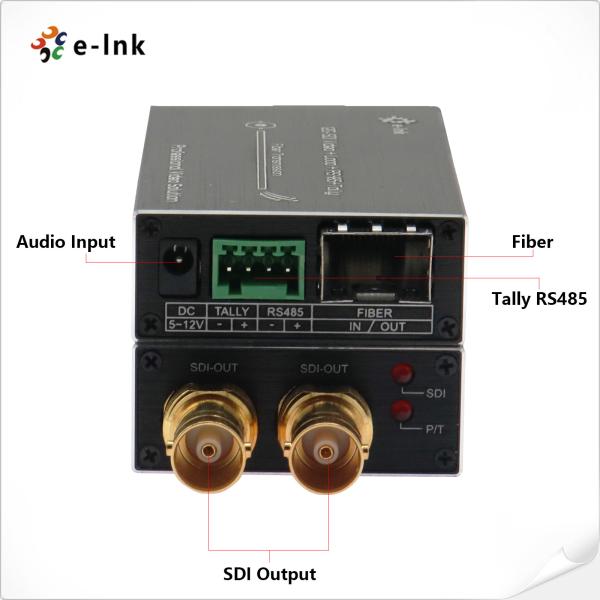

Input

1 x 12G-SDI on BNC

Output

1 x LC optical fiber

1 x 12G-SDI loop-out on BNC

Supported Resolution

HDTV 4K*2K, 1080P, 1080I, 720P

Resolution range

3840*2160@60Hz

Input cable specification

≤70m@12G SDI Belden 1694A

Output cable specification

≤70m@12G SDI Belden 1694A

Data type

Backward Tally

Data type

Backward RS485

Optical transmission bandwidth

270MHz～12GHz

Power

5-15 VDC

Power Consumption

2 W (Max.)

Dimensions (LxWxH)

80 x 40 x 20 (mm)

Storage Temperature

-40℃～80℃

Operating Temperature

-40℃～85℃

Ordering Information

Model

Description

LNK-M12G-1V1T1D-20

Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

Application

Mini 12G-SDI to Fiber Converter with Tally, RS485, and 4K Signal Loop Output
