Specifications
Brand Name :
E-link
Model Number :
LNK-3G-1V4H
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Delivery Time :
3~10 working days
Packaging Details :
SDI Over Fiber Optic Extender Standard Export Package
Product Name :
SDI To Fiber Optic Converter
Power adaptor :
DC 5V
Power consumption :
<5W
Dimension :
72 x 42 x 22 mm(TX) 164 x 72 x 38 mm(RX)
Wavelength :
1310nm/1550nm
Weight :
1.5KG/Pair
Description

1Ch 3G-SDI Fiber Extender with 4Ch HDMI Output

Overview

The LNK-3G-1V4H Series 3G-SDI Fiber Extender enables transmission of 1-channel 3G-SDI video,

while providing a local SDI loop-out for real-time monitoring. The system includes one transmitter with

SDI loop output and one receiver featuring 1 SDI output and 4 HDMI outputs, allowing simultaneous

multi-screen display. Ideal for broadcasting, live events, video conferencing, and security monitoring,

it delivers broadcast-quality, lossless video transmission over long distances.

Features

► Transmitter with 1Ch 3G-SDI input and loop out

► Receiver with 1Ch 3G-SDI output and 4Ch HDMI output

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with 3G-SDI camera systems

► Long transmission capability at least 10 km (6.2miles) , up to 80 km

► Terminal block power input; Hot swap and hot plug;

► Full digital non-compression broadcast level transmission;

► super optic dynamic range and free of adjustment;

► fiber optic WDM/CWDM/DWDM technique;

► industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;

Technical Indexes

Fiber Optical interface
Fiber interface Simplex LC
Transmission distance 550m-20Km
Wavelength 1310nm/1550nm
Video - SDI
Video interface BNC
Video input/output impedance 75Ω
Video input/out put voltage Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate Max 3.2Gb/s
Differential gain (10%～90% APL) <1%
Video SDI standard 270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
Video - HDMI
Connector Female HDMI type A
Impedance 100Ω
Resolution Up to 1920*1200@60Hz
HDMI Cable Range <5Meter
Electrical
Power adaptor DC 5V
Power consumption <5W
LED Indicator
PWR Power Supply
FLK Fiber Link
SDI SDI Video
HMI HDMI Video
Mechanical
Dimensions (LxWxH) Transmitter: 72 x 42 x 22 mm
Receiver: 164 x 72 x 38 mm
Weight 1.5KG/pair
Casing Aluminum Case
Mounting Options Desktop
Environmental
Working Temperature -20℃～+70℃
Storage Temperature -40℃～+80℃
Working Humidity 0~95%
MTBF ≥100000 hours

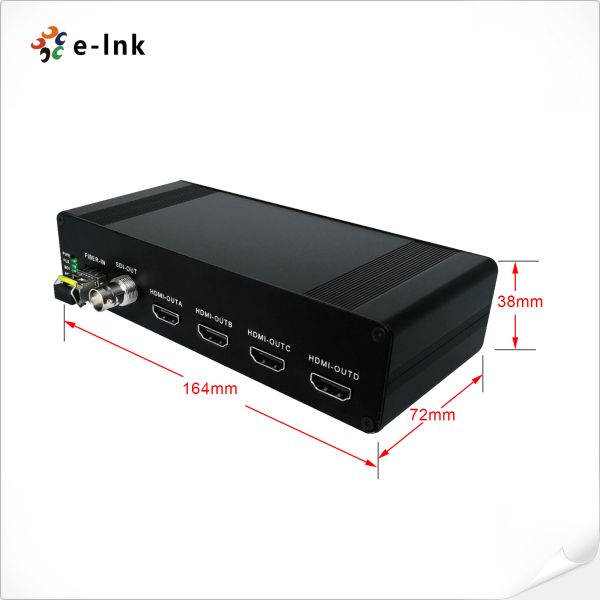

Dimension & Size

LNK-3G-1V4H 3G-SDI Video Over Fiber Converter with SDI Loop-Out and HDMI OutputsLNK-3G-1V4H 3G-SDI Video Over Fiber Converter with SDI Loop-Out and HDMI Outputs

Ordering Information

Model Description
LNK-3G-1V4H 3G-SDI Fiber Extender, Transmitter with 3G-SDI input and loop out, Receiver with 1Ch 3G-SDI output and 4Ch HDMI output, SMF, LC Fiber Connector 20KM, used by pairs

Application

LNK-3G-1V4H 3G-SDI Video Over Fiber Converter with SDI Loop-Out and HDMI Outputs
