Specifications
Brand Name :
E-link
Model Number :
The LNK-MDF100
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Delivery Time :
3~10 working days
Packaging Details :
DVI Over Fiber Optic Extender Standard Export Package
Product Name :
DVI To Fiber Optic Converter
Power supply :
The power adapter: DC 5V
Power consumption :
MAX 1.2W

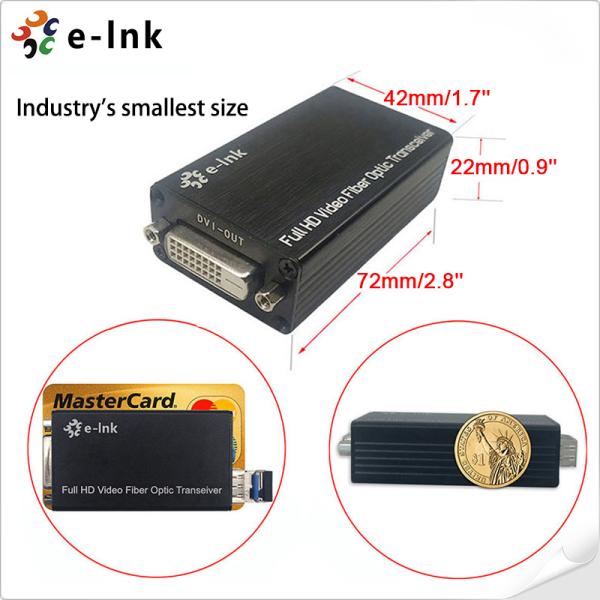

Dimension :
80 x 40 x 20 (mm)
Wavelength :
850nm/1310nm
Interface :
SFP model- LC connector
Description

Mini-type DVI Fiber Optic Extender with external stereo

Overview

The LNK-MDF100 Series Mini DVI Fiber Optic Extender enables long-distance transmission of high-quality DVI video signals over a single fiber optic cable. Compliant with DVI 1.0 specifications, it supports resolutions up to 1920×1200@60Hz, ensuring clear, stable, and secure video output. Its compact design and robust performance make it ideal for applications such as digital signage, video conferencing, control rooms, and other environments requiring reliable high-resolution video over long distances.

Features

► Transmits DVI video signals and audio up to 20km over a single fiber optic cable;

► Compliant with DVI 1.0 specifications ;

► Support 1920*1200 1080P@60Hz

► Special support 1600*1200 @60Hz

► Supporting pixel rates from 25MHz to 165MHz

► DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p

► PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play;

Technical Indexes

Parameter Description
Video Standards DVI1.0 3D; HDCP1.4
Maximum pixel clock 165MHz
Maximum data rate 6.75Gbps
Compliant

1080P@50/59.95/60Hz,( Max 1920*1200@60Hz)

DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i,1080p

PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA

Special support 1600*1200 @60HZ
Connector Female DVI-D
Impedance 100Ω
HDMI Cable Range <5Meter (Resolution up to 1920*1200@60Hz)
Audio Interface 3.5MM external stereo audio
Optical fiber Interface SFP model – LC connector
Fiber type Single-mode; Multi-mode
Wavelength 850nm/1310nm
Interface bandwidth 3Gbps
Transmission distance

Transmission@1920*1200@60Hz

Multi-mode fiber: <500M

Single-mode fiber: 20km
Other Power supply The power adapter: DC 5V
Power dissipation MAX 1.2W
Temperature Operating: -20℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension (LxWxH) 80 x 40 x 20 (mm)
Ordering Information
Model Description
LNK-MDF100 DVI Fiber Optic Extender with external stereo audio:1920*1200P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), Multimode fiber, 300m, including 1 transmitter & 1 receiver, used by pairs
LNK-MDF100S DVI Fiber Optic Extender with external stereo audio:1920*1200P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), single mode, single fiber, 20km, including 1 transmitter & 1 receiver, used by pairs
Panel & Interface
Compact Design DVI Over Fiber Optic Extender with 1920×1200@60Hz Support
Compact Design DVI Over Fiber Optic Extender with 1920×1200@60Hz Support
Compact Design DVI Over Fiber Optic Extender with 1920×1200@60Hz Support

Application

Compact Design DVI Over Fiber Optic Extender with 1920×1200@60Hz Support
