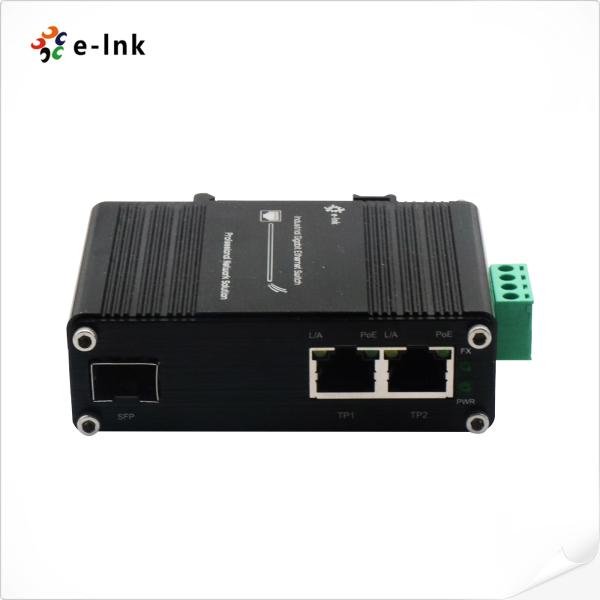

Micro Industrial 30W PoE+ DIN rail type 12~48VDC Terminal Block Power Input Media Converter
Micro Industrial 30W PoE+ DIN rail type 12~48VDC Terminal Block Power Input Media Converter
Micro Industrial 30W PoE+ DIN rail type 12~48VDC Terminal Block Power Input Media Converter
Micro Industrial 30W PoE+ DIN rail type 12~48VDC Terminal Block Power Input Media Converter
Micro Industrial 30W PoE+ DIN rail type 12~48VDC Terminal Block Power Input Media Converter
Micro Industrial 30W PoE+ DIN rail type 12~48VDC Terminal Block Power Input Media Converter
Micro Industrial 30W PoE+ DIN rail type 12~48VDC Terminal Block Power Input Media Converter
Micro Industrial 30W PoE+ DIN rail type 12~48VDC Terminal Block Power Input Media Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1200GP-SFP
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Delivery Time :
3~5 working days
Packaging Details :
Media Converter Standard Export Package
Connector :
2 x RJ45
Optical Port :
1 x SFP 1000Base-X or 100Base-FX (auto detection)
Input Power :
12~48VDC, 4-pin terminal block
Output Power :
48VDC
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25Kg
Description

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 30W PoE+ Media Converter

Overview
The LNK-IMC1200GP-SFP is a rugged DIN rail media converter designed for industrial applications.
This hardened-grade device features a 10/100/1000Base-T Ethernet port with high-power 30W PoE+
(IEEE 802.3at compliant) and a 100/1000Base-X SFP slot for flexible fiber connectivity. Supporting
operation in extreme temperatures from -40°C to +75°C, it accommodates various SFP modules
(single-mode/multi-mode, 1/2 core) to meet diverse networking requirements. The converter offers both
half-duplex and full-duplex modes and complies with EN55022 standards, ensuring reliable performance
in demanding environments while providing power to connected devices through its PoE+ capability.
Key improvements:
1. Better flow and readability
2. More professional technical description
3. Clearer organization of features
4. Stronger emphasis on industrial applications
5. More concise while maintaining all technical details
Features

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

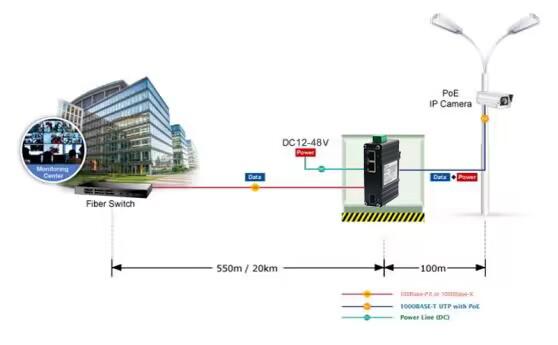

Application
Micro Industrial 30W PoE+ DIN rail type 12~48VDC Terminal Block Power Input Media Converter


























Technical Indexes

Ethernet
Standards:IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
Processing Type:Store-and-Forward
Forward Filter Rate:14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory:1 Mbit
Max Packet Length:9K Bytes
Address Table Size2K MAC Addresses
Interface
Connector:2 x RJ45
Optical Port:1 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power:12~48VDC, 4-pin terminal block
Output Power48VDC
Power Consumption:65W Max.
LED Indicators:
PWR:Power Status
L/A:Data LINK Status
POE:PoE Status
100M/1000M:Fiber LINK Status
Dimensions (WxDxH):95 x 70 x 30 mm
Weight:0.25Kg
Casing:Aluminum Case

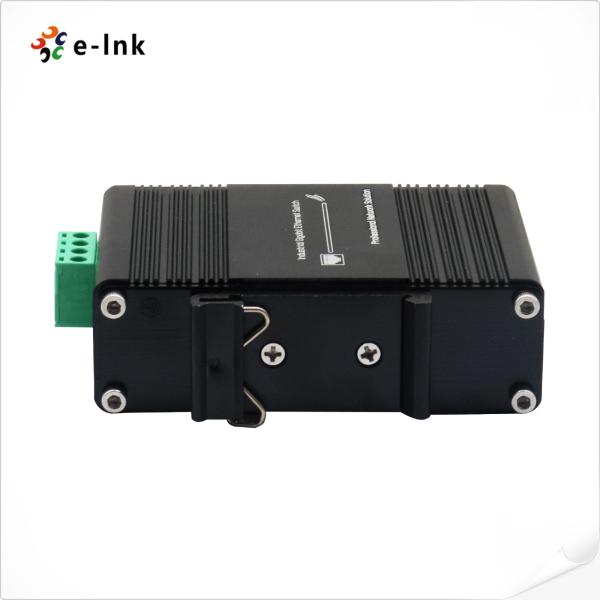

Mounting Options:DIN-Rail / Wall-mount
Environmental
Operating Temperature:-40°C to 75°C (-40°F to 167°F)
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Relative Humidity:5% to 95% non-condensing
MTBF> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS

EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010

EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

























































Ordering Information

ModelDescription
LNK-IMC1200GP-SFPHardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with PoE+
SFP Options► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
