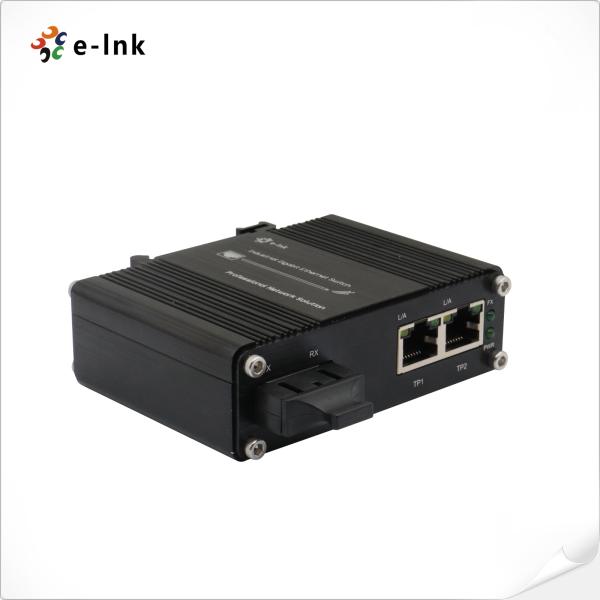

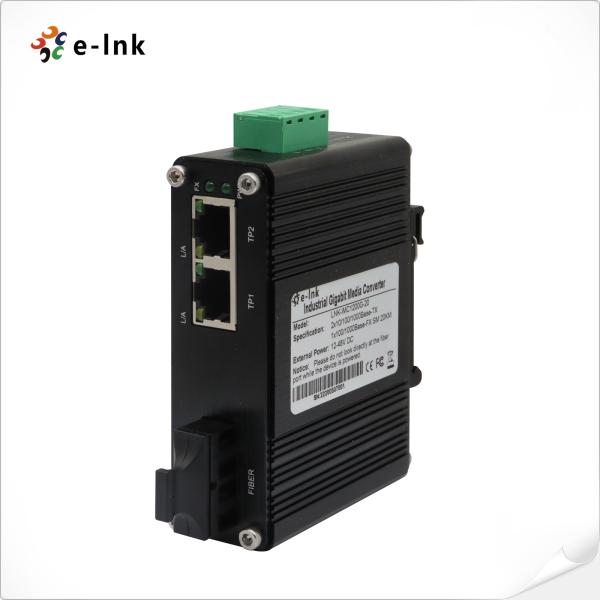

Mini Industrial 2-Port 10/100Base-TX to 100Base-FX DIN-Rail & Wall-mount Media Converter
Mini Industrial 2-Port 10/100Base-TX to 100Base-FX DIN-Rail & Wall-mount Media Converter
Mini Industrial 2-Port 10/100Base-TX to 100Base-FX DIN-Rail & Wall-mount Media Converter
Mini Industrial 2-Port 10/100Base-TX to 100Base-FX DIN-Rail & Wall-mount Media Converter
Mini Industrial 2-Port 10/100Base-TX to 100Base-FX DIN-Rail & Wall-mount Media Converter
Mini Industrial 2-Port 10/100Base-TX to 100Base-FX DIN-Rail & Wall-mount Media Converter
Mini Industrial 2-Port 10/100Base-TX to 100Base-FX DIN-Rail & Wall-mount Media Converter
Mini Industrial 2-Port 10/100Base-TX to 100Base-FX DIN-Rail & Wall-mount Media Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1200 Series
Certification :
ISO9001, CE, FCC, RoHS
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
5-8 days
Packaging Details :
Industrial Ethernet Media Converter Standard Export Package
Description

Mini Industrial 2-Port 10/100Base-TX to 100Base-FX Media Converter

Overview

The LNK-IMC1200 Series provides media conversion between 2-Port 10/100BASE-T and 1-Port

100BASE-FX Fiber. It’s a hardened product with wide operating temperature range from -40°C to 75°C,

and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode.

The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial

conditions, easy to mount on a DIN rail or in distribution boxes.

Features

► 12~48VDC Terminal Block Power Input

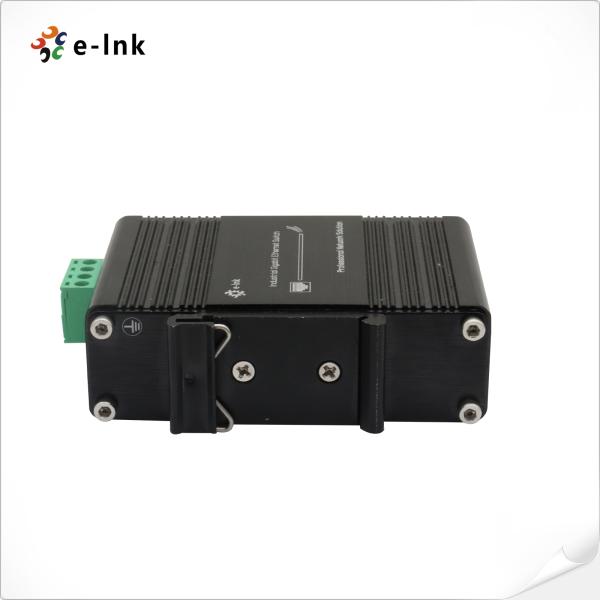

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 2-Port 10/100BASE-T RJ45 with auto MDI/MDI-X function

► 1-Port 100Base-FX SC

Application

Mini Industrial 2-Port 10/100Base-TX to 100Base-FX DIN-Rail & Wall-mount Media Converter

Technical Indexes

Ethernet
Standards: IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE802.3x Full duplex and flow control
Processing Type: Store-and-Forward
Forward Filter Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
Packet Buffer Memory: 128K bits
Max Packet Length: 1522 Bytes
Address Table Size 1K MAC Addresses
Interface
Connector: 2 x RJ45
Optical Port: 1 x SC 100Base-FX
Electrical and Mechanical
Input Power: 12~48VDC, 2-pin terminal block
Power Consumption: 5W Max.
LED Indicators:
PWR: Power Status
L/A: Data LINK Status
SPD: Ethernet Status
100M/1000M: Fiber LINK Status
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Environmental
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model Description
LNK-IMC1200 Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC1200-20 Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200-S20 Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
