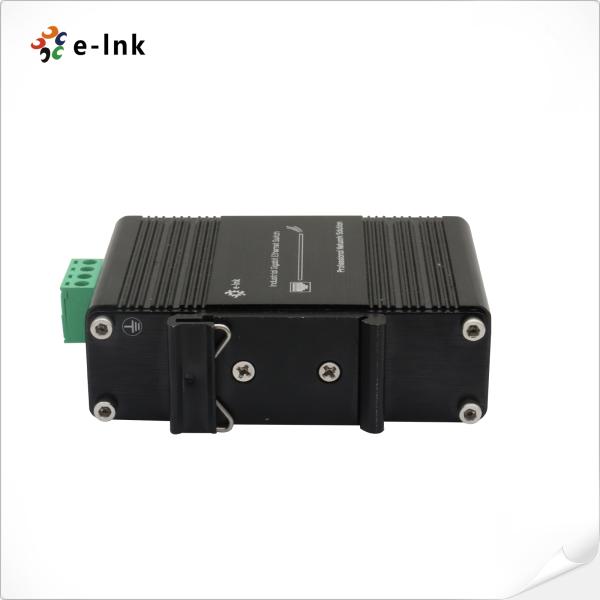

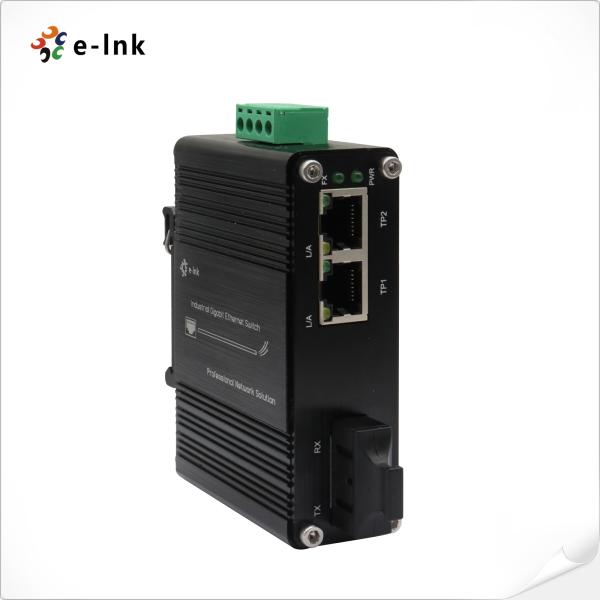

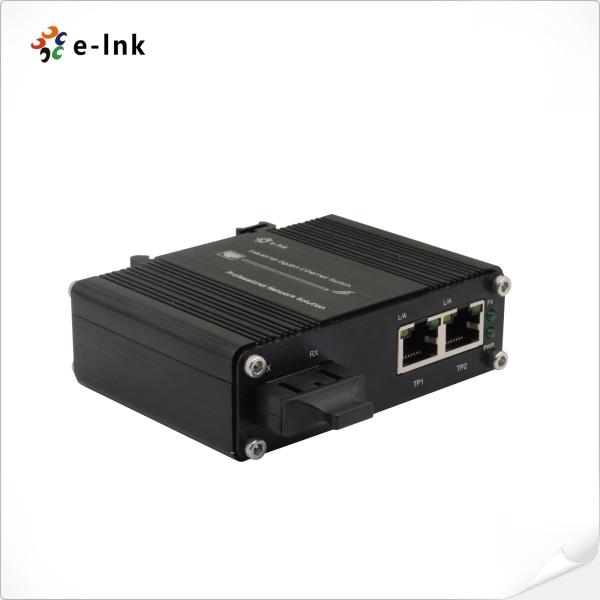

Mini Industrial 2 x RJ45 1 x SC 1000Base-X DIN-Rail / Wall-mount Media Converter
Mini Industrial 2 x RJ45 1 x SC 1000Base-X DIN-Rail / Wall-mount Media Converter
Mini Industrial 2 x RJ45 1 x SC 1000Base-X DIN-Rail / Wall-mount Media Converter
Mini Industrial 2 x RJ45 1 x SC 1000Base-X DIN-Rail / Wall-mount Media Converter
Mini Industrial 2 x RJ45 1 x SC 1000Base-X DIN-Rail / Wall-mount Media Converter
Mini Industrial 2 x RJ45 1 x SC 1000Base-X DIN-Rail / Wall-mount Media Converter
Mini Industrial 2 x RJ45 1 x SC 1000Base-X DIN-Rail / Wall-mount Media Converter
Mini Industrial 2 x RJ45 1 x SC 1000Base-X DIN-Rail / Wall-mount Media Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1200G Series
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Delivery Time :
3~5 working days
Packaging Details :
Media Converter Standard Export Package
Connector :
2 x RJ45
Optical Port :
1 x SC 1000Base-X
Input Power :
12~48VDC, 2-pin terminal block
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25Kg
Casing :
Aluminum Case
Description

Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter

Overview

The LNK-IMC1200G Series provides media conversion between 2-Port 10/100/1000BASE-T and

1-Port 1000BASE-X Fiber. It’s a hardened product with wide operating temperature range from -40°C

to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and

full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand

demanding industrial conditions, and easy to mount on a DIN rail or in distribution boxes.

Features

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 1000Base-X SC

Application

Mini Industrial 2 x RJ45 1 x SC 1000Base-X DIN-Rail / Wall-mount Media Converter

Technical Indexes

Ethernet
Standards: IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE802.3z 1000Base-X
Processing Type: Store-and-Forward
Forward Filter Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory: 1 Mbit
Max Packet Length: 9K Bytes
Address Table Size 2K MAC Addresses
Interface
Connector: 2 x RJ45
Optical Port: 1 x SC 1000Base-X
Electrical and Mechanical
Input Power: 12~48VDC, 2-pin terminal block
Power Consumption: 5W Max.
LED Indicators:
PWR: Power Status
L/A: Data LINK Status
SPD: Ethernet Status
100M/1000M: Fiber LINK Status
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aliuminum Case
Mounting Options: DIN-Rail / Wall-mount
Environmental
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model Description
LNK-IMC1200G Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC1200G-20 Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200G-S20 Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
