1Ch Bidirectional 3G-SDI with Loop-out + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter

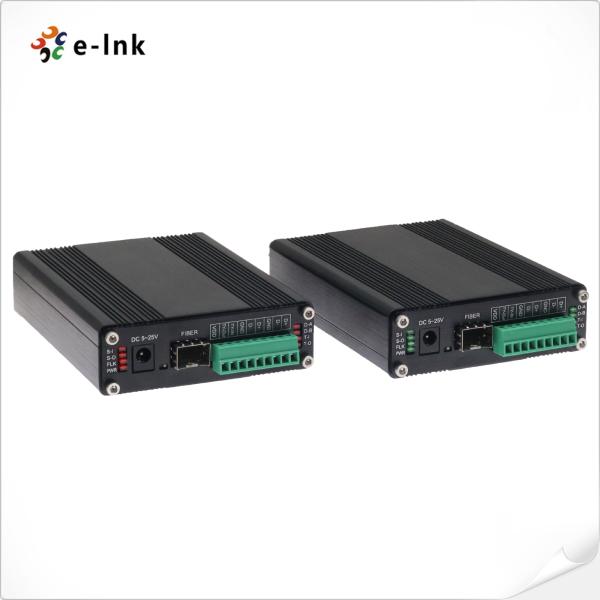

SDI Fiber Extender Overview

The LNK-3G-1BV1T2BD2A1M series is a high-performance 3G/HD-SDI video optical transceiver.

It supports one-channel bidirectional 3G/HD-SDI video transmission (with embedded audio) ,

video loop-out , one tally signal , two-channel bidirectional RS485/RS422 data , two-channel

external stereo audio , and one microphone signal , transmitting high-definition video

and audio signals over optical fiber.
This series includes one transmitter and one receiver, supporting 1080P Full HD 3G/HD-SDI signal

transmission , and offers high stability and clear images . LED status indicators are included on

the device for real-time monitoring of operating status.

Applicable to: intelligent traffic monitoring, security systems, industrial monitoring

(electricity, chemical industry, steel, oil, railway, etc.), military monitoring (warehouses, borders, etc.),

campus networks, stadium live broadcasts, TV program transmission and other high-demand video

and audio transmission scenarios.

SDI Fiber Extender Features

► 1Ch Bidirectional 3G-SDI Video with Loop-out

► 1Ch Tally Signal

► 2Ch Bidirectional RS485 or RS422 Data

► 2Ch Stereo Audio

► 1Ch Microphone

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Support HDTV 720P, 1080I, 1080P, 1920*1080@60Hz

► Long transmission capability up to 20km (SMF)

► Hot swap and hot plug;

► Fully digital non-compression broadcast level transmission;

► Industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;

SDI Fiber Extender Technical Indexes

Fiber Optical interface
Fiber interface Simplex LC
Transmission distance 0-20Km
Wavelength 1310nm/1550nm
Video
Video interface BNC
Video input/output impedance 75Ω
Video input/output voltage Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate Max 3.2Gb/s
Differential gain (10%～90% APL) <1%
SDI format support 625/25 PAL
525/29.97 NTSC, 525/23.98 NTSC
720p50, 720p59.94
1080i 23/24/30/50/59.94
1080P 23.98/24/30/50/60
Video SDI standard 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
Data or Tally
Physical interface Industrial standard screw terminal
Data type RS485 (Default) or RS422 (Optional), Tally signal
Frequency/Rate support

Max. 115200bps for RS422

Max. 57600bps for RS485
BER <10ˉ9
Stereo Audio or Microphone
Audio input and output 3.5MM Audio
Audio format @48KHz
Electrical
Power adaptor DC 5~25V
Power consumption <5W
LED Indicator
P/S Power Supply
DAT Data
Mechanical
Dimensions (LxWxH) 120 x 105 x 28 mm
Weight 1.5KG/pair
Casing Aluminum Case
Mounting Options Wall-mount
Environmental
Working Temperature -20℃～+70℃
Storage Temperature -40℃～+80℃
Working Humidity 0~95%
MTBF ≥100000 hours

SDI Fiber Extender Ordering Information

Model Description
LNK-3G-1BV1T2BD2A1M 1Ch Bidirectional 3G-SDI with Loop + 1Ch Tally + 2Ch Bidirectional RS485 or RS422 + 2Ch Stereo Audio + 1Ch Microphone over Fiber Converter, Single Mode Fiber, LC, 20km, including Transmitter and Receiver, used by pairs

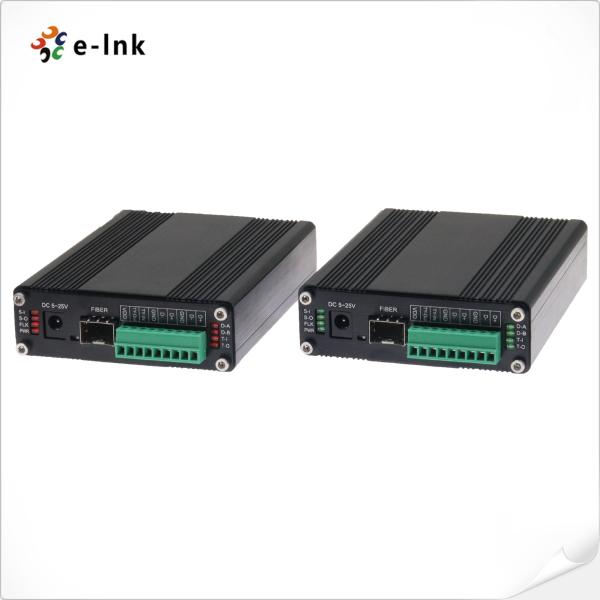

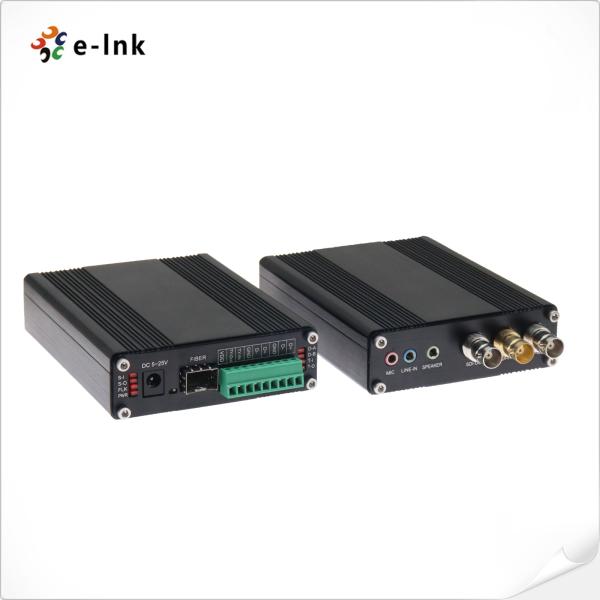

SDI Fiber Extender Panel

Industrial 3G/HD-SDI Fiber Converter with Bidirectional Audio, Tally and RS485 Data

Note:

1. To+/To- can drive the LED with current 50MA

2. TIN/TCM for Tally Signal connection
