Specifications
Brand Name :
E-link
Model Number :
LNK-M12G-1V1T1D
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability :
2000pcs/month
Delivery Time :
3-10working days
Packaging Details :
Mini 12G-SDI to Fiber Optic Converter Standard Export Package
Input :
1 x 12G-SDI on BNC
Supported Resolution :
HDTV 4K*2K, 1080P, 1080I, 720P
Operating Temperature :
-40℃～85℃
Dimensions (LxWxH) :
80 x 40 x 20 (mm)
Power :
5-15 VDC
Power Consumption :
2W (Max.)
Description

Mini 12G-SDI to Fiber Converter with Tally and RS485

Mini 12G-SDI to Fiber Converter Overview

This mini 12G-SDI fiber optic converter supports simultaneous transmission of one channel of 12G video

(with embedded audio), one channel of tally signal, and one channel of reverse RS485 control signal over

a single optical fiber. It also features a 12G loop-out port for local monitoring.

The E-link 12G fiber optic video converter consists of a transmitter and a receiver, supporting HD video resolutions

such as 4K×2K (3840×2160@60Hz), 1080P, 1080I, and 720P. It is suitable for broadcast, studio, live broadcast,

and HD post-production.

Mini 12G-SDI to Fiber Converter Features

► Each SDI channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or

Divide-by-1.001 Subrates and 270 Mbps

► Long transmission capability at least 10 km (6.2miles), up to 80 km

► Supports Tally and Backward RS485

► Supports hot swapping and hot plugging

► Full digital non-compression broadcast level transmission;

► super optic dynamic range and free of adjustment;

► fiber optic WDM/CWDM/DWDM technique;

►Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720P.

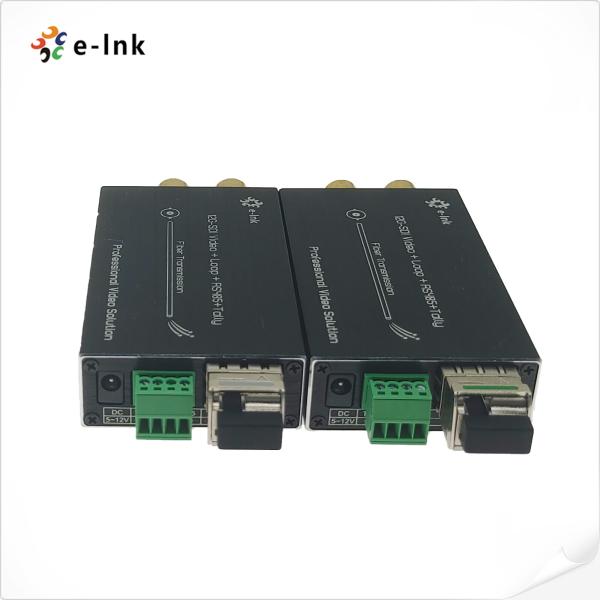

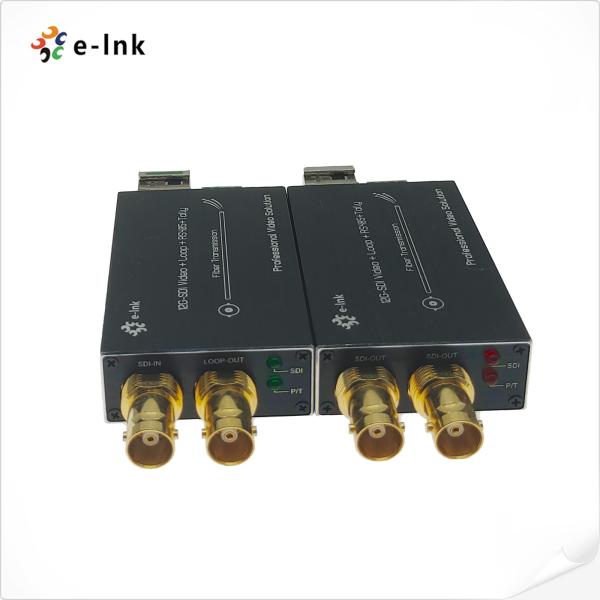

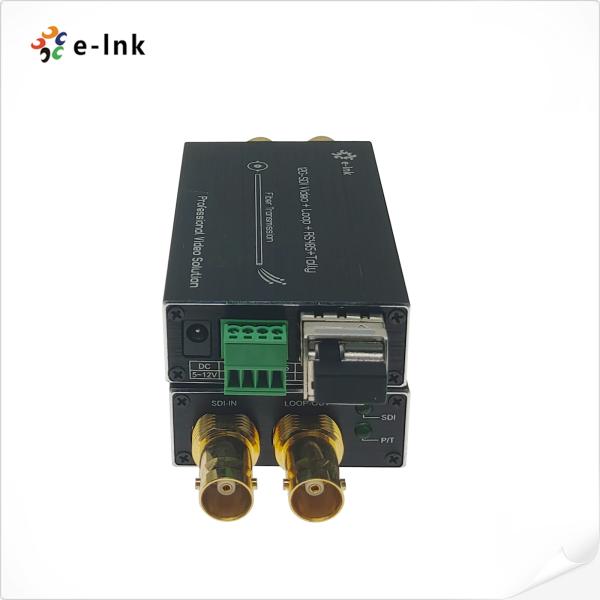

Mini 12G-SDI to Fiber Converter Panel & Interface

Mini 12G-SDI to Fiber Optic Converter with Audio, Tally, and RS485 Support

Mini 12G-SDI to Fiber Converter Features Technical Indexes

Formats Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible Compatible with DVB-ASI and AES10 (MADI)
Input 1 x 12G-SDI on BNC
Output 1 x LC optical fiber
1 x 12G-SDI loop-out on BNC
Supported Resolution HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range 3840*2160@60Hz
Input cable specification ≤70m@12G SDI Belden 1694A
Output cable specification ≤70m@12G SDI Belden 1694A
Data type Backward Tally
Data type Backward RS485
Optical transmission bandwidth 270MHz～12GHz
Power 5-15 VDC
Power Consumption 2 W (Max.)
Dimensions (LxWxH) 80 x 40 x 20 (mm)
Storage Temperature -40℃～80℃
Operating Temperature -40℃～85℃

Mini 12G-SDI to Fiber Converter Dimension & Size

Mini 12G-SDI to Fiber Optic Converter with Audio, Tally, and RS485 Support

Mini 12G-SDI to Fiber Converter Ordering Information

Model Description
LNK-M12G-1V1T1D-20 Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

Mini 12G-SDI to Fiber Converter Application

Mini 12G-SDI to Fiber Optic Converter with Audio, Tally, and RS485 Support
