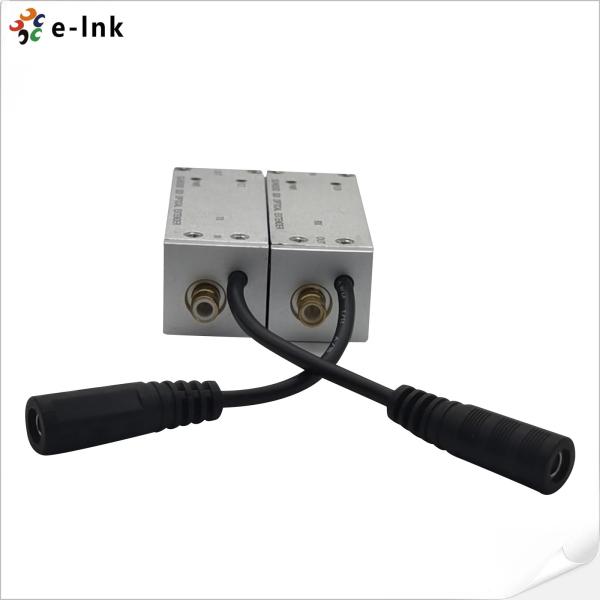

Mini 3G-SDI Fiber Converter Supports SMPTE Standards for HD/SD-SDI Transmission
Mini 3G-SDI Fiber Converter Supports SMPTE Standards for HD/SD-SDI Transmission
Mini 3G-SDI Fiber Converter Supports SMPTE Standards for HD/SD-SDI Transmission
Mini 3G-SDI Fiber Converter Supports SMPTE Standards for HD/SD-SDI Transmission
Mini 3G-SDI Fiber Converter Supports SMPTE Standards for HD/SD-SDI Transmission
Mini 3G-SDI Fiber Converter Supports SMPTE Standards for HD/SD-SDI Transmission
Mini 3G-SDI Fiber Converter Supports SMPTE Standards for HD/SD-SDI Transmission
Mini 3G-SDI Fiber Converter Supports SMPTE Standards for HD/SD-SDI Transmission
Mini 3G-SDI Fiber Converter Supports SMPTE Standards for HD/SD-SDI Transmission
Mini 3G-SDI Fiber Converter Supports SMPTE Standards for HD/SD-SDI Transmission
Mini 3G-SDI Fiber Converter Supports SMPTE Standards for HD/SD-SDI Transmission
Mini 3G-SDI Fiber Converter Supports SMPTE Standards for HD/SD-SDI Transmission
Specifications
Brand Name :
E-link
Model Number :
LNK-M3G-SMB1V-20
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
3-10working days
Packaging Details :
Mini 3G-SDI Fiber Converter Standard Export Package
Standard SM wavelength :
1310nm, 1550nm
Dimensions (LxWxH) :
58 x 21 x 20 mm
Power :
5V DC, 1A
Consumption :
<5W
Weight :
100g/Pair
Mounting Options :
Desktop
Description

SMB 3G/HD/SD-SDI Optical Micro-Extender

SDI Micro Extender Fiber Optic Overview

This 3G-SDI/HD-SDI/SD-SDI miniature fiber optic extender transmits a 3G-SDI, HD-SDI, SD-SDI,

or DVB-ASI high-definition digital video signal over single-mode or multimode fiber. Compliant with

SMPTE 424M, SMPTE 259M, SMPTE 297M, SMPTE 310M, and SMPTE 305M (SDTI) standards,

it utilizes advanced digital fiber optic transmission technology and requires no adjustments, making it easy

to install and operate. Powered by a low-power 5V power supply and compact in size, it's ideal for broadcast,

video production, and multimedia transmission applications.

SDI Micro Extender Fiber Optic Features

► 3G-SDI/HD-SDI/SD-SDI signal auto recognition, no manual selection necessary

► Transmission distance up to 120km

► CWDM technology to allow up to 16(18) channels to transmit over one fiber

► Compliant with SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M,

SMPTE344N

► Compliant with DVB-ASI(EN50083-9)

► Convenient instruction of LED status. Fiber link indicator, power.

► PCB board is environmentally friendly (Pb-free)

► PCB board with multilayer design to ensure stable and reliable signal transmission

SDI Micro Extender Fiber Optic Dimension & Size

Mini 3G-SDI Fiber Converter Supports SMPTE Standards for HD/SD-SDI Transmission

SDI Micro Extender Fiber Optic Technical Indexes

SDI Input
Video standard SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI)
Signal standard SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)
Resolution 10 Bit
Signal level <380mVp-p
Impedance 75Ω
Connector SMB
SDI output
Signal level 800mVp-p±10%
Rise/Fall time <0.8ns
HD-SDI Jitter <0.2UI(134ps)@100kHz, <1.0UI(673ps)@10Hz
SDI Jitter <0.2UI(740ps)@10Hz, 0.2UI(740ps)@1kHz
Impedance 75Ω
Connector SMB
Optical Interface
SFP Simplex LC, 3,125Gbps. ≤120km transmission distance
Standard SM wavelength 1310nm, 1550nm
CWDM wavelength 1270~1610nm, 20nm grid according ITU-T
Temperature range 0~70˚C
Electrical
Power 5VDC, 1A
Consumption <5W
LED Indicator
FLT Fiber link status (Transmitter)
FLR Fiber link status (Receiver)
PWR Power status
Mechanical
Dimensions (LxWxH) 58 x 21 x 20 mm
Weight 100g/pair
Casing Aluminum Case
Mounting Options Desktop
Environmental
Working Temperature -20℃～+70℃
Storage Temperature -40℃～+80℃
Working Humidity 0~95%
MTBF ≥100000 hours

SDI Micro Extender Fiber Optic Ordering Infromation

Model Description
LNK-M3G-SMB1V-20 SMB 3G/HD/SD-SDI Optical Micro-Extender, 1310/1550nm, Simplex LC, Single Mode, 20KM including Transmitter and Receiver, used by pairs

SDI Micro Extender Fiber Optic Application

Mini 3G-SDI Fiber Converter Supports SMPTE Standards for HD/SD-SDI Transmission
