Specifications
Brand Name :
E-link
Model Number :
LNK-IPE104-30
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal
Supply Ability :
1000pcs/month
Delivery Time :
3-10working days
Packaging Details :
Industrial Gigabit PoE Extender Standard Export Package
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25Kg
Forwarding Modes :
Store and Forward
Transmission Distance :
100m
Mounting Options :
DIN-Rail / Wall-mount
Description

Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender

Industrial PoE Extender Overview

The LNK-IPE104-30 is an industrial-grade, 1-input, 4-output PoE extender designed for

point- to-multipoint PoE applications . It draws up to 30W of power from one 802.3at PoE+ input port

and provides a total of 25W of PoE power to four PoE output ports . This device extends

the Gigabit Ethernet data and PoE power range from the standard 100 meters to 200 meters ,

and can simultaneously power up to four powered devices (PDs) such as network cameras

and wireless access points. Requiring no external power supply, the LNK-IPE104-30 supports

plug-and-play operation, easily expanding the number of PoE ports and reducing cabling costs.

It is suitable for a variety of scenarios, including security surveillance, wireless network coverage,

and industrial automation.

Industrial PoE Extender Features

► 10/100/1000Mbps Ethernet Ports

► 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE

► IP40-rated aluminum case

► Can be Powered by IEEE 802.3at 30W Power Sourcing Equipment

► Can Power IEEE 802.3af PoE, IEEE 802.3at Powered Devices

► Extends an additional 100m for PoE network. Daisy chain support connection up

to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.)

► Support DIN-Rail & Wall-mount installation

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

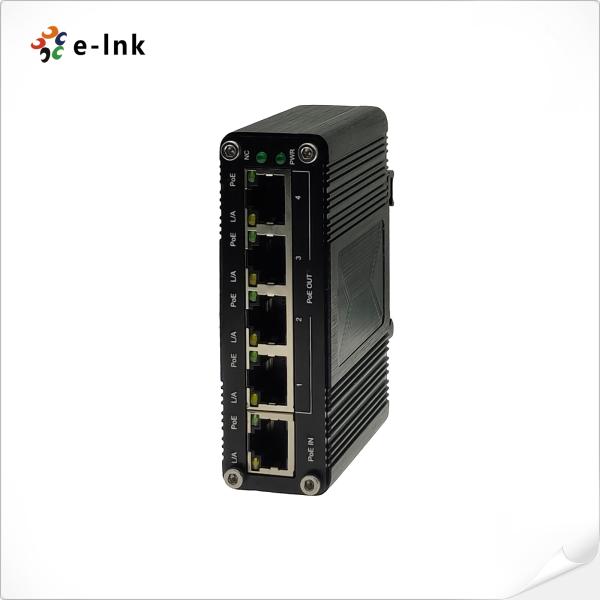

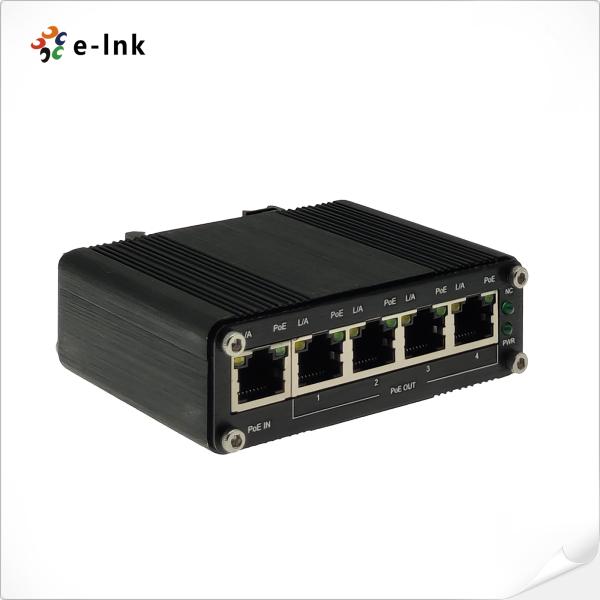

Industrial PoE Extender Panel

Industrial 1-In 4-Out Gigabit PoE Extender, IEEE 802.3at PoE+, 200m Extension

Industrial PoE Extender Technical Indexes

Ethernet Port
PoE Input Port

10/100/1000Base-TX RJ45,

IEEE 802.3at PoE Input

Input Power 50~57V DC, Max 30W
PoE Output Port

1*10/100/1000Base-TX RJ45, IEEE 802.3af/at PoE Output

Output Power: Max 25.5W in total, 25.5W@ 101m, 20W@ 200m
Cascade connection Support 3 grade
Power over Ethernet
PoE Standard

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus
PoE Power Supply Type Mid-span and End-span
PoE Pin Assignment 1/2(+), 3/6(-),4/5(+), 7/8(-)
Switch Property
Standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Flow Control
Forwarding Modes Store and Forward
Transmission Distance 100m
MAC Table 8K
Switching Capacity 10Gbps
Packet Forwarding Rate 14.88Mpps
Flow Control IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame 10K bytes
Environment
Surge Immunity 6KV, Standard: IEC6000-4-5
ESD Protection

6KV 1a Contact Discharge Level 3,

8KV 1b Air Discharge Level 3,

Standard: IEC61000-4-2
Protection Level IP 40
Operating Temperature -40°C to 80°C (-40°F to 176°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 0~95% (non-condensing)
Physical Parameter
Dimensions (WxDxH) 95 x 70 x 30 mm
Weight 0.25Kg
Casing Aluminum Case
Mounting Options DIN-Rail / Wall-mount
Certifications
Certifications CE, FCC, RoHS

Industrial PoE Extender Ordering Information

Model Description
LNK-IPE104-30 Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender

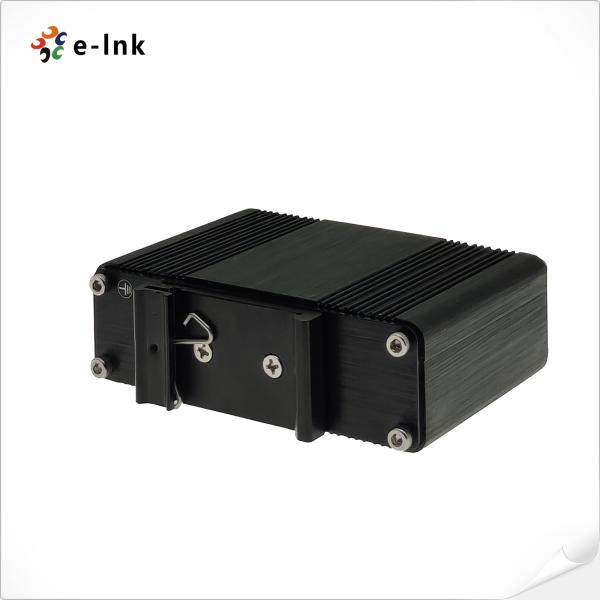

Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

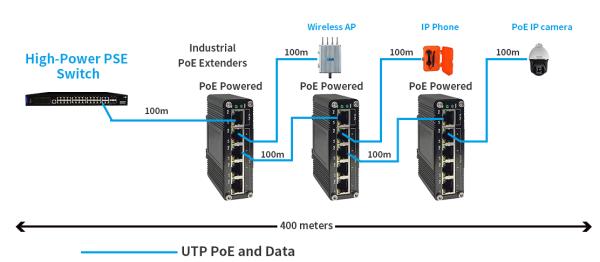

Industrial PoE Extender Application
