Specifications
Brand Name :
E-link
Model Number :
LNK-12GSDI-1V2R1GE
Certification :
ISO9001, CE, RoHS, FCC
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Delivery Time :
3~10 working days
Packaging Details :
SDI Over Fiber Optic Extender Standard Export Package
Product Name :
SDI To Fiber Optic Converter
Power :
12 VDC
Power consumption :
6 W (Max.)
Dimension :
117 x 80 x 24 (mm)
Data type :
2Ch Backward RS485
Resolution range :
3840*2160@60Hz
Description

12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485

SDI Over Fiber Optic Extender Overview

The LNK-12GSDI-1V2R1GE series is a high-performance 12G-SDI optical transceiver .

It supports one channel of 12G-SDI video (with embedded audio) , one channel of Gigabit Ethernet ,

and two channels of reverse RS485 data transmission over a single fiber optic cable,

enabling long-distance transmission and providing 12G-SDI local loopback monitoring .
This product includes one transmitter and one receiver , supporting a variety of video formats,

including HDTV 4K×2K (3840×2160@60Hz), 1080P, 1080i, and 720P , ensuring ultra-high-definition

image quality and low latency. It is ideal for broadcasting, studios, sports events, medical imaging,

video conferencing, and high-end surveillance systems.

SDI Over Fiber Optic Extender Features

► Each SDI channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)

► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps

or Divide-by-1.001 Subrates and 270 Mbps

► Directly compatible with 12G/6G/3G-SDI camera systems

► Long transmission capability up to 80 km

► Support 2Ch Backwards RS485

► Supports 1Ch 10/100/1000M Ethernet

► Full digital non-compression broadcast level transmission;

► Super optic dynamic range and free of adjustment;

► Fiber optic WDM/CWDM/DWDM technique;

► Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720P.

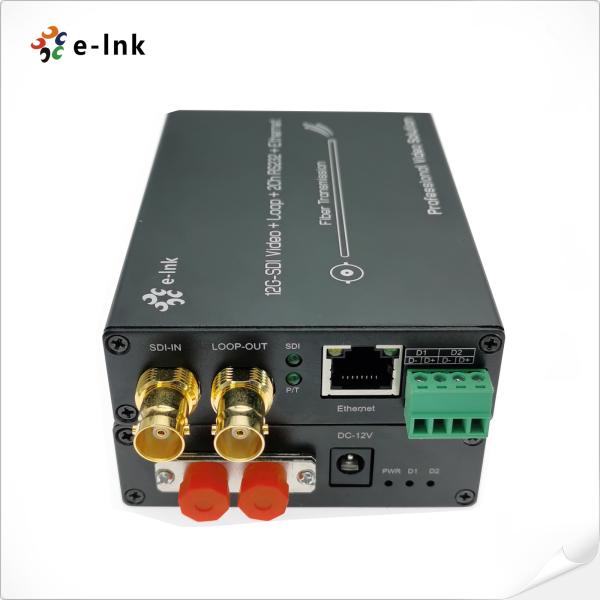

SDI Over Fiber Optic Extender Panel & Interface

LNK-12GSDI Series Fiber Converter with 4K UHD Video, Loop-out, Gigabit Ethernet & RS485

SDI Over Fiber Optic Extender Technical Indexes

Formats Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible Compatible With DVB-ASI and AES10 (MADI)
Input 1 x 12G-SDI on BNC
Output 2 x FC optical fiber
1 x 12G-SDI loop-out on BNC
Supported Resolution HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range 3840*2160@60Hz
Input cable specification ≤70m@12G SDI Belden 1694A
Output cable specification ≤60m@12G SDI Belden 1694A
Ethernet 10/100/1000Mbps
Data type 2Ch Backward RS485
Optical transmission bandwidth 270MHz～12GHz
Power 12 VDC
Power Consumption 6 W (Max.)
Dimensions (LxWxH) 117 x 80 x 24 (mm)
Operating Temperature -10℃～70℃
Storage Temperature -40℃～85℃

SDI Over Fiber Optic Extender Application

LNK-12GSDI Series Fiber Converter with 4K UHD Video, Loop-out, Gigabit Ethernet & RS485
