12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485

SDI Over Fiber Optic Extender Overview

The LNK-12GSDI-1V2R1GE series is a high-performance 12G-SDI optical transceiver .

It supports one channel of 12G-SDI video (with embedded audio) , one channel of Gigabit Ethernet ,

and two channels of reverse RS485 data transmission over a single fiber optic cable,

enabling long-distance transmission and providing 12G-SDI local loopback monitoring .

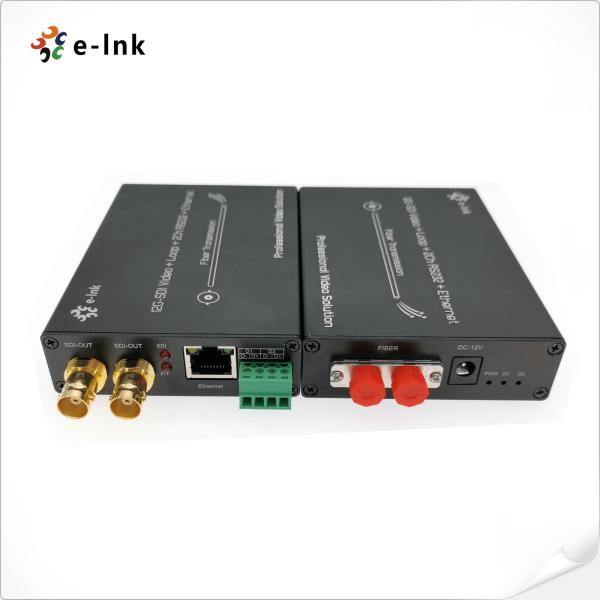

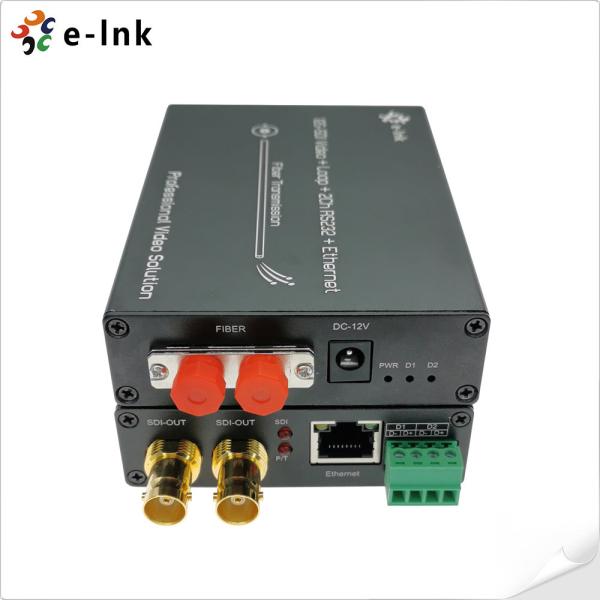

This product includes one transmitter and one receiver , supporting a variety of video formats,

including HDTV 4K×2K (3840×2160@60Hz), 1080P, 1080i, and 720P , ensuring ultra-high-definition

image quality and low latency. It is ideal for broadcasting, studios, sports events, medical imaging,

video conferencing, and high-end surveillance systems.

SDI Over Fiber Optic Extender Features

• 【Multi-Channel Audio Integration】
  Each SDI channel incorporates 8-channel embedded audio capability, supporting professional broadcast audio requirements without separate audio cabling infrastructure.
• 【Intelligent Signal Optimization】
  Featuring automatic cable equalization technology that maintains signal integrity across varying cable conditions, ensuring consistent video quality throughout transmission.
• 【Camera System Integration】
  Direct compatibility with 12G/6G/3G-SDI camera systems enables seamless integration into existing broadcast and production environments.
• 【Advanced Fiber Technology】
  Utilizing WDM/CWDM/DWDM fiber optic techniques with superior dynamic range, enabling uncompressed broadcast-level transmission up to 80km.
• 【4K Broadcast Performance】
  Supporting 4K*2K(3840*2160@60Hz) and all HD/SD formats including 1080P, 1080I, 720P for complete broadcast and production workflow compatibility.

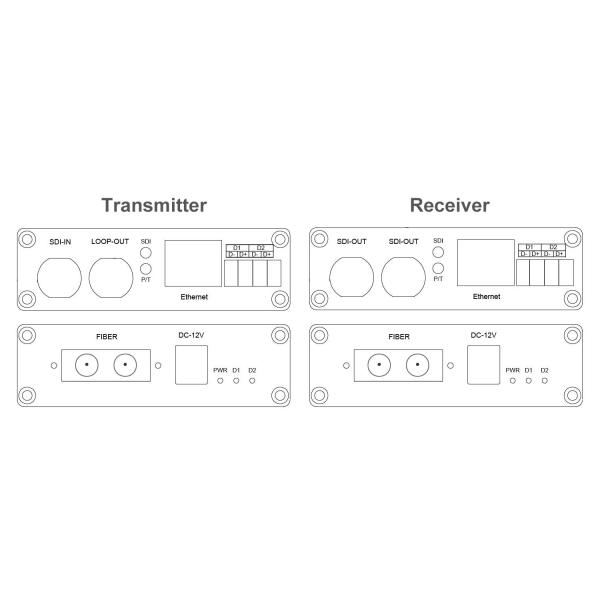

SDI Over Fiber Optic Extender Panel & Interface

SDI Over Fiber Optic Extender Technical Indexes

SDI Over Fiber Optic Extender Application
