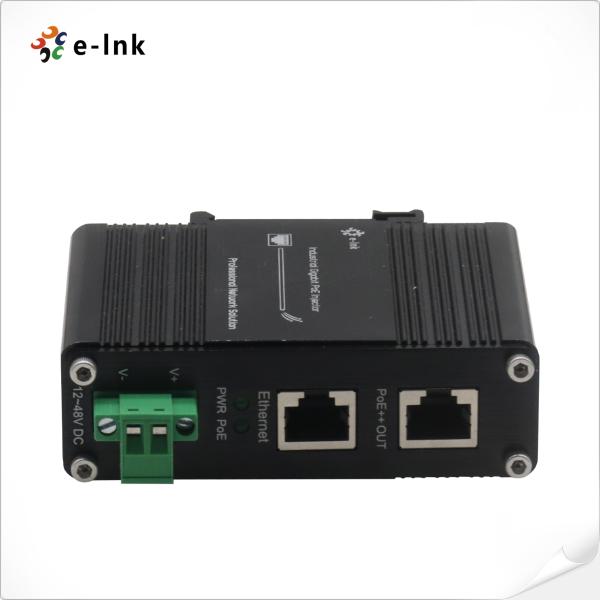

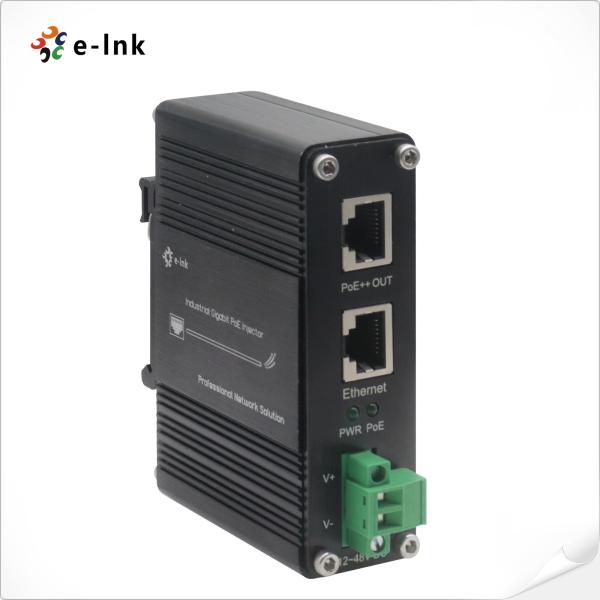

Industrial Gigabit PoE+ Injector IEEE 802.3bt 95W with Voltage Booster
Industrial Gigabit PoE+ Injector IEEE 802.3bt 95W with Voltage Booster
Industrial Gigabit PoE+ Injector IEEE 802.3bt 95W with Voltage Booster
Industrial Gigabit PoE+ Injector IEEE 802.3bt 95W with Voltage Booster
Specifications
Brand Name :
E-link
Model Number :
LNK-INJ-48-95W
Certification :
CE, FCC, RoHS, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 PCS
Price :
$75-$89
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
2000pcs/month
Delivery Time :
3-7 days
Packaging Details :
Gigabit PoE Injector Standard Export Package
Maximum Distance :
Up to 100 meters using Cat 5 UTP
Input Power :
12-48V DC via terminal block
PoE Output :
Supports IEEE 802.3bt, 802.3at, and 802.3af PoE standards, with up to 95W PoE at 48VDC
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Surge Protection :
1KV protection for RJ45, 500V for power input, 4KV/8KV ESD protection
Mounting Options :
Suitable for both DIN-Rail and wall-mount installations
Description

Industrial Gigabit PoE+ Injector IEEE 802.3bt 95W with Voltage Booster

Overview

The LNK-INJ-48-95W is an industrial-grade, single-port Gigabit PoE+ injector designed to

deliver up to 95W of power using IEEE 802.3bt / LTPoE++ standards. With a wide 12-48V

DC input and built-in voltage booster, it allows for seamless connection of PoE devices

such as cameras and access points to a non-PoE LAN switch within a 100-meter range.

Both the Ethernet port (for switch connection) and the PoE output port (for powering

devices) support 10/100/1000Base-T and comply with IEEE 802.3ab standards, ensuring

high-speed, reliable data and power transmission. This ruggedized injector is ideal for

industrial applications, providing robust performance even in demanding environments.

Features

1 RJ45 Ethernet data input port + 1 RJ45 PoE output port (Data + Power)

Supports 95W LTPoE++ Power Sourcing Equipment

Fully compliant with IEEE 802.3at/bt PoE end-span/mid-span PSE

Compatible with 10/100/1000Base-TX Ethernet speeds

Includes multiple LED indicators for PoE status monitoring

12-48V DC wide input range with built-in power booster function

Delivers up to 95W PoE output at 48VDC, 95W at 24VDC, and 60W at 12VDC

Supports both DIN rail and wall-mount installation options

Built for extreme conditions with an operating temperature range of -40°C to 80°C

Technical Indexes

Ethernet

Standards:

IEEE802.3 10 BASE-T Ethernet

IEEE802.3u 100 BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE802.3 x Flow Control

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

Twisted-pair cable up to 100 meters (328ft)

10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A

100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A

1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A

Maximum Distance:

Cat5 UTP up to 100m

Connector:

2x RJ45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

100W Max.

Power over Ethernet:

Standard:

IEEE 802.3bt 4-pair Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

RJ45

Power Pin Assignment

Data provide over pairs 1,2TX and 3,6RX

Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)

PoE Budget:

Up to 95-watt PoE budget (48VDC)

Up to 95-watt PoE budget (24VDC)

Up to 60-watt PoE budget (12VDC)

LED Indicators:

Power:

Power Status

PoE:

PoE Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

IP40 Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Standard Accessories

Package Contents

LNK-INJ-48-95W

User's manual

Wall-mount kit

DIN-mount kit

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500V

ESD: 4KV/8KV

Ordering Information

Model

Description

LNK-INJ-48-95W

Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector

with 12~48V DC wide range power input

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.


Application
