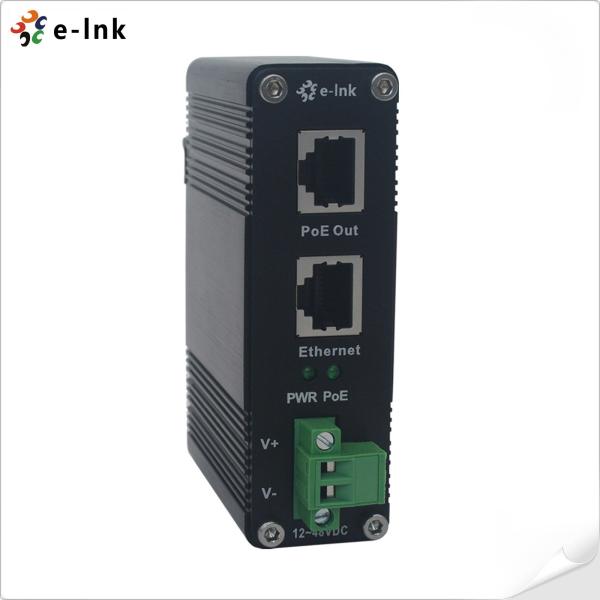

12~48V DC Input Power over Ethernet Industrial Gigabit PoE+ Injector
12~48V DC Input Power over Ethernet Industrial Gigabit PoE+ Injector
12~48V DC Input Power over Ethernet Industrial Gigabit PoE+ Injector
12~48V DC Input Power over Ethernet Industrial Gigabit PoE+ Injector
Specifications
Brand Name :
E-link
Model Number :
LNK-INJ301-30
Certification :
CE, ISO9001, RoHS, FCC
Place of Origin :
Guangdong, China
MOQ :
1 piece
Price :
$49-$55
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
2000pcs/month
Delivery Time :
2-7 days
Packaging Details :
Gigabit PoE Injector Standard Export Package
Power Input :
12-48V DC (Terminal Block)
Ethernet Standards :
IEEE802.3af/at Power over Ethernet (PoE)
Maximum Power Output per Port :
Up to 30W (Alternative B Mode)
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Power Consumption :
Maximum 36W
PoE Pin Assignment :
4/5(+) and 7/8(-)
Description

12~48V DC Input Power over Ethernet Industrial Gigabit PoE+ Injector

Overview

The LNK-INJ301-30 is a ruggedized Gigabit High Power PoE Injector designed to power

IEEE 802.3af/at PoE devices, such as cameras and access points, from a non-PoE LAN

switch within a 100-meter range. Both the Ethernet port (to connect to the switch) and the

PoE output port (to power PoE devices) support 10/100/1000Base-T speeds and comply

with IEEE 802.3ab and 802.3at standards. This PoE injector offers a flexible power

solution, with an input voltage range of 12-48VDC, making it ideal for high-availability

applications in harsh environments.

Features

12-48V DC power input

1 RJ45 Ethernet data input port + 1 RJ45 Power over Ethernet (PoE) output port

(Data + Power)

Compliant with IEEE802.3at PoE+ Power Sourcing Equipment

Supports 10/100/1000Base-TX Ethernet speeds

Includes a variety of LED indicators for PoE status monitoring

Rugged design with an operating temperature range of -40°C to 80°C (-40°F

to 176°F)

Compact dimensions: 95 x 70 x 30 mm

Durable aluminum alloy housing

Compatible with DIN-rail and wall-mount installation options

Technical Indexes

Ethernet

Standards:

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

10/100/1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Connector:

2x RJ45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

36W Max.

PoE (Power over Ethernet)

Standard:

IEEE802.3af/at

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

Max. Power per Port:

30W Max per port (Alternative B Mode)

LED Indicators:

Power:

Power Status

PoE:

PoE Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500V

ESD: 4KV/8KV

Ordering Information

Model

Description

LNK-INJ301-30

12~48VDC Power Input Industrial Gigabit PoE+ Injector

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately

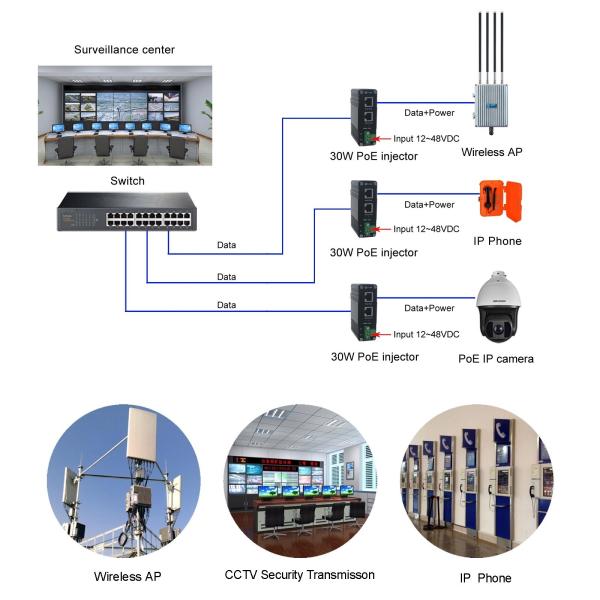

Application

12~48V DC Input Power over Ethernet Industrial Gigabit PoE+ Injector
