L2+ Managed Rack mount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP PoE Switch

L2+ Managed 24-Port PoE Switch Overview

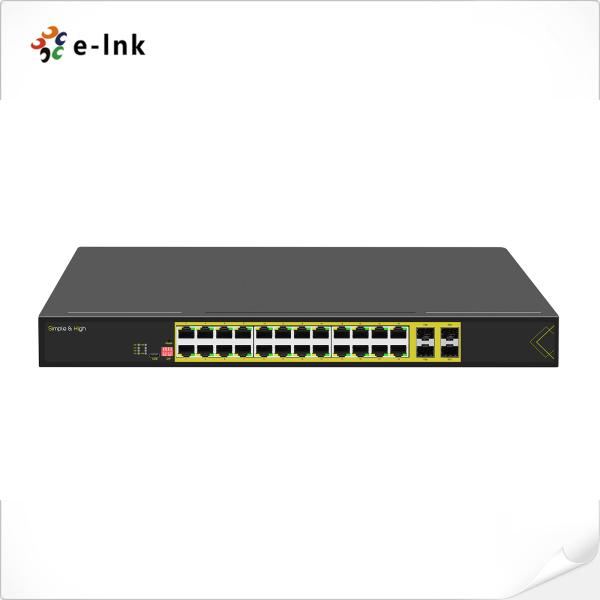

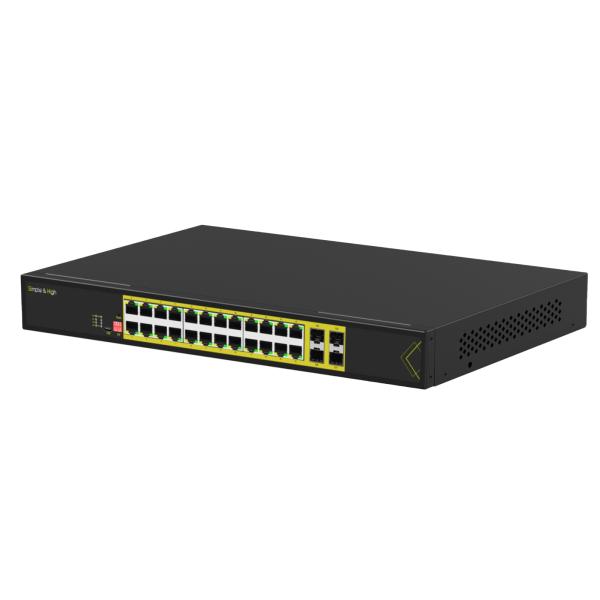

LNK-424M-SFP series is the L2+ managed rack mount 24-port 10/100/1000Base-T 802.3at PoE + 4-port

1000Base-X SFP Ethernet switch. The switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports

10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port

supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product

is a great choice for integrating networks consisting of network devices such as IP cameras and wireless

access points between remote locations.

L2+ Managed 24-Port PoE Switch Features

• 24-Port Gigabit Ethernet Support:
  Includes 24× 10/100/1000Base-T RJ45 ports and 4× 1000Base-X SFP fiber slots for flexible connectivity.

• Auto-Adaptive RJ45 Ports:
  Each RJ45 port supports 10/100/1000Mbps speeds with auto-negotiation, full/half-duplex mode switching, and auto MDI/MDIX crossover.

• IEEE 802.3af/at PoSCompliant:
  Delivers Power over Ethernet (PoE) support for simplified deployments and reduced cabling requirements.

• USB-C Management Interface:
  Features a USB-C port for convenient out-of-band management, eliminating the need for traditional RS232 serial access.

• Jumbo Frame Support:
  Supports jumbo frames up to 9KB for improved large data transfer efficiency.

• Energy-Efficient Ethernet (EEE):
  Compliant with IEEE 802.3az standards to reduce power consumption during low data activity.

• 1U Rack-Mountable Design:
  Designed for standard 19-inch rack installation with 1U form factor, ideal for space-constrained environments.

L2+ Managed 24-Port PoE Switch Application

• IP Surveillance
• Wireless Access Point (WAP) Connectivity
• Office & Enterprise Networks
• Fiber Uplink & Backbone Expansion

L2+ Managed 24-Port PoE Switch Technical Indexes

L2+ Managed 24-Port PoE Switch Ordering Information

L2+ Managed 24-Port PoE Switch Application

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing

product consultation, remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
