Specifications
Brand Name :
E-Link
Model Number :
LNK-424M-SFP series
Certification :
CE/FCC/Rohs/ISO9001
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiate with the seller
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Per month
Delivery Time :
2-5 Working Days
Packaging Details :
Managed Rack Mount SFP Ethernet Switch Standard Export Package
Ethernet Port: :
24 x 10/100/1000Base-T RJ45
Optical Port: :
4 x 1000Base-X SFP
Management Port: :
1 x USB-C
Input Power: :
AC 100~240V
Dimensions: :
440mm x 300mm x 45mm
Mounting Options: :
Rackmount
Description

L2+ Managed Rack mount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP PoE Switch

Overview

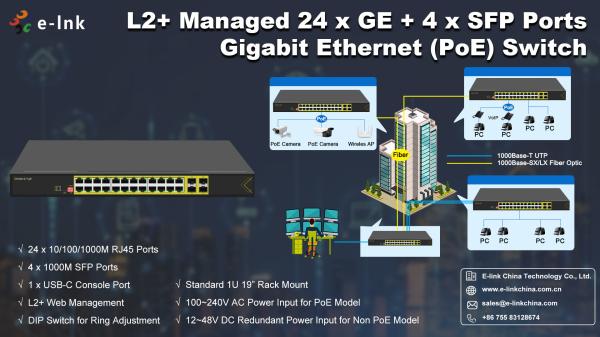

LNK-424M-SFP series is the L2+ managed rack mount 24-port 10/100/1000Base-T 802.3at PoE + 4-port

1000Base-X SFP Ethernet switch. The switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports

10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port

supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product

is a great choice for integrating networks consisting of network devices such as IP cameras and wireless

access points between remote locations.

Features

  • Support 24x10/100/1000Base-T + 4x1000Base-X SFP
  • 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
  • IEEE802.3af/at compliant
  • Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
  • 9K Bytes Jumbo Frame
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Supports 1U 19” Rack mount installation

​Application

  • IP Surveillance
  • Wireless Access Point (WAP) Connectivity
  • Office & Enterprise Networks
  • Fiber Uplink & Backbone Expansion

24-Port PoE+ Gigabit Switch + 4 SFP - 802.3at L2+ Managed Rack Mount for Remote Sites

Technical Indexes

Ethernet
Standards: IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX/FX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-X
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory: 12M bits
Processing Type: Store-and-Forward
Backplane bandwidth 110Gbps
Max Packet Length: 9K Bytes Jumbo Frame
Address Table Size: 8K MAC Addresses
Interface
Ethernet Port: 24 x 10/100/1000Base-T RJ45
Optical Port: 4 x 1000Base-X SFP
Management Port: 1 x USB-C
PoE (Power over Ethernet)
Standard: IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Port: RJ45
Power Pin Assignment 1/2(+), 3/6(-), 4/5(+), 7/8(-)
PoE Budget: Up to 400-watt PoE budget
Environmental
Operating Temperature: 0°C to 55°C (-40°F to 176°F)
Storage Temperature: -40°C to 75°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: AC 100~240V
Power Consumption: 400W Max.
DIP Switch

4-digit DIP switch function

24-Port PoE+ Gigabit Switch + 4 SFP - 802.3at L2+ Managed Rack Mount for Remote Sites

 DIP Function Settings
SW 1 Reserved ON - Reserved OFF - Reserved
SW 2 Ring Management ON - Disabled OFF - Enabled
SW 3 Reserved ON - Reserved OFF - Reserved
SW 4 Reserved ON - Reserved OFF - Reserved
LED Indicators:
PWR: Power Status
SYS System Status
PoE: Link/Activity, 1~24
Fiber: Gigabit SFP Port: F25~F28
Hardware:
Dimensions (L x W x H): 440mm x 300mm x 45mm
Weight: 4.0Kg
Casing: Metal Case
Mounting Options: Rackmount
Management Features
System Status Device Information, Device Status
Port Config Port Config, DDM, Rate Control, Storm Control, PoE
Link Layer

QoS, VLAN, MAC VLAN, VLAN MAP, IP VLAN, Pro VLAN,

IGMP Snooping, Static Multicast List, LLDP,

Port Isolate, Port Protect,

MAC ACL, IP ACL, Black & White Lists
Link Backup ERPS, Port Trunking, RSTP, LACP
Access Control

User Password, Access Control,

Port Authentication, Authentication DB,

MAC Port Locking, MAC Learn Limit
Remote Monitor SNMP Config
Statistics Receive Frame, Send Frame, Sum Statistics, MAC Address List
Network Diagnosis Port Mirroring, Network Diagnosis
Management

Time Config, Device Address, System Information, System Log,

File Management
Default IP 192.168.40.253
Default User Name admin
Default Password admin
Regulatory Approvals
ISO9001, CE, RoHS, FCC

Ordering Information

Model Description
LNK-424MP-SFP L2+ Managed Rack mount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP PoE Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options ► Rack mount, mounting clip is included.
Power Options ►Power Cord is included
