High-Speed 10G PCIe Network Card with 2.5G/5G/10G over Cat 5e/6/6a Cables
High-Speed 10G PCIe Network Card with 2.5G/5G/10G over Cat 5e/6/6a Cables
High-Speed 10G PCIe Network Card with 2.5G/5G/10G over Cat 5e/6/6a Cables
High-Speed 10G PCIe Network Card with 2.5G/5G/10G over Cat 5e/6/6a Cables
High-Speed 10G PCIe Network Card with 2.5G/5G/10G over Cat 5e/6/6a Cables
High-Speed 10G PCIe Network Card with 2.5G/5G/10G over Cat 5e/6/6a Cables
High-Speed 10G PCIe Network Card with 2.5G/5G/10G over Cat 5e/6/6a Cables
High-Speed 10G PCIe Network Card with 2.5G/5G/10G over Cat 5e/6/6a Cables
High-Speed 10G PCIe Network Card with 2.5G/5G/10G over Cat 5e/6/6a Cables
High-Speed 10G PCIe Network Card with 2.5G/5G/10G over Cat 5e/6/6a Cables
Specifications
Brand Name :
E-Link
Model Number :
LNK-NIC-10GE
Certification :
CE/FCC/Rohs/ISO9001
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiate with Seller
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 per month
Delivery Time :
2-5 Working Days
Packaging Details :
Gigabit Ethernet network adapter Standard Export Package
Transmission medium :
Copper
Power Consumption :
4.7W
Operating Temperature :
0℃ to 55℃ (32℉ to 131℉)
Size :
125 x 125 x 20 mm
Weight :
90g
Bus Type :
PCIe v3.0 x4，compatible with x8, x16
Description

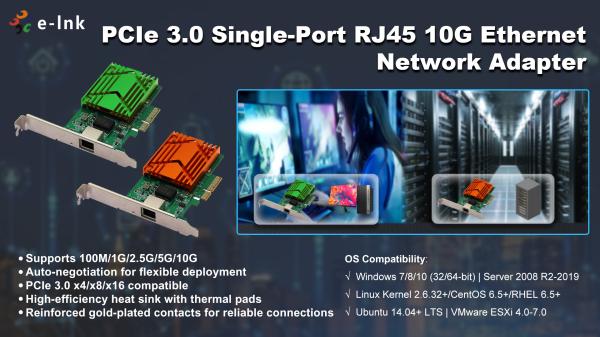

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter

Overview

LNK-NIC-10GE is a high-performance PCI Express x4 single-port 10 Gigabit Ethernet network

adapter, based on the reliable xxx chipset. It is fully compatible with PCIe x4, x8, and x16 slots,

offering flexible integration into a wide range of systems.

This five-speed NIC supports 100Mbps to 10Gbps transmission over standard twisted pair cables.

It delivers up to 10Gbps over 100 meters using Cat 6a, and supports 5Gbps over Cat 5e or Cat 6.

Compliant with IEEE 802.3an and 802.3bz standards, it supports 100BASE-TX, 1000BASE-T,

2.5GBASE-T, 5GBASE-T, and 10GBASE-T.

Integrated PCIe, MAC, and PHY functions ensure space- and power-efficient performance.

Advanced features include MSI/MSI-X, RSS, LSO, and IPv4/IPv6 checksum offloading, minimizing

CPU usage. The card also supports jumbo frames up to 16KB for high-throughput applications.

Features

  • PCIE x 4 Hardware Interface.
  • Support systems: Windows, Linux, Ubuntu, etc
  • Windows 7/8/8.1/10
  • Windows Server 2008 R2/2012 R2/2016 R2/2019 R2
  • Linux Stable Kernel version 2.6.32/3.x/4.x or later
  • Linux CentOS/RHEL 6.5 / 7.x or later
  • Ubuntu 14.x/15.x/16.x or later
  • VMware ESX/ESXi 4.x/5.x/6.x or later
  • 10/100/1000M/2.5G/5G/10Gbps data rate
  • Jumbo frame support up to 16 KB.
  • Extensive software support: Windows and Linux drivers; UEFI and PXE remote boot.
  • MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload.
  • Brown and Green color optional

Technical Indexes

Transmission medium Copper
Copper Type

10GBase-T:Cat 7 or higher up to 30m

5GBase-T:Cat 7 or higher up to 30m

2.5GBase-T:Cat 6A or higher up to 100m

1GBase-T:Cat 6 or higher up to 100m

100MBase-T:Cat 6 or higher up to 100m
Baffle Height Half & Full height
Power Consumption 4.7W
OS Support

Windows 7/8/8.1/10

Windows Server 2008 R2/2012 R2/2016 R2/2019 R2

Linux Stable Kernel version 2.6.32/3.x/4.x or later

Linux CentOS/RHEL 6.5 / 7.x or later

Ubuntu 14.x/15.x/16.x or later

VMware ESX/ESXi 4.x/5.x/6.x or later
Bus Type PCIe v3.0 x4,compatible with x8, x16
Data rate per port 10/100/1000M/2.5G/5G/10Gbps data rate
Connector 1*10G RJ45
Standards compliant

IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair

IEEE 802.3bz 2.5/5GBASE-T

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.1Q VLANs

IEEE 802.3x Full Duplex and flow contro

IEEE 802.3az -

Energy Efficient Ethernet (EEE)
iSCSI No
WoL No
Jumbo Frames Yes
DPDK Yes
PXE Yes
FCoE No
Operating Temperature 0℃ to 55℃ (32℉ to 131℉)
Storage Temperature -40℃ to 70℃ (-40℉ to 158℉)
Storage Humidity Maximum: 90% non-condensing relative humidity at 35℃
Size 125 x 125 x 20 mm
Weight 90g
LED indication

Power: Light on when power on;

LNK/ACT: Light on when connected, light blinks when transfer data.

Ordering Information
Model Description
LNK-NIC-10GE PCIE x4 Single-port RJ45 10G Ethernet Network Adapter
