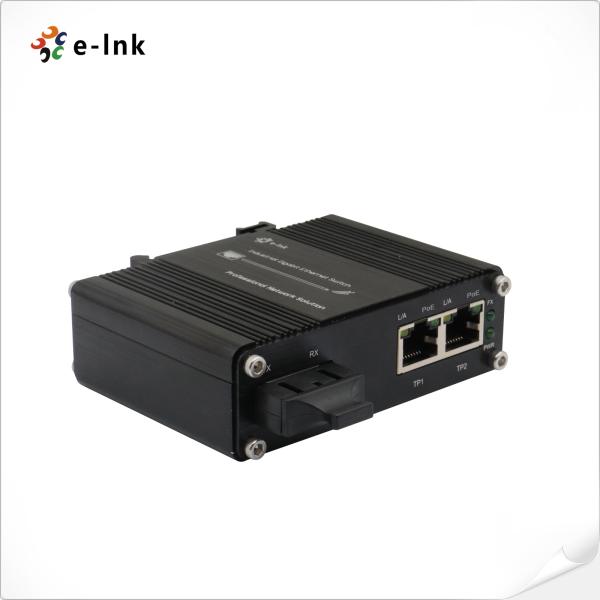

Industrial 1-Port 1000Base-X to 2-Port 10/100/1000Base-T 30W PoE+ Media Converter -40~75°C
Industrial 1-Port 1000Base-X to 2-Port 10/100/1000Base-T 30W PoE+ Media Converter -40~75°C
Industrial 1-Port 1000Base-X to 2-Port 10/100/1000Base-T 30W PoE+ Media Converter -40~75°C
Industrial 1-Port 1000Base-X to 2-Port 10/100/1000Base-T 30W PoE+ Media Converter -40~75°C
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1200GP-SFP
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
$75-$95
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
PoE Fiber Media Converter Standard Export Package
Ethernet Ports :
2× 10/100/1000BASE-T RJ45, Auto MDI/MDI-X
Fiber Port :
1× SC 1000BASE-X
PoE Output :
Up to 30W, IEEE802.3af/at compliant
Enclosure :
Aluminum, 95×70×30 mm, 0.25 kg
Operating Temp :
-40°C to 75°C
Mounting :
DIN-Rail & Wall-mount
Description

Industrial 1-Port 1000Base-X to 2-Port 10/100/1000Base-T 30W PoE+ Media Converter -40~75°C

Overview

The LNK-IMC1200GP Series is an industrial-grade media converter that bridges high-speed

1000Base-X fiber to 2-Port 10/100/1000Base-T Ethernet. Equipped with 30W PoE+ support,

it powers devices such as IP cameras and wireless access points directly over Ethernet.

Designed for rugged environments, the unit operates in extreme temperatures from -40°C

to 75°C, ensuring continuous performance in industrial and outdoor settings. With flexible

mounting options and durable aluminum housing, it offers an ideal solution for expanding

and integrating networks in demanding conditions.

Features

Dual Ethernet Ports – 2× 10/100/1000BASE-T RJ45 ports for flexible and high-speed data

connectivity.

High-Power PoE+ – Delivers up to 30W PoE+, meeting IEEE802.3at standards for

powering devices over Ethernet.

Flexible Fiber Connectivity – 1000BASE-X SC fiber port supports high-speed, long-distance

fiber connections.

Industrial Durability – Built with rugged aluminum casing and capable of operating in

temperatures ranging from -40°C to +75°C.

Energy Efficient – Compliant with IEEE 802.3az for reduced energy consumption.

Easy Installation – Mounts easily on DIN rails or wall-mounts for flexible deployment options.

Technial Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

2 x RJ45

Optical Port:

1 x SC 1000Base-X

Electrical and Mechanical

Input Power:

12~48VDC, 2-pin terminal block

Output Power

48VDC

Power Consumption:

65W Max.

LED Indicators:

PWR:

Power Status

L/A:

Data LINK Status

POE:

PoE Status

100M/1000M:

Fiber LINK Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

LNK-IMC1200GP

Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m

LNK-IMC1200GP-20

Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km

LNK-IMC1200GPS-20

Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.

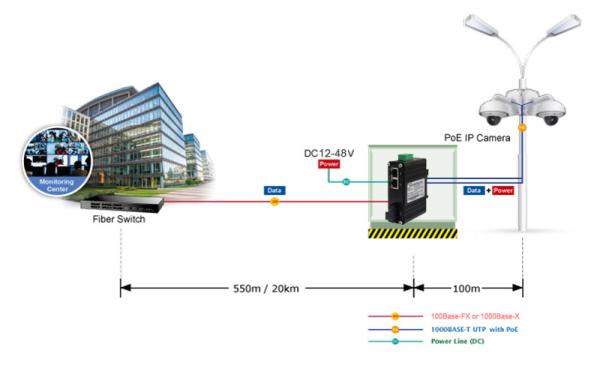

Application

Industrial 1-Port 1000Base-X to 2-Port 10/100/1000Base-T 30W PoE+ Media Converter -40~75°C
